Construction Machinery HZS75 E Perfect Concrete Mixing Plant Design

FOB Price

US$ 72,000 - 75,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Power Type	Electric
Place of Origin	Shandong, China	Brand Name	JANEOO
Model Number	HZS 75E	Power(W)	150kW
Dimension(LWH)	190001800019000	Weight	22 t
Certification	ISO9001;CE;CU-TR;CCC	Warranty	ONE YEAR
After-sales Service Provided	Engineers available to service machinery overseas

construction machinery HZS75 E perfect Concrete Mixing Plant Design

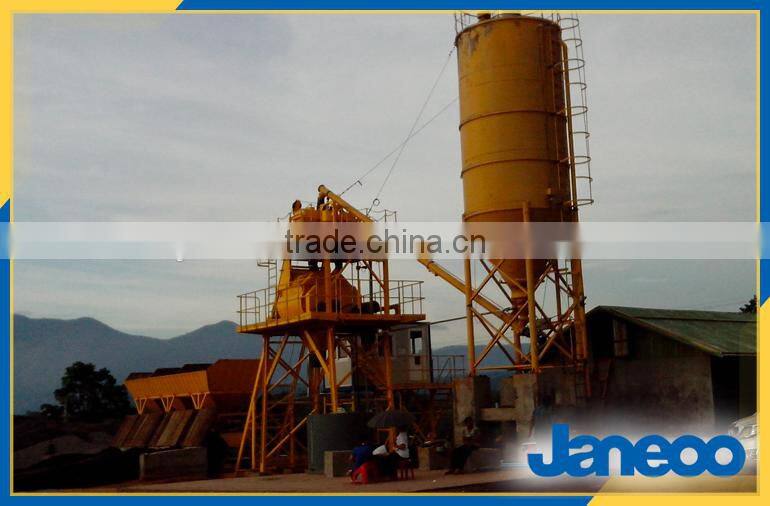

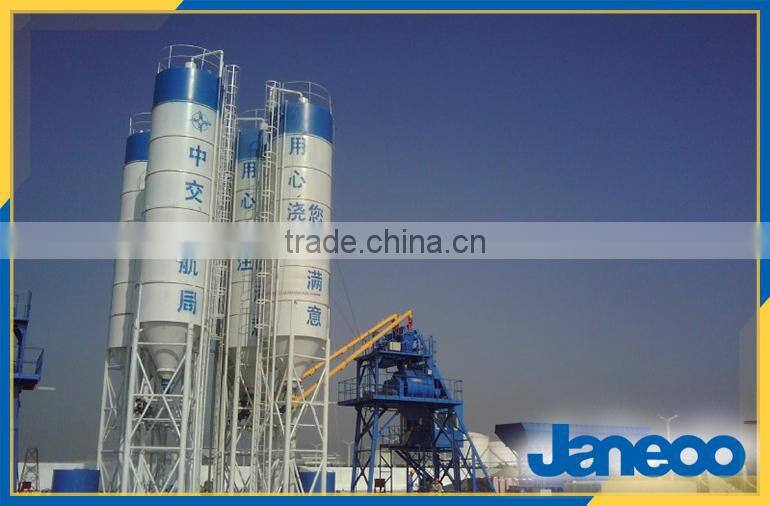

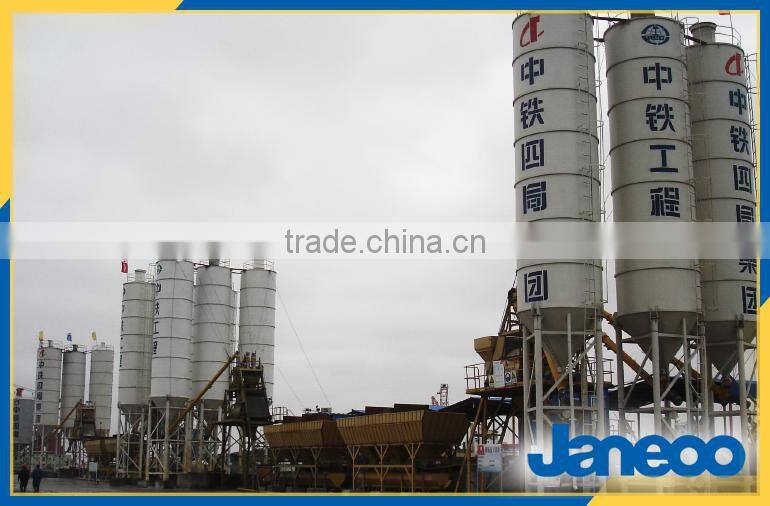

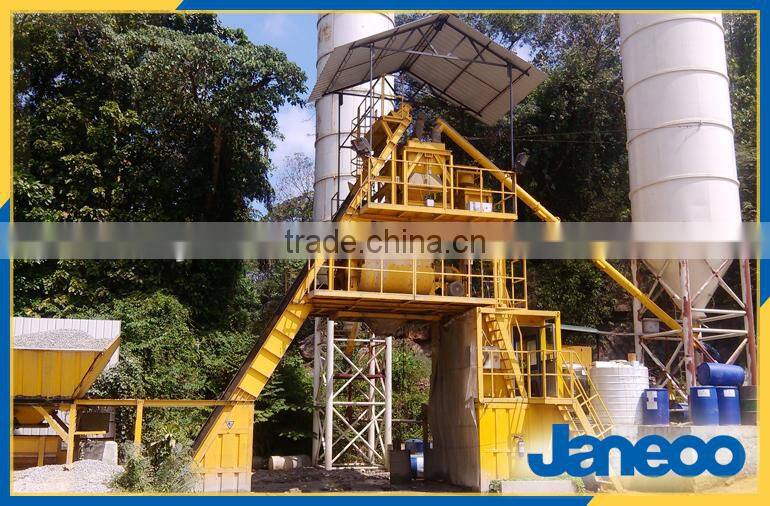

1. Product Show:

2. Product Specification:

Model		HZS25E	HZS40E	HZS50E	HZS75E
Theoretical productivity(m³/h)		25	40	50	75
Mixer	Model	JS500	JS750	JS1000	JS1500
	Power(kW)	18.5	30	2x18.5	2x30
	Discharge capacity(m³)	0.5	0.75	1	1.5
	Max.Agg.size(Grave/pebble mm)	≤60/80	≤60/80	≤60/80	≤60/80
Agg.bins	Volume (m³)	4	4	8	8
Hoisting motor power (kW)		5.5	7.5	18.5	22
Scales capacity and accuracy	Aggregate (kg)	1500±2%	1500±2%	2500±2%	3000±2%
	Cement (kg)	300±1%	500±1%	500±1%	800±1%
	Fly ash (kg)	—	—	150±1%	200±1%
	Water (kg)	150±1%	200±1%	200±1%	300±1%
	Additive (kg)	20±1%	20±1%	20±1%	30±1%
Discharging height (m)		4.0	4.0	4.0	4.0

3. Other Model Products and Application:

4. Packing:

5. Company Information:

6. Our Advantages:

7. Main Buying Procedure:

Enquiry	contact us by email, phone call, fax, Instant tools (Trademanager, MSN, Skype) and let us know your enquiry.
Discussion	specify the items you desire, confirm specification; OEM/ODM consultation.
Quotation	Prices offered and accepted
Order	order as per contract or discussion
Proforma	Proforma invoice offered to double confirm the order for both-side records
Payment settled
Complete	Order completed under our arrangement
Ship	Goods shipped as per contracted term
Arriving	Goods arrive at local port or warehouse, depending on contracted term
