Home > Products > Printing Machine > YT- B Non Woven Printing Machine

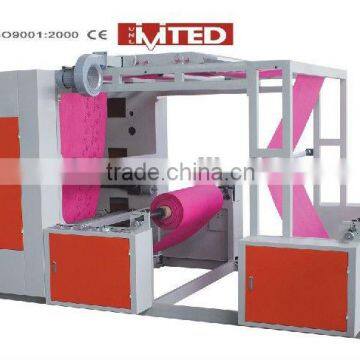

YT- B Non Woven Printing Machine
- Shnghai/Ningbo
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Other, flexo printer | |
| Place of Origin | Zhejiang, China | Brand Name | MTED | |
| Model Number | YT-B | Usage | Other, Non-woven Printer | |
| Automatic Grade | Automatic | Gross Power | 17 | |
| Dimensions(L*W*H) | 4200x2400mm |
Product Description
Specifications
1.easy controll2.high output and stability
3.flexible starting accurate color register
4.Non Woven Printing Machine
YT-B Non Woven Printing Machine
Use
Suitable for printing such packing materials as non-woven fabric, It is a kind of ideal printing equipment for producing supermarket handbag, vest bag and clothes bag, etc.
Function
1 Easy operation, flexible starting, accurate color register.
2 The meter counter an set printing quantity according to the requirement,Stop the machine automatically at the quantity,Stop when the material is cut off.
3 Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink automatically after lifting.
4 The printing ink is spread by the anilox cylinder with even ink color.
5 Reliable drying system coordinated with high speed rotation, it will automatically break circuit when the machine stops.
6 360°continuous and adjustable longitudinal register device.
7 The import frequency controller of motor speed adapts to different printing speed.
8 there are inching/stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameters
Model | 21200 | 21400 | 31200 | 31400 | 41200 | 41400 |
Max.Width of Printing Material (mm) | 1200 | 1400 | 1200 | 1400 | 1200 | 1400 |
Max.printing Width(mm) | 1160 | 1360 | 1160 | 1360 | 1160 | 1360 |
Length Range of Printing Product(mm) | 191-914 | |||||
Max.Diameter of Roll Material(mm) | 1000 | |||||
Printing Speed (m/min) | 5-50 | |||||
Thickness of plate(mm) (including Two-sided Glue Paper) | 2.38/3.94 | |||||
Power Supply(V) | 380 (three-phase four-wire power cable) | |||||
Total Power(kw) | 6 | 8 | 11 | 12 | 15 | 17 |
Machine Weight(kg) | 700 | 800 | 1200 | 1300 | 1500 | 1700 |
Incasement Weight(kg) | 800 | 900 | 1400 | 1500 | 1700 | 1900 |
Machine Dimensions (mm) | 4200x2200 x2200 | 4200x2400 x2200 | 4200x2200 x2200 | 4200x2200 x2200 | 4200x2200 x2800 | 4200x2400 x2800 |
