YT PP Printing Machine
- Shnghai/Ningbo
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Letterpress | |
| Place of Origin | Zhejiang, China | Brand Name | MTED | |
| Model Number | YT | Usage | Paper Printer | |
| Automatic Grade | Automatic | Gross Power | 18.5kw | |
| Dimensions(L*W*H) | 4200*2400*2400mm |
Product Description
Specifications
1.Easy operation2.PP Printing Machine
3.Reliable drying system
4.Accurate colour register
5.Pneumatic printing cylinder

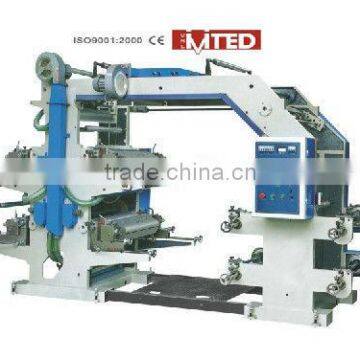

YT PP Printing Machine
Use:
This machine is suitable for printing such packing materials as polyethylene, polypro-pylene plastic bag, glass paper and roll paper, etc.And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Feature:
1.Easy operation, flexible starting,accurate colour register.
2.The meter counter can set printing quantity according to the requirements, Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.
4.The printing ink is spread by the knurled cylinder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.3600continuous and adjustable longitudinal refjster device.
7.The imported frequency control of motor speed adapts to different printing speed.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy oper ate the machine when the plate is installed.
Main Technical Parameter:
Model | YT-4600 | YT-4800 | YT-41000 | YT-41200 | YT-41400 |
Max.Width of Printing Material (mm) | 600 | 800 | 1000 | 1200 | 1400 |
Max.printing Width(mm) | 560 | 760 | 960 | 1160 | 1360 |
Length Range of Printing Product(mm) | 191-914 | 191-914 | 191-914 | 191-914 | 191-914 |
Max.Diameter of Roll Material(mm) | 450/1000 | 450/1000 | 450/1000 | 450/1000 | 450/1000 |
Printing Speed (m/min) | 5-50 | 5-50 | 5-50 | 5-50 | 5-50 |
Thickness of plate(mm) (including Two-sided Glue Paper) | 2.38/3.94 | 2.38/3.94 | 2.38/3.94 | 2.38 | 2.38 |
Power Supply(V) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) |
Total Power(kw) | 11kw | 12.5kw | 13.5kw | 16.5kw | 18.5kw |
Machine Weight(kg) | 3000kg | 3500kg | 4000kg | 4200kg | 4500kg |
Incasement Weight(kg) | 3200 | 3700 | 4200 | 4500 | 4800 |
Machine Dimensions (mm) | 4200x1600 x2400 | 4200x1800 x2400 | 4200x2000 x2400 | 4200x2200 x2400 | 4200x2400 x2400 |
