TY PP Flexographic Printing Machine

FOB Price

USD $7,000 - $13,000 / Set

1 Set(Min. Order)

Port Shanghai / Ningbo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Plate Type	Letterpress
Place of Origin	Zhejiang, China	Brand Name	MTED
Model Number	YT	Usage	Paper Printer
Automatic Grade	Automatic	Gross Power	8kw
Dimensions(LWH)	230018602200mm

Product Description

Specifications

1.Easy operation
2.flexible starting
3.accurate colour register
4.PP Flexographic Printing Machine

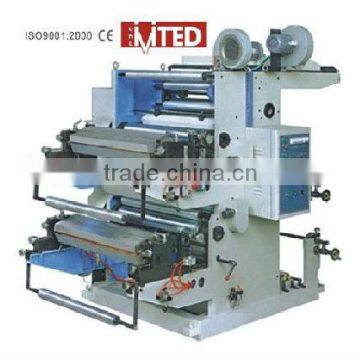

YT PP Flexographic Printing Machine

Use

Suitable for printing such packing materials as food paper package,printed film.cellophane,non-woven fabric and roll paper etc.It’s a kind of ideal printing equipment for wrapper.

Function:

1 Easy opeartion,flexible starting,accurate color register.

2 The meter counter an set printing quantity according to the requirement,Stop the machine automatically at the quantity,Stop when the material is cut off.

3 Pneumatic printing cylinder lift and lower,it will stir the printingink automatically after lifting.

4 The printing ink is spread by the anilox cylinder with even ink color.

5 Reliable drying system coordinated with high speed rotation,it will automatically break circuit when the machine stops.

6 360°continuous and adjustable longitudinal register device.

7 The import frequency controller of motor speed adapts to differet printing speesd.

8 there are Jogging/stopping buttons on the plate foller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Model	YT-2600	YT-2800	YT-21000	YT-21200	YT-21400
Max.Width of Printing Material (mm)	600	800	1000	1200	1400
Max.printing Width(mm)	560	760	960	1160	1360
Length Range of Printing Product(mm)	191-914	191-914	191-914	191-914	191-914
Max.Diameter of Roll Material(mm)	450/1000	450/1000	450/1000	450/1000	450/1000
Printing Speed (m/min)	5-50	5-50	5-50	5-50	5-50
Thickness of plate(mm) (including Two-sided Glue Paper)	2.38/3.94	2.38/3.94	2.38/3.94	2.38/3.94	2.38/3.94
Power Supply(V)	380V (three-phase four-wire power cable)	380V (three-phase four-wire power cable)	380V (three-phase four-wire power cable)	380V (three-phase four-wire power cable)	380V (three-phase four-wire power cable)
Total Power(kw)	8kw	10kw	11kw	11kw	13kw
Machine Weight(kg)	1800kg	1900kg	2100kg	2300kg	2400kg
Incasement Weight(kg)	2000	2100	2300	2500	2600
Machine Dimensions (mm)	2300x1700 x2200	2300x1900 x2200	2300x2100 x2200	2300x2300 x2200	2300x2500 x2200
