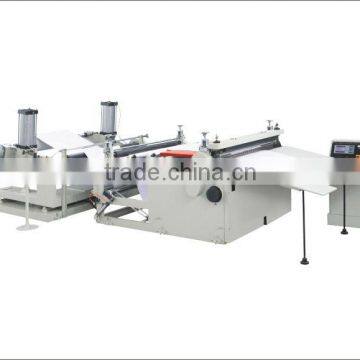

PHJC-1400 computer control paper cutting machine with automatic unwinding and error correcting
- Shanghai / Ningbo
- T/T
You May Like
-
PHJA-1400 computer control cutting machine with automatic feeding material
-
Edge Folding Machine/edge folding and rolling machine/film folding machine
-
Computer Control Automatic Film Folding Machine
-
ZBA Series Plastic Edge Folding Machine
-
Folding Machine for Plastic/Film Folding Machine/Edge Folding Machine
-
Edge Folding Machine/Folding Rolling Machine/Plastic Folding Machine
Product Details
| Condition | New | Type | Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | MTED | Model Number | PHJC-1400 | |
| Certification | CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Auto lengh-fixed2.Computer control
3.Frequency adjuseing speed
4. ISO9001, 2000
5.Paper Reel Cutting Machine
PHJC Paper Reel Cutting Machine
Use
Suitable for cross cutting with white paperboard,kraft paper,compound paper/plastic,plastic hard sheets roll material etc,(require by customers)
Function
1 This machine adopt computer control(Auto length-fixed,alarm when complete,Auto stop,Meter counting).
2 servo motor(step motor)material feeding,oil pressure or air pressure for auto-unwinding function(choose according to the material),back unwinding,magnetic powder brake,flat blade cut off,material-delivery press-roller(air pressure),auto edge correction(choose according to the material),frequency adjusting speed.
3 Extra Function:photoelectric tracking,round blade for wasted edge(choose according to the material)
4 Main Machine Is Made By:Steel plate,cast iron,channel steel
Main Technical Parameters:
Model | 1100 | 1400 | 1700 |
Max.Cutting Width(mm) | 1050 | 1350 | 1650 |
Max.Cutting Length(mm) | 100-1500 | 100-1500 | 100-1500 |
Speed of Machine(pcs/min) | 20-130 | 20-130 | 20-130 |
Diameter of Raw Material(mm) | 1500 | 1500 | 1500 |
Material Thickness Range(g) | 70-550 | 70-550 | 70-550 |
Orientation precision(mm) | 0.2 | 0.2 | 0.2 |
Max.Cutting Speed(pcs/min) | 60 | 60 | 60 |
Power Supply(V) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) | 380V (three-phase four-wire power cable) |
Total Power(kw) | 6.5kw | 7.9kw | 9kw |
Machine Weight(kg) | 2000kg | 2800kg | 3200kg |
Incasement Weight(kg) | 2200kg | 3000kg | 3400kg |
Machine Dimension(mm) | 5200x1900x1400 | 5200x2100x1400 | 5200x2400x1400 |
