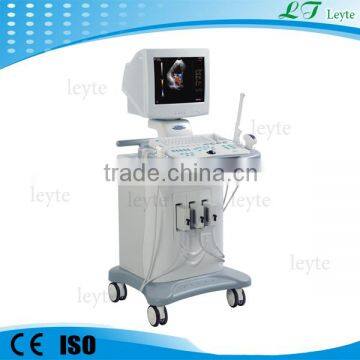

LT6000 color mobile medical Doppler Ultrasound scanner equipment

Specifications

LT6000 color mobile Doppler Ultrasound scanner equipment

Detail specification for Color Doppler Ultrasound :

LT6000 color Doppler ultrasonic diagnostic system is composed of advanced technology of digital color Doppler and wide frequency probe, internet applications system with general measuring function, kinds of leading image process technology, which reaches to leading level in the world. It is whole-body applied digital color ultrasonic diagnosis system of ultrasonic family with clear image. Features of Color Doppler Ultrasound scanner:

Applications 1. Abdominal

2. Small Parts 3. Obstetrics 4. Gynecological 5. Cerebrovascular 6. Peripheral Vascular 7. Cardiac

Imaging Modes 1. 3D 2. Color Doppler 3. Power Doppler 4. Pulsed Wave Doppler 5. M Mode 6. Dual Image Mode 7. Duplex, 3D & PW Doppler 8. Triplex, 3D, Color & PW Doppler System Description of Color Doppler Ultrasound: 1. The system is a 128 channel, high resolution ultrasound imaging system with patented Adaptive Focusing which enables high performance ultrasound imaging from 2MHz to 10MHz. 2. Each transducer has three imaging frequencies and two or three Doppler frequencies available. 3. The system has sophisticated report generating capabilities for OB, Vascular, Cardiac, Gynecology and Urology. 4. This PC based system can store images and reports to disk. Images and report can be copied to external media. HTML versions of reports can easily be copied, emailed and viewed by any Internet Browser. 5. The system provides multiple application specific presets for each probe. Custom presets can be generated by the user. 6. Windows 2000 Professional Operating System enables support of a wide range of peripherals and is readily upgraded with software enhancements. Hardware and Software 1. 128 Element Linear and Curved Arrays 2. 2 Transducers can be connected electronically selectable 3. Receiver Dynamic Range > 125dB 4. Total Dynamic Range > 150dB 5. Display Dynamic Range > 70dB 6. Eight Transmit Focal Zones for high resolution throughout the image 7. Continuous dynamic focusing on receive 8. Center frequency range from 2.5MHz to 9MHz (band edge from 1.5MHz to 12MHz) 9. Multi-frequency operation for all probes 10. B Mode Imaging frame rates up to 34 frames per second 11. B Mode line density up to 512 lines 12. Field of View (FOV), variable, up to 25 cm in five steps 13. Variable transmit power and variable image gain 14. Slide pot TGC controls Control Panel and User Interface 1. Ergonomic control panel with controls organized by mode 2. Alphanumeric QWERTY keyboard 3. Trackball with Set and Esc keys 4. Integrated stereo speakers 5. 3D image controls: Power, Gain, TGC, Depth, Focus, Magnify, Zoom, Dual, Orientation 6. Image Enhancement: Dynamic Range, Persistence, Gray Scale maps, Edge Enhancement 7. Doppler controls: Angle/Steer (linear arrays), PRF (velocity range), Angle Correction, Baseline Shift, Gain ,Power 8. Color controls: Velocity mode, Power Mode, Color priority, Color frame rate, Color maps, Color persistence 9. Patient data entry 10. mage Acquisition: Cine review, Image storage, Cine storage 11. Image and Report retrieval 12. Image Annotation Monitor 1. 15 inch, color VGA 2. Swivels, Tilts 3. Brightness, Contrast, and Color temperature controls Imaging Display 1. Dual image display 2. Image orientation control, both horizontal and vertical Magnify up to 3× 2× Zoom, with full screen image and magnified section Variable Sector Angle for curved array transducers 256 Gray shades Eight gray scale maps Display dynamic range from 30 – 70 dB Display of output power Display of TI and MI (Track Ⅲ) in all modes Variable persistence Edge enhancement Image storage for more than 10000 frames on local drive (unlimited with external media) Cine Loop: - Stores up to 256 frames of B & W or Color images (with optional 512MB memory, 128 frames standard) - Trackball control of frame-by-frame image selection - Controls for cine play back - Controls for trimming - Cine loops can be saved and retrieved as part of patient record Measurement capability in B Mode: - Distance - Area by ellipse - Area by trace - Curve length - Volume (required two images) - Angle Full image annotation capabilities including: - Text entry and editing - Pre-programmed vocabulary (user definable) - Arrows and pointers - Body marks that cover many applications and orientations -- M Mode B Mode & M Mode display Full screen M Mode display Variable scroll speed 2, 3, 4, 5, 6, 8 seconds User adjustable M Mode line Time, velocity, acceleration, Heart Rate measurements Variable Dynamic Range and Persistence -- PW Doppler Duplex (simultaneous) 2D and Doppler Triplex mode, 2D, Color & PW Steered mode for linear arrays Wide range of velocities (PRFs) Variable wall filters Adjustable gate size from 1 to 7 mm Doppler angle correction for velocity measurements Baseline shift and invert functions Variable spectral sweep speeds Automatic mean and peak velocity traces Variable gray maps Measurement capability in PW Mode: Time, Velocity, Acceleration -- Color Doppler Imaging Region of Interest (ROI), size and position variable Steered Color with linear arrays Variable wall filters Variable Color priority Multiple Color maps Variable Color frame rate Velocity and power displays Variable color persistence Color invert -- Power Doppler Imaging Region of Interest (ROI), size and position variable Steered color with linear arrays Variable wall filters Variable Color priority Multiple Color maps Variable Color frame rate Variable color persistence -- Calculation Packages All measurement packages support a powerful Worksheet capability that enables review and manipulation of measurement information. -- Obstetrics Measurements Calculation of Estimated Gestational Age (EGA) based upon: AC, BPD, BD, CRL, FL, GSD, HC, HL, MAD, OFD, TL, UL Calculation of Estimated Fetal Weight (EFW) Calculation of growth parameter ratios Graphic display of statistical growth charts Biophysical Score report Structural Report -- Cardiac Measurements Cardiac index Cardiac output LV end-diastolic volume LV end-systolic volume Ejection fraction Stroke index Stroke volume IVS/LVPW ratio Aortic valve pressure gradient Aortic pressure half time Aortic valve area Mitral valve area Left ventricular outflow tract pressure gradient -- Vascular Measurements Time Average Mean Velocity (TAM) Time Average Max Velocity (TAMX) Pulsatility Index (PI) Resistive Index (RI) Peak Systolic Velocity (PSV) End Diastolic Velocity (EDV) S/D Ratio (PSV/EDV) PSV_ICA/PSV_CCA Velocity Ratio (Velocity 1 / Velocity 2) % Stenosis by Diameter % Stenosis by Area -- Focusing Transmitting focusing (8 ranges), receiving continuous fousing -- Display Prameter Acoustic power, total gain, dynamic range, TGC curve, gain of Doppler, pulse repetition frequency, wall-filtering ratio. -- Image Process Colorful map, frame average processing, angle adjustment and wall filter -- Gray 256 -- Image Storage Storage and playback of 128 continuous image -- Image Output Output to floppy disk, USB and color video printer -- Standard Configuration Main unit 15”RGB color monitor, resolution 1024*768 3.5MHz 60R65D multi-frequency convex probe 7.8MHz38L multi-frequency linear probe -- Option 3.3MHz72D20R multi-frequency convex probe 7.0MHz14D10R multi-frequency convex probe Color video printer 3D - Probe

Who we are ?

Our Leyte Electronic Co., Limited is a leading exporter and supply chain service provider of LT6000 color mobile medical Doppler Ultrasound scanner equipment with more than 6 years’ experience.

Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.

We have exported LT6000 color mobile medical Doppler Ultrasound scanner equipment to more than 50 countries and built long term partnerships with clients.

Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.

Where are our customers?

We have sold LT6000 color mobile medical Doppler Ultrasound scanner equipment to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.

we like to show some of our Customers as below :

Trade Term

1. This offer is valid with 30 days.

2. Delivery time: In 10 days after receive the payment

3. Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery

4. Carton box

Delivery detail:

1.We ship goods by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get LT6000 color mobile medical Doppler Ultrasound scanner equipment ,takes 3~ 5 days to arrive;

2.We can also help you ship LT6000 color mobile medical Doppler Ultrasound scanner equipment   by air cargo which you need to go to Air port to take LT6000 color mobile medical Doppler Ultrasound scanner equipment home ,it takes about 2-7 days to arrive ;

3.If goods are large quantity and you not need  LT6000 color mobile medical Doppler Ultrasound scanner equipment urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .

No matter what delivery way ,depending on your actual requirements.

our services:

1. For all your inquires about us or our LT6000 color mobile medical Doppler Ultrasound scanner equipment , we will reply you in detail within 24 hours 2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language

3. We offer OEM services. Can print your own logo on LT6000 color mobile medical Doppler Ultrasound scanner equipment can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use LT6000 color mobile medical Doppler Ultrasound scanner equipment
