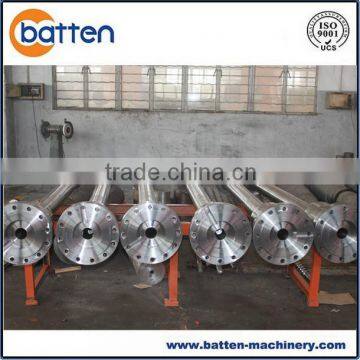

65mm Screw Barrel for 3 Layer Film Co-extrusion
US$ 1,000 - 1,800
/ Set
1 Set(Min. Order)
- Ningbo
- T/T L/C D/P D/A
You May Like
-
PP/HDPE Corrugated Pipe Plastic Extrusion Line Single Screw Barrel
-
Nitrided Single Screw Barrel for HDPE Plastic Pipe Machines
-
High Capacity PE Pipe Single Screw Barrel for PE Pipe Extruder
-
90/28 PP,PE Pelleting Recycling Extrusion Screw Barrel
-
120/30 PE Blowing Film Plastic Extrusion Machine Single Screw Barrel
-
65/30 LDPE/HDPE Film Blown Plastic Single Extruder Screw and Barrel
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Batten | |
| Model Number | BA65-30 |
Product Description
Product Description
| Technical Information | |||
| Main Base materials | 1.38CrMoAlA (SACM645) | Main Alloy Materials | 1. Ni-based alloy/Deloro alloy |
| 2. SKD-61 (Special Tool Steel) 4Cr5MoSi V1 | 2. Tungsten carbide/Wolfram carbide | ||
| 3. 42CrMo (Ultrahigh StrengthSteel) | 3. NiCo-based alloy | ||
| 4. DC53 (Cold WorkDie Steel) | 4. Fe-based alloy | ||
| 5. W6Mo5Cr4V2 (High-SpeedToolSteel 6542) | 5. Co-based alloy | ||
| Processing Technics | 1. Heat treatment | Technical parameters | Nitriding layer depth:0.5-0.8mm |
| 2. Quenching | Nitrided hardness:900-1000HV | ||
| 3. Nitriding treatment | Bimetallic layer depth: 0.8-3 mm | ||
| 4. Bimetallic alloy welding for screw | Bimetallic hardness:57~65HRC | ||
| 5. Bimetallic alloy centrifugal casting for barrel | Hard-chrome plating hardness after nitriding:≥950HV | ||
| 6. Hard-chrome electroplating | Chrome-plating layer depth:0.03-0.09mm | ||
| Linearity of screw:0.015mm | Surface roughness:Ra 0.4 | ||
Our Services
- We are one station screw and barrel solution.
- We focus on each process to make sure every screw barrel is qualified and exact you want.
- Engineers for measure are availabe oce size and drawings are not clear.
- All screw barrels have one year- guarantee, while 3-5 years life time for nitriding ones, and alloy ones would be longer.
Company Information
BATTEN is located in Zhoushan City, the largest manufacture base of Screw Barrel in China.
With 1500 SQ.M workshop, and 40 experienced emplyees are equiped at BATTEN.
We equipped advanced technology and equipment for processing, test, as well as extended experience for design, nitrided , chrome plating, stainless steel, bimetallic and HVOF ( surface spraying technology) treatment for different demands.
we are able to design and make products as per your drawing and present parts. With high quality products, satisfies and prompt sevice , looking forward to cooperate with you.
Exhibition
Contact Us
- Zhoushan Batten Machinery Technology Co., Ltd.
- Contact nameLily Li Chat Now
- Phone86-580-8015962
- AddressNo.122#,Xi'ao,Cengang Town, Zhoushan, Zhejiang
