CNC 3015 YAG Laser Cutting Machine
- Wuhan/Shanghai/Shenzhen
- T/T Credit Card
You May Like
-
High Quality Factory Price 6040 1060 1310 1612/ 60W 80W 100W 150W Co2 Laser Cutting Machine Price
-
High Precision Less Consumable Parts Fiber Laser Cutting Machine for Metal
-
200W 500W 1000W 2000W Stainless Steel Carbon Steel Mild Steel Aluminum CNC Fiber Laser Metal Cutting Machine
-
1000W 2000W Fiber Laser Cutting Machine for 5mm Carbon Steel
-
2015 HOT Sale 500W Fiber Laser Cutting Machine
-
2016 NEW 200W Fiber Laser Cutting Machine
Product Details
| Condition | New | Laser Type | YAG | |
| Applicable Material | Acrylic, Crytal, Glass, Leather, MDF, Metal, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood | Cutting Thickness | Depends on Materials | |
| Cutting Area | 1500*3000mm | Cutting Speed | 1200mm/s | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | Original | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Hubei, China | Brand Name | Keyi | |
| Model Number | KY-C-GC600/700 | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Description
Composed of foundation, Laser, power, cooling system and control system, RX-A3-3015-T5 narrow format gantry-type YAG Laser cutting machine has the feature of compact layout, stable optical link, operation convenient and reliable performance.
Adopting xenon lamp as excitation source, laser generator export high energy density laser beam that focus on the works surface. Partial material in the area where facula irradiates melts and gasifies at moment. The mechanism is controlled and makes the facula move to accomplish cutting automatically.
Combining the laser technology, CNC technology, precise mechanical technology itself, laser cutting suits especially to cut the metal plate that thickness is less 8. It is the first choice to cut stainless steel plate, carbon steel plate, iron plate, aluminum plate and tube. Laser cutting has been widely used in sheet metal, hardware product, structural steel, precision mechanical, auto components, nameplate advertisement, and crafts, electric, toy and package, etc.
Applicable Materials
Suitable for cutting stainless steel, mild steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum, galvanized steel sheet, brass, titanium, and metal pipe and tube.
Application Industrial
Applied in sheet metal processing,elevator,kitchenware cabinet,fitness equipment,agricultural and forestry machinery,food machinery,fire cabinet,metal door cabinet, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, household appliances, gifts and crafts, tool processing, adornment, advertising,Signage, metal foreign processing various manufacturing processing industries.
YAG Laser Cutting Machine Main Features
1. Equipped with medium power YAG lamp pump laser generator and can do cutting of any graphics within the size of 1500mm×3000mm (or 1300X2500mm, 1300X900mm). It is suitable for large-scale metal sheet cutting and the processing is fast and precise.
2. Stable and good deformation resistance capability. Aging process technology ensures durable in use and accuracy of the machine.
3. Automatic following focus device realizes dynamic focus continuous cutting on materials with different thickness.
4. The working table is equipped with universal wheel and pneumatic loading device (optional), which saves labor, avoids metal sheet damage and ensures good cutting quality.
5. Separate digitalized operating table and remote controller is convenient for operation. There are several input modes of USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods. One computer can control several laser machines, saving cost.
6. Standard collocation of automatic nesting software and optional collocation of auto-recognition cutting, save materials and improves working efficiency.
7. The machine can be equipped with integrated rotary device or detached rotary device and can do fixed position punching, notching and cutting metal pipes.
Technical Parameters
Laser type | YAG lamp pump solid state laser generator |
Laser wavelength | 1064nm |
Laser power | 800W 650W |
Cutting area | 1500mm x 3000mm, 1300mm x 2500mm, 1300mm x 900mm |
Working table | Saw tooth working table |
Motion system | Digital offline control system; YASKAWA servo motor; ABBA high precision ball screw; REXROTH linear guide transmitting system |
Min kerf | 0.15mm (1mm thickness) |
Min bore diameter | 0.2mm to 0.5mm |
Cutting speed | 0~50 mm/s |
Repeating position accuracy | ±0.1mm |
Max. cutting thickness (Air) | Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness | Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper (do not suggest large batches of cutting these 3 high reflective materials) |
Cooling system | External constant-temperature water chiller system |
Software | Golden Laser Auto Nesting Laser Cutting Software |
Format supported | PLT, DXF, AI, DST etc |
Other standard collocation | Remote controller, drawer rewind device |
Optional collocation | Integrated rotary device (X axis); detached rotary device (Y axis); pneumatic loading device |
Auxiliary gas | Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 : stainless steel when need shiny cutting edge |
Suggested auxiliary gas | Dry filter compressed air |
Total power | 22KW |
Power supply requirement | 380V± 5% 50/60HZ 100A (3 phase 5 wire) |
Floor space requirement | 4500mm x 4500mm |
Workshop environment | Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |

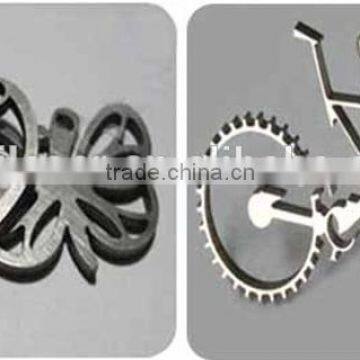

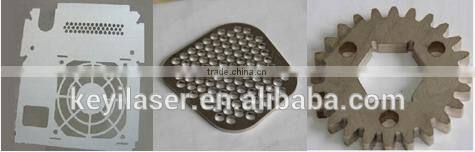

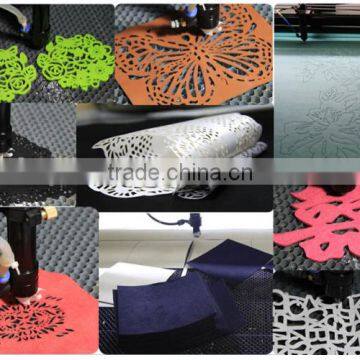

Sample Show
Packaging & Shipping
1. Keyi Optic & Electric products packaging are in line with the international air and sea transport packaging standards;
2. With sturdy wooden or iron box packing for long-distance transport, protection against the water and rust and shock and rough handling, for each part of the overall lifting equipment according to standard packaging;
3.Every package has a detailed packing list;
4. We will delivery within 7-10 day after payment ;
Service Commitment
1. Keyi Optic & Electric provide two years free warranty and life-long maintenance. We provide spare parts and service free during warranty time. After the warranty period shall charge only when maintenance, continue to provide a broad and favorable technical support and spare parts supply.
2. Keyi Optic & Electric will upgrade software free for our products.
3. Keyi Optic & Electric received your repairing call, our after-sales engineers will give a clear answer within one hour, arrived at the scene within 24 hours, to ensure that users do not delay production.
4. Welcome to contact me for details, 24 hours online.
