Place of Origin	China		Brand Name	OSN Power
Model Number	OS-9S1010-BMS

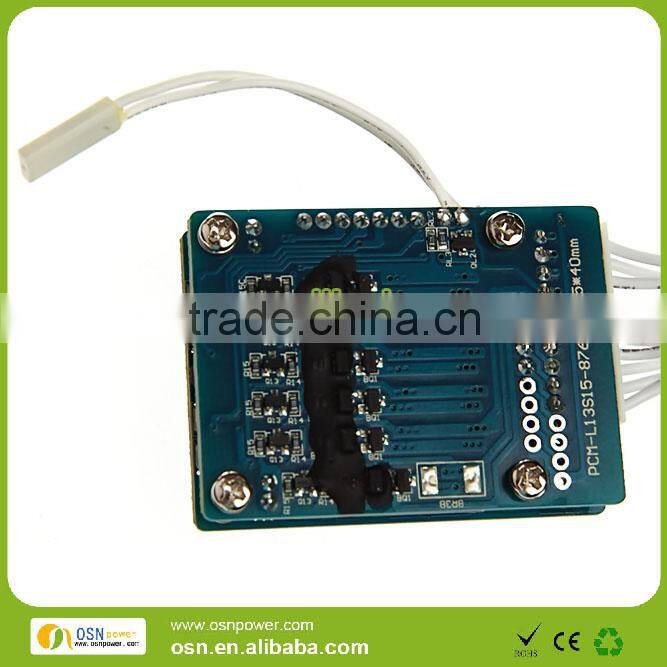

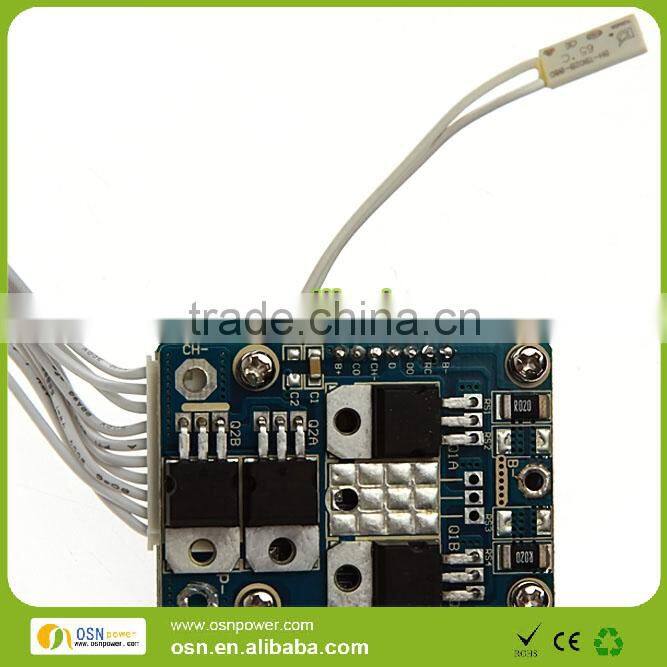

9S 10A BMS for Li-ion/ Lipo 33.3V battery pack
Continuous/Peak Discharge Current: 10A/20A
Charge Current:10A

Specifications For 9S /33.3V Li -ion Battery Pack
Model: OSN-9S1010-BMS
No.	Test item		Criterion
1	Voltage	Charging voltage	DC:37.8V CC/CV
2	Current	Current consumption for single cell	4.2+0.25V
		Maximal continuous Charging current	10A
		Maximal continuous Discharging current	10A
3	Over charge Protection	Over charge detection voltage	4.25+0.025V
		Over charge detection delay time	0.5—20S
		Over charge release voltage	4.05+0.05V
4	Over discharge protection	Over discharge detection voltage	2.50+0.062V
		Over discharge detection delay time	10-200mS
		Over discharge release voltage	2.50+0.062V
5	Over current protection	Over current detection current	60+20A
		Detection delay time	5ms—20mS
		Release condition	Cut load, Automatic Recovery
		Detection condition	Exterior short circuit
6	Short protection	Detection delay time	200-500us
		Release condition	Cut load, Automatic Recovery
		Protection circuitry (MOSFET)	≤20mΩ
7	Resistance	Operating Temperature Range	-40~+85°C
8	Temperature	Storage Temperature Range	-40~+125°C
9	Size		L55W40T17mm
