Home > Products > Multi-heads CNC Router > Factory Supply Cnc Engraver Machine, Cnc Router Woodworking Machine for Sale Supplier's Choice
Factory Supply Cnc Engraver Machine, Cnc Router Woodworking Machine for Sale Supplier's Choice
- Qingdao port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot 6 Heads Cnc Router, Jinan Cnc Router, Cnc Woodworking Carving Machine Supplier's Choice
-
Wood Boring Machine/ Mould Engraving CNC Router With Multi Heads
-
Multi Function Cnc Drilling,carving,cutting Wood Door Engraver /high Precision Wood Cnc Router
-
1325 Simple Auto-tool Changing Wood CNC Router, Multi Spindles Cnc Engraving Machine
-
Multi Head Wood 3D Cnc Router, 3 Axis Cnc Router, Cnc Carving Machine With 6 Spindles
-
Ecnomical and High Performance ATC Engraving Machine for Stone / Marble Cnc Router
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | SIGNCNC | |
| Model Number | 1325-6 | Voltage | AC380V/50/60Hz,3PH (Option: 220V)) | |
| Power(W) | (Without spindle) 2.0Kw | Dimension(L*W*H) | 1300x2500x200mm | |
| Weight | 1200kg | Certification | CE | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Factory supply cnc engraver machine, cnc router woodworking machine for sale
Application:
Furniture decoration, music instrument,wooden arts and crafts, large scale board engraving, solidwood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, bedside cupboard, screen sculpture etc.
Samples:
Machine Features:
1. More steady and strong equipped withT type gantry and T type square steel tube machine bed.
2. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working.
3. 6 spindles can work simultaneously, greatly improving production efficiency.
4. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred.
Machine parts:
Technical Parameter:
Model | SIGN-1325 Multi head cnc Carving Machine |
X,Y Working Area: | 1300*2500mm |
Z feed Height | 150mm |
X,Y,Z repositioning Accuracy: | ±0.01mm |
Frame: | Steel tube structure |
X, Y Structure: | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure: | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption: | (Without spindle) 2.0Kw |
Max. Rapid Travel Rate: | 33000mm/min |
Max. Working Speed: | 25000mm/min |
Spindle Power: | 0.8 / 1.5 / 2.2KW * 8 |
Spindle Speed: | 0-24000RPM |
Drive Motors: | Stepper system |
Working Voltage: | AC380V/50/60Hz,3PH (Option: 220V)) |
Command Language: | G code |
Operating System: | Ncstudio (options: DSP /Mach3 PC Software) |
X,Y Resolution | <0.01mm |
Software Compatibility: | Type3/UcancameV9 software, (Option: Artcam software) |
Running Environment Temperature: | 0 degree - 45 degree |
Relative Humidity: | 30% - 75% |
Guarantee | One year |
More other machine models:

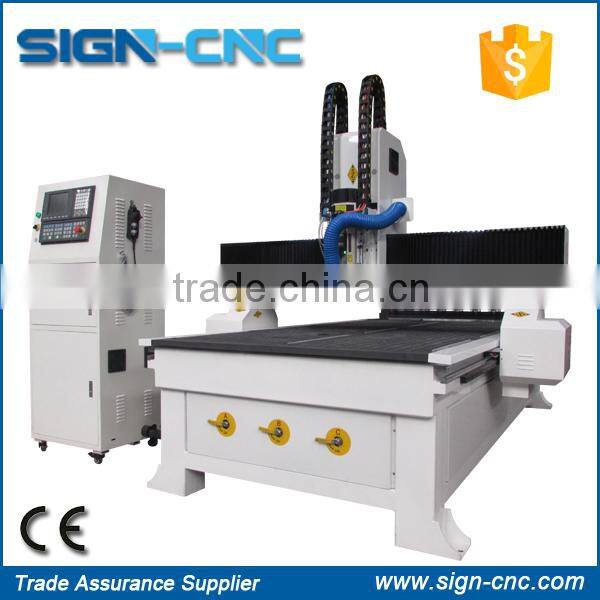

| SIGN-1325 ATC | SIGN-1325 pneumatic |
| |
Our certificate:
Our Services:
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life span free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ:

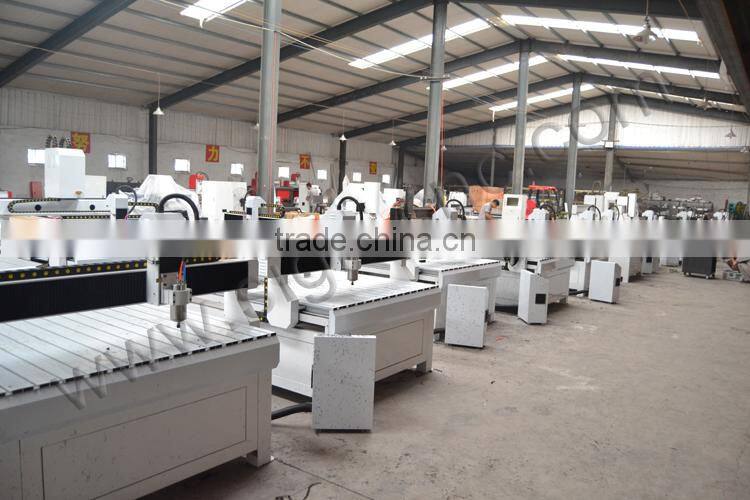

Welcome to visit our factory:
Please feel free to conact us for more information.
