Product Details
| Package | 16-pin tssop package | Model Number | ASC8826 | |
| Type | Other, charge and boost voltage regulator | Brand Name | MC FASHION | |
| Place of Origin | Guangdong, China |
integrated chip 5V 4.8A 3.5A 3A 2A China power bank ic packed by 16-pin tssop p
Product Description
ASC8826 new and original integrated chip 5V 4.8A 3.5A 3A 2A China power bank ic
Specification:
1. High quality integrated chip 5V 4.8A 3.5A 3A 2A China power bank ic
2. ASC8826 is a mobile power supply chip integrating both charge and boost, using the external power valve and the charge/boost inductance.
3. The maximum charge current is 2A, boosting by synchronous rectification method.
4. The maximum output load current is 4.8A ( also can be 3.5A 3A 2A), with an efficiency above 90%.
Features:
1. 5V 4.8A ( also can be 3.5A 3A 2A ) boost output.
2. Booster output with current limiting function, current limiting value can be adjusted by the external resistors.
3. synchronous rectificationefficiency up to 90%.
4. 2A maximum charge current.
5. 0.5% fully charged voltage accuracy.
6. Adjustable fully charged battery voltage.
7. Ajustable constant charge current battery external resistance.
8. Soft start.
Application:
1. Portable power source
2. Handheld products
3. Tablets computer
both charge and boost 3A mobile power IC chip
| Product name | integrated chip 5V 4.8A 3.5A 3A 2A China power bank ic |
| Input voltage | 4.5V ~ 6.5V, normal 5V |
| Pin voltage | -0.3V ~ 6.5V |
| Operation temperature | -20 ~ 70 degree |
| Storage temperature | -60 ~ 125 degree |
| Lead temperature | 260 degree |
| HBM ESD level | 2000V |
| Package | 16-lead tssop |

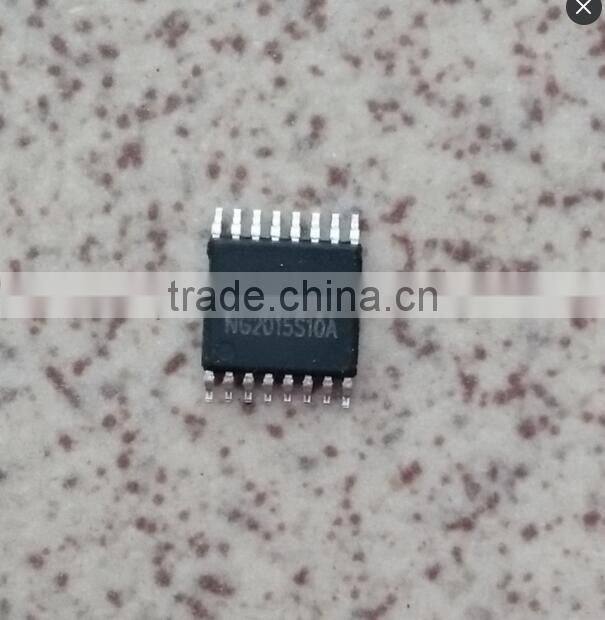

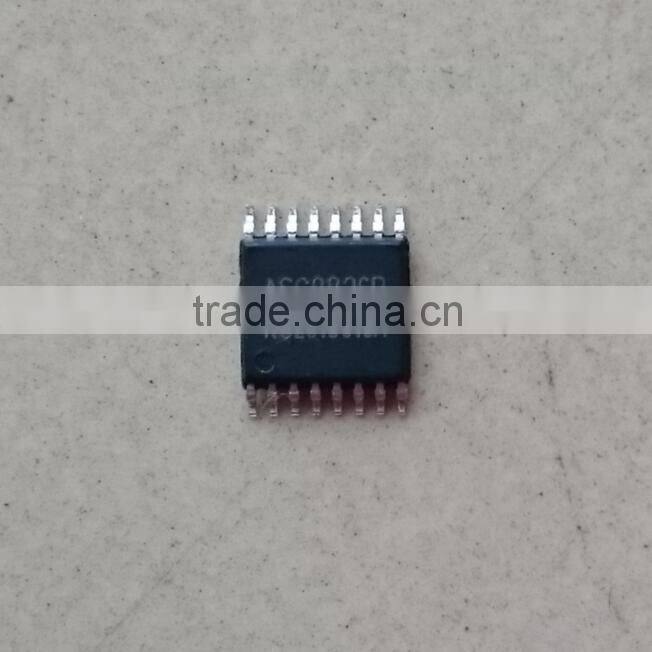

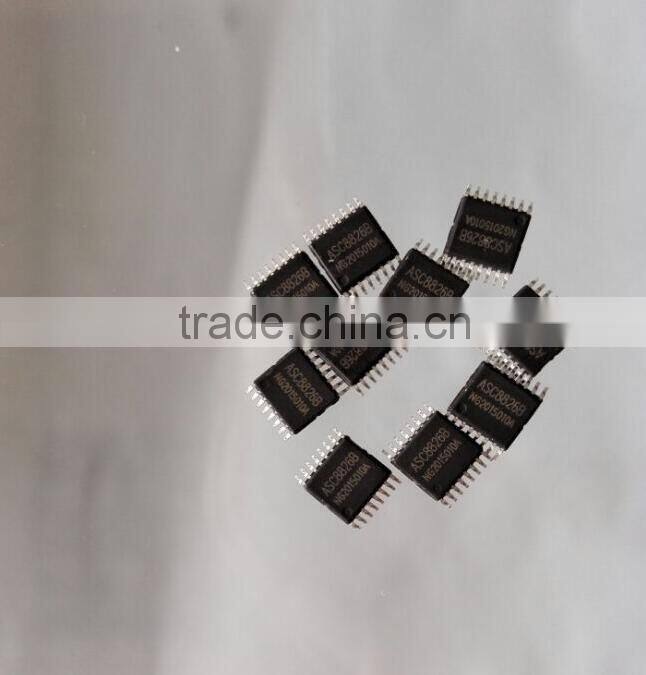

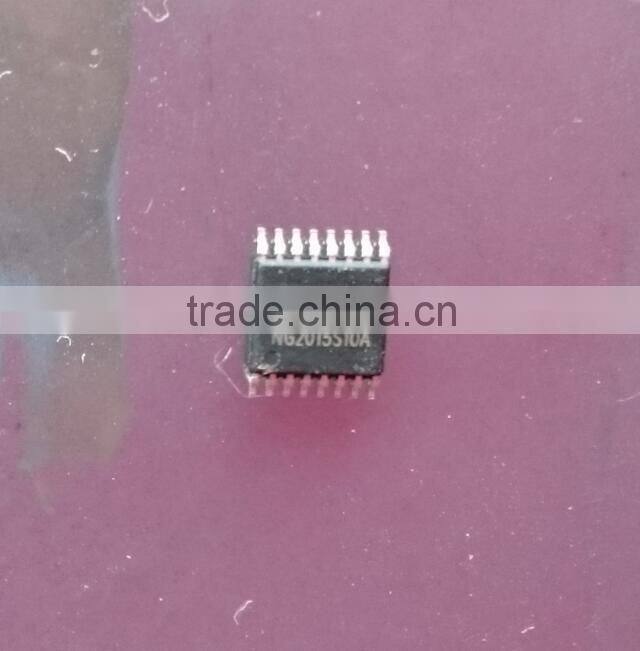

integrated chip 5V 4.8A 3.5A 3A 2A China power bank ic Pictures:


Company Information:
1.We are the professional manufacturer specializing in the designing, manufacturing and marketing of a variety of toys & battery & consumer electronics and gift.
2.We supply our customers with the most fabulous VR case for any occasion in latest design and competitive price.
3.We provide our customers with perfect experience of small or large amount wholesale and quick delivery to worldwide.
4. As an original design manufacturer, we have a young&fashion and energetic design team. With the excellent design team, we have been continuously innovating and introducing new vr case to lead trends.
FAQ:
1. Do you supply customized serivce?
Yes, we supply customized service, such as: power bank IC, quantity, LOGO sticker and gift box.
2. What is MOQ(Minimum Order Quantity)?
You can buy sample at first.. If you are satisfied with the sample, you can buy large quantity.
3. Could I place an order of mixing the different power bank IC?
Yes, it is acceptable. You may choose any kind of power bank IC and any quantity of each.

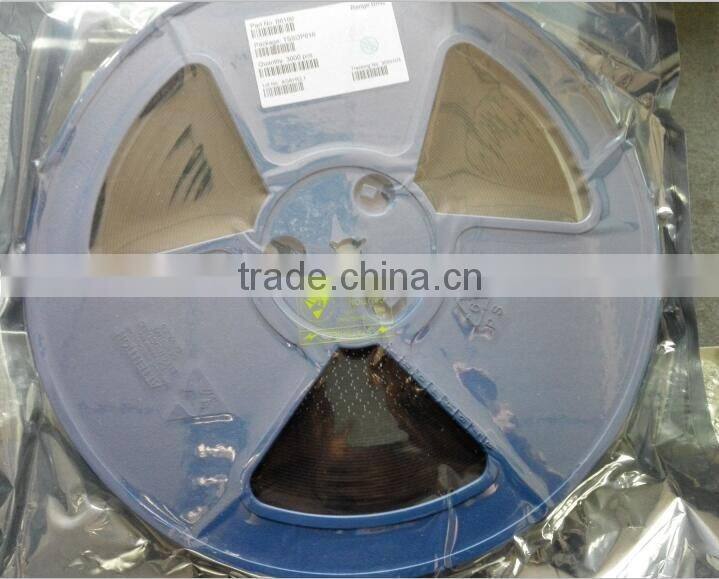

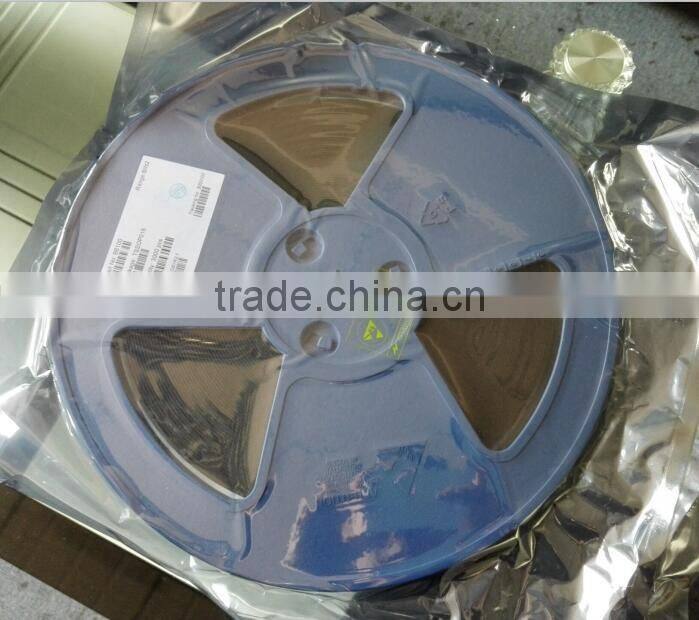

4. How do you pack and ship the power bank IC?
We pack the goods with bubble and put into the inner box, then we will put the inner box into carton box. In this way, the goods willnot be damaged during transport.
5. How do you ship the power bank IC?
We can send you goods by DHL & UPS & FEDEX & TNT & EMS & Hongkong Post & By Air & By Sea.
6. How do I place an order?
It is easy to place an order.
Send us an inquiry about the list of the power bank IC you want to order. We will process an Proforma Invoice for you.
7. How do I make payment?
We accept payment via Escrow, Western Union and bank transfer.
8. What is the delivery time?
It depends on the order quantity.
If you are interested in this power bank IC,please tell me the item number when you make an inquiry,so that we could give you a prompt and effective reply.
