Home > Products > Marking & Welding Machine > 60w Co2 Laser Marking Machine for Photo Print Image on Marble
60w Co2 Laser Marking Machine for Photo Print Image on Marble
- QingDao
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Laser Type | CO2 | |
| CNC or Not | Yes | Cooling Mode | Water Cooling | |
| Control Software | EZcad | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Working Accuracy | 0.005mm | Place of Origin | Shandong, China | |
| Brand Name | SIGN CNC | Model Number | SIGN-80 | |
| Power(W) | 80W .100W | Certification | CE, ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
60w co2 laser marking machine for photo print image on marble
Laser Marking Machine Fetures
1.Reci glass laser tube and high-speed galvanometer.
2. High precision and extremely fast speed. Marking depth is controllable optionally.
3.Wide application. It can mark most non-metals.
4.The marking lines are clear, it can withstands heavy wearing.
5. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate.
6.Chinese and English software are optional. The software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by CORELDRAW, AUTOCAD, PHOTOSHOP and other softwares. Meanwhile, SHX and TTF can be imported into the software directly.
Laser Marking Machine Applications
1. Applicable Materials:
This Co2 Laser Marker Machines can be used in wood, paper, leather, cloth. Plexiglass, epoxy, acrylic, plastic, ucsaturated polyester resin and other non-metal materials
2.Applicable Industry:
Application show

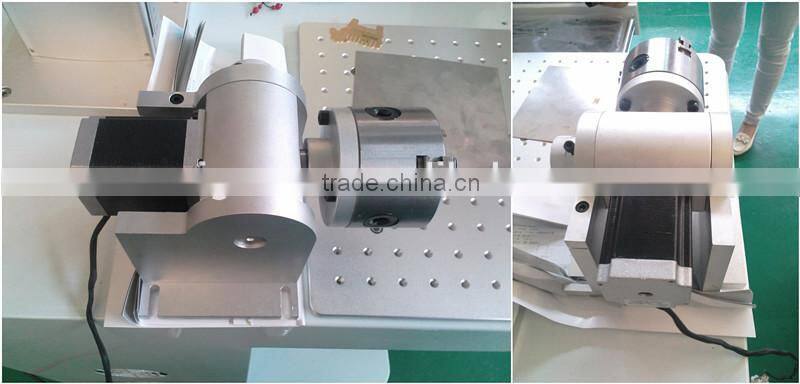

Laser Marking Machine Parts
rotary system is optional parts
Laser Marking Machine Technical Parameters
Model | SIGN-80W |
Laser power | 80w/100w Glass Tube |
Working area | 110*110mm |
Laser Wavelength | 10.64μm |
Response time | 0.5ms |
Frequency of pulse | 20KHz |
Max marking depth | 0-6mm |
Marking speed | 0-7000mm/s |
Minimum line width | 0.1mm |
Minimum character | 0.3mm*0.3mm |
Repeatability accuracy | ±0.005mm |
Resolution ratio | 0.1mm |
Graphic format supported | bmp, jpg, gif, tga, png, tif,ai,dxf,dst,plt,etc. |
Unit power | ≤1.2KW |
Power | 220V/50Hz/10A |
Cooling method | Water cooling |
Net weight | 150kg |
Dimension | 1100*550*1350mm |
FAQ
1.How about the documents after shipment?
A:After shipment, we will send all original documents to you by Express, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2.Q:How long is the delivery time?
A:For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to clients specific requirements, it would be 15to 30 days.
3.Q:where is you company ?can I visit it ?
A:Our company is located in Jinan,Shandong,China, we are glad to welcome customer from all over the word coming to our company for visit.
Laser Marking Machine After Sale Service
1. International quality certificate, CE,ISO9001
2. free maintenance within warranty period .
3.12 months warranty against manufacture defect.
4. Engineers available to service machinery overseas.
5. Free training for machine installation and operation.
6. Free samples marking of customer provided.
7. 24 hours technician professional and timely after-sale service
8. User-friendly English manual and video CD for machine using and maintaining
We have a strong professional technical team to provide the best products and have experienced managers with the most perfect price system integration schemes for our customers. We have been established business partner with many customers from Russia, Ukraine, U.S., Japan, South Korea, Canada, Italy, Turkey, Iran, Iraq, Egypt, Brazil, Pakistan etc. more than 50 countries.
