Alloy Wire SUS 304 316 STAINLESS STEEL WIRE for Spring Stainless Steel Welding Wire
- tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Other, Stainless Steel Wire, 301,321,316L,310S | |
| Type | Other, Wire Cloth, Spring ,welded,tig,migetc soft and hard | Application | Screen | |
| Weave Style | Plain Weave | Wire Diameter | 0.1mm-16mm | |
| Technique | Woven | Model Number | BH | |
| Brand Name | Boheng Stainless Steel Wire in coil in spool |
Product Description
Specifications
ASTM A580 high quality stainless steel wire1.Material:301,321,316L,310S
2.Surface: bright, soft and hard
Alloy wire SUS 304 316 STAINLESS STEEL WIRE for spring stainless steel welding wire
Stainless Steel Wire brife introduction
1.Material: 304, 304L, 316, 316L,etc.
2.Wire diameter: 0.1mm to 16mm(0.004''-0.630'')
3.Grade: 300 series,200 series,400series
4.Item: EPQ wire,weaving ,braiding wire,cold heding wire,spring wire,redrawing ,annealing wire,shaped eire,welding wire,CD bar,CG bar.
5.Type: Electro polishing quality wire, weaving wire,braiding wire,Cold heading wire,spring wire,Redrawing wire,annealing wire ,shaped wire,welding wire,CD bar.
Stainless Steel Wire Specification:
Chemical composition of stainless steel wire:
AISI Grade | Chemical Composition (%) | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - | |
304H | >0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - | |
304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - | |
316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 | |
316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 | |
430 | ≤0.12 | ≤0.75 | ≤1.00 | ≤0.040 | ≤0.030 | ≤0.60 | 16.00~18.00 | - | |
430A | ≤0.06 | ≤0.50 | ≤0.50 | ≤0.030 | ≤0.50 | ≤0.25 | 14.00~17.00 | - | |
Size of Stainless Steel Wire:
Wire Diametermm) | Tolerancemm | Max.Deviation Tolerancemm |
0.020-0.049 | +0.002 -0.001 | 0.001 |
0.050-0.074 | ±0.002 | 0.002 |
0.075-0.089 | ±0.002 | 0.002 |
0.090-0.109 | +0.003 -0.002 | 0.002 |
0.110-0.169 | ±0.003 | 0.003 |
0.170-0.184 | ±0.004 | 0.004 |
0.185-0.199 | ±0.004 | 0.004 |
0.200-0.299 | ±0.005 | 0.005 |
0.300-0.310 | ±0.006 | 0.006 |
0.320-0.499 | ±0.006 | 0.006 |
Stainless Steel Wire Application:
1 Stainless steel wire is used in wiredrawing
2 weaving of wire mesh,
3 soft pipe, beam of cabinet,
4 steel wire rope,
5 filter material and equipment, spring, etc

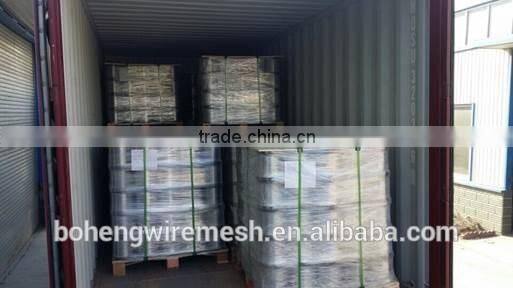

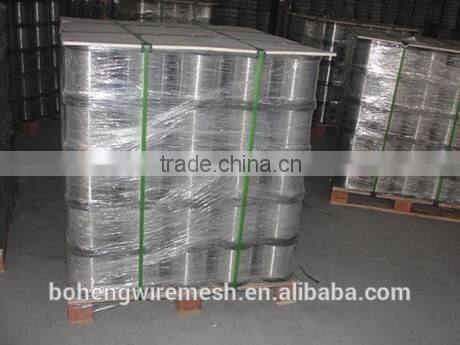

Package:

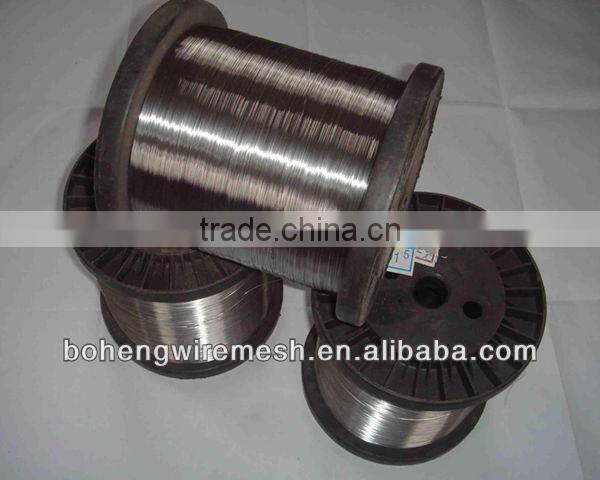

Wire diameter<1.1mm: spool, carton, pallet
Wire diameter>1.1mm :coil plastic film inside woven bag outside( also according customer’s requirment.)
