Kaisheng power Agricultural irrigation--diesel water pump generator

Specifications

This series diesel pump unitwith advanced reasonable structure, high efficiency,low vibration and noise,smooth running, good reliability,easy handling and so on. This series diesel pump unit for conveying water below 80°Cand other liquid with similiar physical,chemical properties.Mainly applied to the transmission fluid occasions of fire fighting system, water plant, building water supply, irrigation and drainage pumping stations, power plants, industrial water systems, shipbuilding industry, mine drainage and oil, chemical, metallurgical industries and so on .

Diesel engine parameters:

1)Model:K4100D / R4105 / R6105 series engine

2)Rated output/Max output(KW):30.0/33KW

3)Rated speed(r/min):1500

4)Starting method: Electric motor 12/24V DC

5)Cooling method: Closed water cooling

6)Governing method: Mechanical/Electronic governing(Optional)

7)Intake method: Natural

8)Cylinders:4 / 6

9)Bore/Stroke:100/115mm --105/125mm

10)Type: inline,4 stroke, humid liner, direct injection

Water pump parameters:

1)Model:IS150-125-315

2)Type: Single grade, single suction,centrifugal

3)Outflow:240m3/h

4)Head:29m

5)Shaft power:23.7KW

6)Inlet diameter:150mm

7)Outlet diameter:125mm

8)Impeller diameter:315mm

9)Casing material: cast iron

10)Shaft material: cast iron

11)Impeller material:cast iron

12)Sealing method: Stuffing sealing/Mechanical sealing(Optional)

Control system(OPTIONAL):

1)AMF/ATS function

2)Warning of oil low pressure, slow speed, high water temperature, high oil temperature etc

3)Display functions with warning ,Auto start and stop

4)Weather canopy,trailer type,movalbe type

Note : refer to the engine of water pump set , we have two type :

1. Diesel engine with clutch

2. Diesel engine without clutch

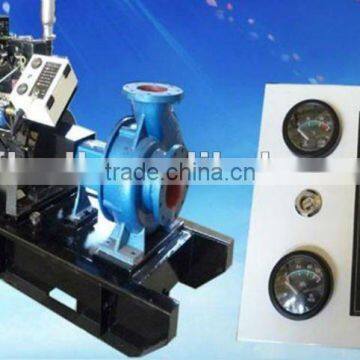

Diesel water pump set Products pictures :
