AnPing BoHeng Stainless Steel Wire
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Standard | AISI, ASTM, DIN, EN, GB, JIS | Grade | 300 Series | |
| Wire Gauge | 0.02-6mm | Length | 0.05-50000m | |
| Application | Weaving wire ,Braiding wire | Certification | ISO | |
| C Content (%) | 0.03-0.15 | Si Content (%) | 1.0-1.5 | |
| Place of Origin | Hebei, China | Brand Name | BoHeng | |
| Model Number | TRSS988 |
Product Description
Specifications
EPQ wireQC:ISO 9001:2008
Dia:0.02-5mm
Tensile strength:450-900 Mpa
Material :304,304L,316,316L,310 etc

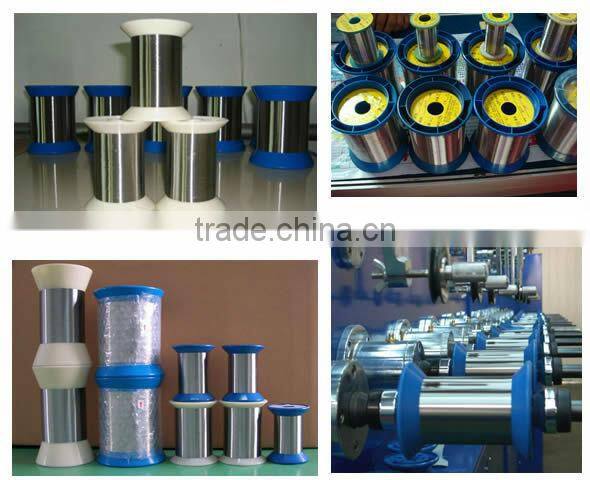

Stainless steel wire
We supply various stainless steel yarn. With choice raw materials and advanced technology,
we can guarantee good quality product for export.BoHeng produces stainless steel yarn
from fine quality stainless steel wire for weaving fabrics. Sizes of stainless steel yarn we supply: 0.02mm to 5 mm.
WIRE CLASSIFICATION:
1.EPQ wire (electro polishing quality)
2.Cold heading wire (cold heading quality for making screws, fasteners, balls ,etc)
3.Nail wire
4.Weaving wire ,Braiding wire
5.Spring wire
6.Annealing wire ,redrawing wire ,tie wire
7.Welding wire
8.Free cutting ,profiling wire
9.Cold drawn bar
10.Other stainless steel wire applied in different conditions .
Materials &standards:
Materials: 200300400500series
Standards: JIS ,AISI/ASME, DIN,GB ,etc
Specification
Wire Diameter(mm) | Tolerance(mm) | Max. Deviation Tolerance (mm) |
0.020-0.049 | +0.002/-0.001 | 0.001 |
0.050-0.074 | 0.002 | 0.002 |
0.075-0.089 | 0.002 | 0.002 |
0.090-0.109 | +0.003/-0.002 | 0.002 |
0.110-0.169 | 0.003 | 0.003 |
0.170-0.184 | 0.004 | 0.004 |
0.185-0.199 | 0.004 | 0.004 |
0.200-0.299 | 0.005 | 0.005 |
0.300-0.310 | 0.006 | 0.006 |
0.320-0.499 | 0.006 |
Grade
TYPE | C | Si | Mn | P | S | Ni | Cr |
AISI302 | 0.15 | 1.00 | 2.00 | 0.045 | 0.030 | 8.0-10.0 | 17.0-19.0 |
304 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.0-10.0 | 18.0-20.0 |
304HC | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 8.0-10.0 | 17.0-19.0 |
304L | 0.3 | 1.00 | 2.00 | 0.045 | 0.03 | 9.0-13.0 | 18.0-20.0 |
316 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 10.0-14.0 | 16.0-18.0 |
316L | 0.03 | 1.00 | 2.00 | 0.045 | 0.03 | 12.0-15.0 | 16.0-18.0 |
321 | 0.08 | 1.00 | 2.00 | 0.045 | 0.03 | 9.0-13.0 | 17.0-19.0 |
430 | 0.12 | 0.75 | 1.00 | 0.04 | 0.03 | ----------- | 16.0-18.0 |
430F | 0.12 | 1.00 | 1.25 | 0.06 | 0.15 | ----------- | 16.0-18.0 |
