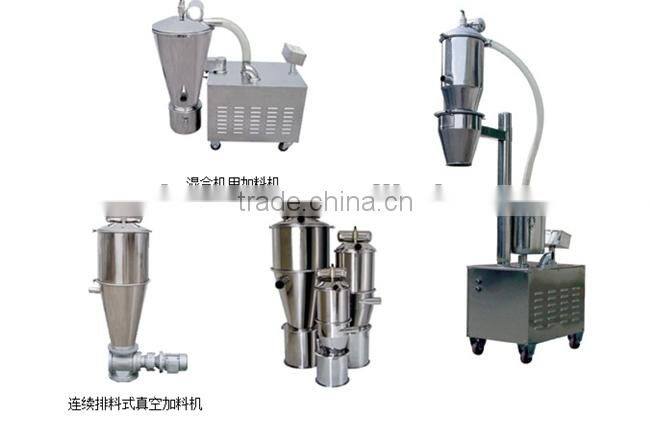

ZFS Automatically Electric Powder Vacuum Loading Machine

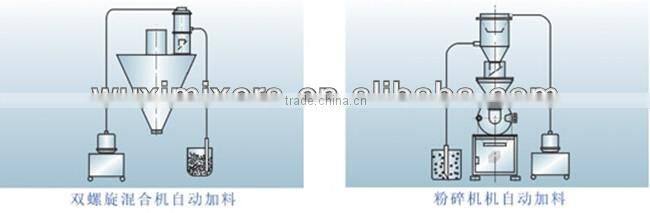

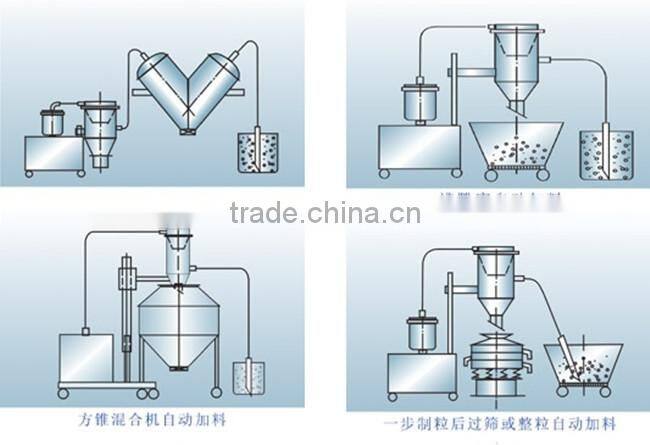

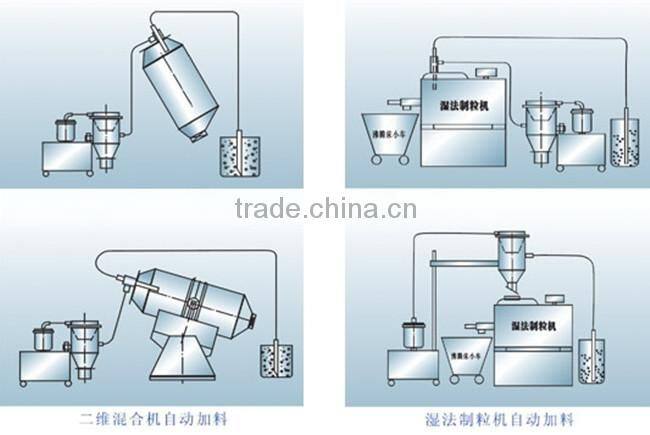

Vacuum powder delivery system is an integrated system conveying powder through vacuum suction and combined with filtering, reverse flow, feeding, valve controlling. System is mainly used in conveying powder, granular and powder mixtures, etc.; System can automatically transfer various materials to the feeder of packaging machines, injection moulding machines and pulverizer, but also can transport mixtures to the mixer and all kinds of mixed reaction tank directly. It solved the dust problem when feeding and reduced the labour intensity, as the preferred powder delivery system.

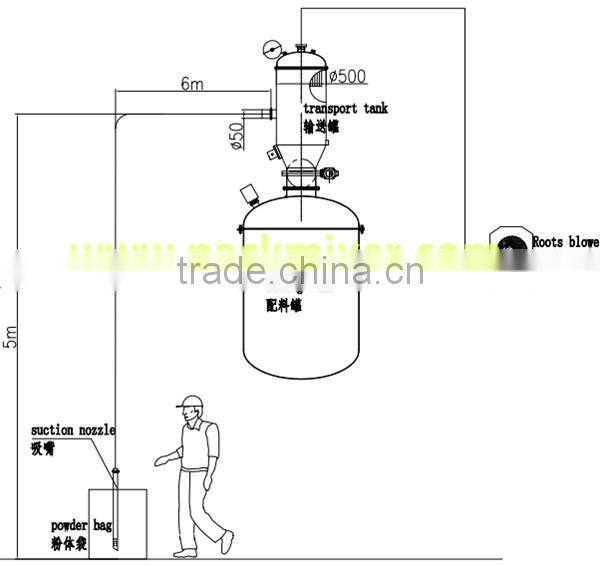

When the fan pumped air from powder collecting tank, strong negative pressure would be generated in the tank, and powder would be sucked with the air into powder collecting tank through the suction pipe. Filters in the powder tank will effectively prevent dust and small particles pumped out with air. In this process, accumulator tank next to the powder collecting tank is filled with the air of certain pressure. When the suction is finished, air in the accumulator tank will be released instantly, which will back blow the filter and overblow adsorption in the filter. So the core of filtration can maintain a normal filtration area and won’t affect the yield

The entire vacuum powder delivery system is composed of the following components:

1.Powder collecting tank

2.Filtration system

3.High-pressure fan unit and valve

4.Accumulator blowback and pulse system

5 Automatic unloading device

6.High-frequency vibration assisted discharging device

7.Material level control system

8.PLC automatic control system

9.Absorption and discharge piping valve system
