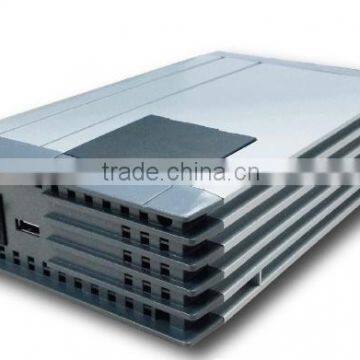

Pure Sine Wave Solar Inverter 350Watt
- Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Beijing, China | Brand Name | Sunpower | |
| Model Number | ParaWatt350w | Output Power | 301 - 400W | |
| Output Type | Single | Size | 199(L) x 124(W) x 49(H)mm | |
| Weight | 0.8kg | Input Voltage | 12V/24V | |
| Output Voltage | 220V/230V/240VAC | Type | DC/AC Inverters | |
| Output Frequency | 50/60Hz±3% |
Product Description
Specifications
1.High efficiency 88%~89%2.Input & output fully isolation design
3.EMC, multi-protection
4.Ultra-compact design, low weight
Pure Sine Wave Solar Inverter 350Watt:
Product Information:
ParaWatt Series inverter is a leading product in the industry, which has high cost performance. LED indicating lights can work under -25°C ambient temperature.
Advance circuit design and high standard choice of components maximized its adaptability to inductive and capacitive loads. ParaWatt series inverter can be used in cars, yachts and solar systems.
The superior performance and reliable quality makes ParaWatt series inverter the best choice for your requirements.
.
Product features:
l High efficiency 88%~89%
l Input & output fully isolation design
l THD <3%
l High surge capable of starting motor load
l EMC, multi-protection
l Temperature controlled cooling fan
l Ultra-compact design, low weight
l Brackets can be detachable and mounted; suit for different environments
l Output connector is designed on the top of chassis, suit for all kinds of connection modes
l USB interface 5V/12V
Protection functions:
1. Low voltage
2. Over voltage
3.Over load
4.Over temperature
5.Short circuit
Specifications:
Item | Para Watt 350W |
Output power | 350W |
Surge rating | 700W |
Frequency | 50/60Hz±3% |
Output wave | Pure Sine Wave (THD <3%) |
AC output voltage | 220V/230V/240V±3% |
Efficiency | 88%(12V)/89%(24V) |
Input:
Input voltage | 12V | 24V |
Input voltage range | 10.5-15V | 20-30V |
No load current draw | <0.6A | <0.3A |
Protection:
DC input voltage | 12V | 24V |
Low voltage shut | 10.5±0.3VDC | 21.0±0.3VDC |
Low voltage resume | 12.0±0.3VDC | 24.0±0.3VDC |
High voltage shut | 15.0±0.5VDC | 30.0±0.5VDC |
High voltage resume | 14.5VDC | 29.0VDC |
Auto resume | Yes | |
Auto Protection | Over load, Over voltage, Low voltage, Over temperature, Short circuit | |
Cooling | Temperature and loading controlled cooling fan | |
