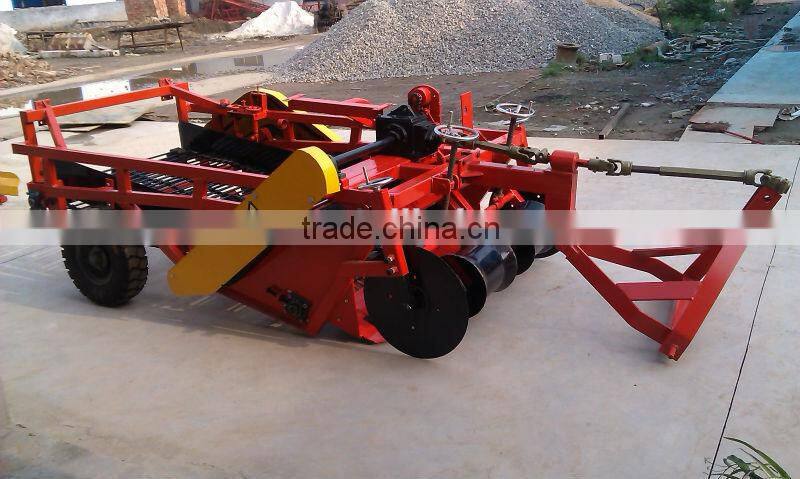

ANON Tractor Mounted Potato and Onion Harvester
- as required
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Application | potato harvester | |
| Type | Combine Harvester | Drive Type | Gear Drive | |
| Usage | Potato Harvester | Place of Origin | Hubei, China | |
| Brand Name | ANON | Model Number | AN4U-1600A | |
| Dimension(L*W*H) | 3300X3900X3100mm | Weight | 1200kg | |
| Certificate | Other | Warranty | 1 year | |
| After-sales Service Provided | Overseas service center available |
Product Description
ANON Tractor Mounted Potato Harvester
Description:
1.he 4U series Potato Harvester has good performance and high effiency ,low breakage rate.
2.Potato harvester are mainly used for harvesting of potatoes, garlic, sweet potatoes, peanuts, and other root crops under the ground .
3.Potato Harvester has simple structure, long service life and so on.
4.The equipment has been approved by the State Patent Bureau for utility model patents and exterior design
Specification:
Model | AN4U-1600A |
Number of rows/performance | Two/Three rows(Auto- Loading) |
Spacing(cm) | 55-80 |
Productivity(Mu/h) | 8-15 |
Working depth(cm) | 25 |
Working width(m) | 1.6 |
Gain Rate(%) | ≥96 |
Skin Breakage rate(%) | ≤2 |
Matched power(hp) | 70-120 |
Total Weight(kg) | 1200 |
Overall Dimensions(mm) | 3300X3900X3100 |
Packing size(mm) | 2650x2100x1100 |
ANON Tomato Harvester
Description:
AN4U Series Potato Harvester has the merits of high efficiency, lower breakage, running fast without trembling,
and no blocking by the grasses. Moreover, the structure is simple and the operation life time is long, etc.
Specification for 4U series harvesters for potatoes :
AN-4U series potato harvester technical parameters | |||||||
Model | AUS4U-600 | AUS4UZ-600 | AUS4U-800 | AUS4U-1300 | AUS4U-1300B | AUS4U-1600 | AUS4U—1650B |
Row/Working mode | Single ridge/Scattering | Single ridge/Shake scattering | Single ridge/Scattering | Double ridge/Scattering | Double ridge/Loading arm | Double ridge/Scattering | Double ridge/Loading arm |
Harvest width(cm) | 60 | 60 | 80 | 130 | 130 | 160 | 165 |
Productivity (Mu./h) | 3--5 | 5--8 | 8--15 | ||||
Total weight(kg) | 180 | 160 | 220 | 560 | 800 | 700 | 1200 |
Matched power(HP) | 22--35 | 22--35 | 24--35 | 35--50 | 50--80 | 50-80 | 70--120 |
Working depth(cm) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Potato harvest rate | >96% | ||||||
Broken rate | <2% | ||||||
PTO shaft rotating speed(r/min) | 560/1250 | 560/1250 | 560/1250 | 560 | 560 | 560 | 560 |
Out dimension(cm) | 240*90*90 | 120*100*75 | 240*110*90 | 280*220*100 | 280*320*310 | 2500*170*100 | 330*390*310 |
Packaging size(cm) | 165*90*75 | 150*90*70 | 165*110*80 | 220*160*80 | 320*190*130 | 220*180*80 | 320*200*130 |
Types for 4U series mini potato harvester :

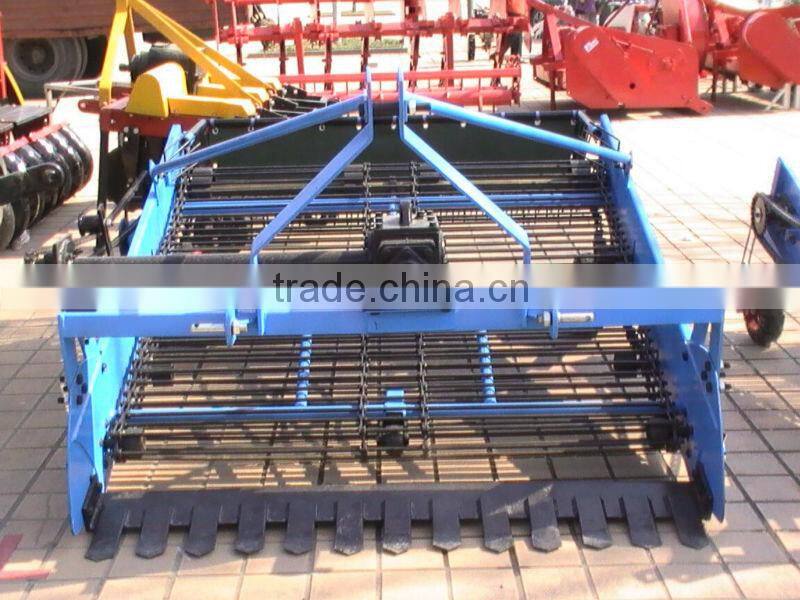

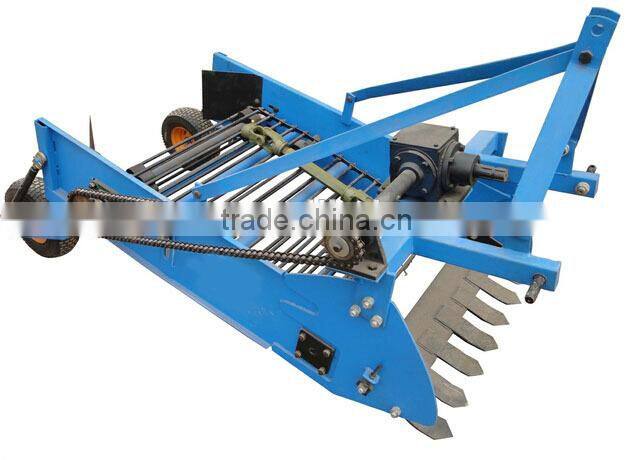

4U-600 potato harvester (single ridge and scattering): 4UZ-600 potato harvester ( single ridge and shaking scattering ) :

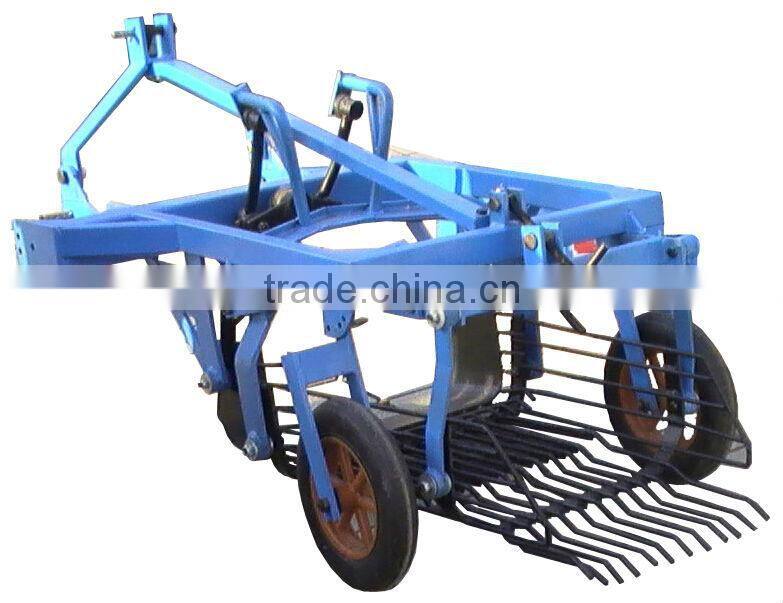

4U-800 potato harvester ( single ridge and scattering ) 4U-1300 potato harvester (double ridge and scattering)

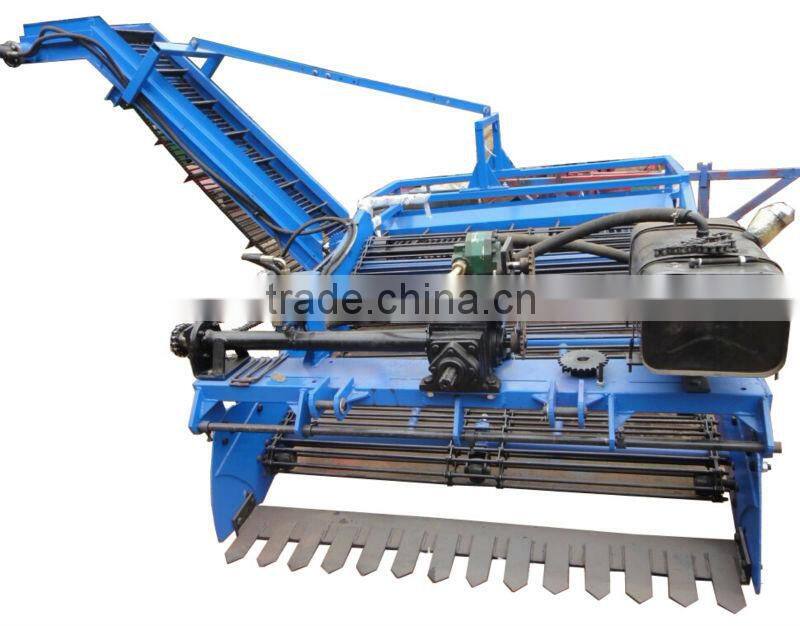

4U-1300B potato harvester (double ridge and loading arm) 4U-1650B potato harvester (double ridge and loading arm)
4U-1300 potato harvester ( double ridge and scattering )

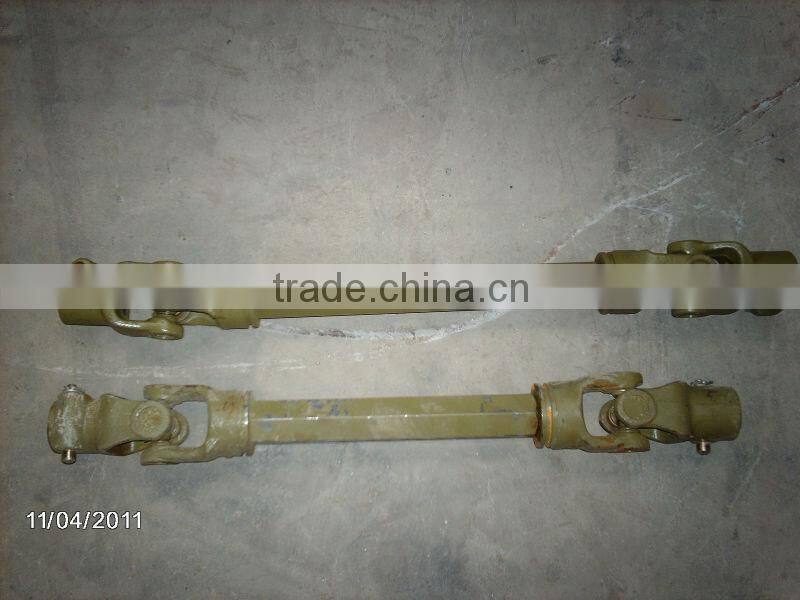

Transmission shaft for mini potato harvester :
connect with a tractor:
Application and advantages for mini potato harvester :
1.This product features a great performance of high efficiency, mainly used for harvesting rhizomatous crops like potatoes.
2.It features high efficiency, low failure rate, smooth running without vibration, simple structure and long service life, etc., with no grass blocking or clod leakage during working.
3.The anti-grass-winding function of the machine enables harvesting with seedlings without any blocking. Even in the farmland with more weeds, harvesting can still be carried on with this machine.
4.The residual agricultural film can be extracted so as not to affect the next crop’s growth.
How to choose the suitable type for mini potato harvester :
a.According to the fuctions:
Our 4U-600,4UZ-600,4U-800,4U-1300,4U-1600 potato harvester can harvest and vibratively separating potatos and soil blocks .
4U-1300B and 4U-1650B potato harvester can both harvest and vibratively separating potatos and soil blocks ,and converying potatos to the
trailer bucket for collection.
b.Acoording to the tractor horsepower:
22-35hp tractor->>4U-600,4UZ-600,4U-800
35-50hp tractor->> 4U-1300
50-80hp tractor->>4U-1300B,4U-1600,4U-1650B
80-120hp tractor->>4U-1650B
c.Acoording to the potato row:
1 row ->> 4U-600,4UZ-600,4U-800
2 row->> 4U-1300,4U-1600, 4U-1300B and 4U-1650B
d.According to the cutting width:
cutting width :60cm->> 4U-600,4UZ-600
cutting width :80cm->>4U-800
cutting width:130cm->>4U-1300, 4U-1300B
cutting width:160cm->> 4U-1600
cutting width:165cm->> 4U-1650B

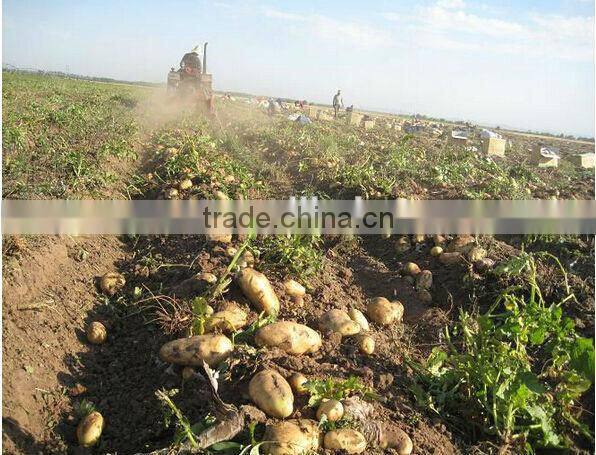

Effects for mini potato harvester
