Small and Mini Timing Pulleys
- shanghai/tianjin/ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Timing | Material | Steel | |
| Place of Origin | Sichuan, China | Brand Name | MIGHTY | |
| Model Number | MXL, XL, L, 3M, 5M |
Product Description

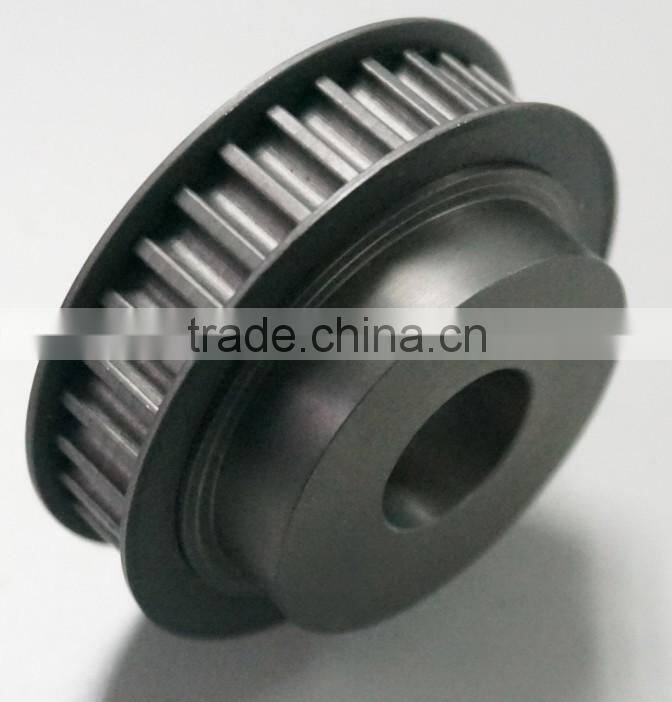

Small and mini timing pulleys
Timing Belt pulley are one of the most important part of Power Transmission drives.
They exhibit important properties such as fixed speed ratio, no re-tensioning after installation, low maintenance with wide variety of power transmission capacities and drive speeds. There are two main types of timing belt pulleys, they are to suit the classical timing belt and the metric HTD timing belts.
Classical timing belt pulleys are imperial in their measurements, have a square profile and use the designations XL, L, H, XH & XXH, while the metric HTD pulleys have rounded profiled teeth and their designations are 3M, 5M, 8M and 14M.
Timing Pulleys
1. Plain bore: MXL, XL, L, H; T2.5, T5, T10; AT5, AT10; HTD 3M, 5M, 8M, 14M.
2. Taper bore: XL, L, H, XH; HTD 5M, 8M,14M.
3. Material: Aluminium, Cast Iron, Steel.
4. Surface Treatment: Black, Phosphate, Zinc Plating, Hard anodized, Nitriding, Dichromate.
5. Teeth Number is from 9 to 216.
6. Equipment:Hobbing machine,Drilling machine,CNC machine,Milling machine,Gear shaper,Grinder etc.
7.Tolerance: As per customer's requirement.
8.OEM and ODM orders are welcomed.
