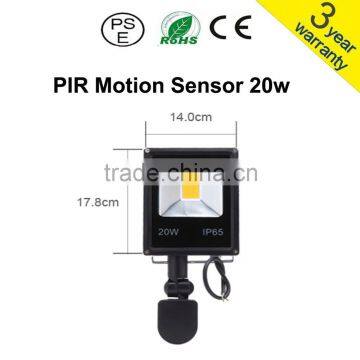

20w PIR Led Floodlight CE ROHS 3 years warranty

  20w PIR Led Floodlight Specification

• Product Name: 10w,20w,30w , 50w avaliable

• PIR Motion sensor led flood light

• Luminous Flux: 90-100Lm/w

• Color: Gray, black

• LED Color: Cool White/Pure White/Warm White

• Shell Material : High Strength Aluminum

• Cover Material: 5mm High Strength Glasses

• Beam Angle: 120°

• Color Temp: 2700-6500K (White)

• Waterproof: IP65 waterproof

• Lifespan Time : > 50,000 hours

• Work Voltage : AC 85-265V

• Warranty time : 3 Year

• Application: Play Grounds, Front or Back Yards; Advertisement Billboard; Construction Building, Garden

Adjustment:
1. LUX: Adjust the working time (Day or Night)
A. Sun position (Maximal): the sensor will work for the whole daytime.
B. Moon position (Minimum): the sensor will work only at night automatically.
2. TIME: Adjust the delay time of the sensor (6sec~6min)
3. SENS: Adjust the sensitivity of the sensor.

Caution: The Brown wire is Firewire; blue wire is Netural wire; green-yellow wire is Ground wire!

Please follow this instructions below if have problem with the PIR Light
Turn LUX control to maximum to set up unit in daylight (or night)
Turn TIME control to minimum, typically light stays on for about 6 seconds
Turn SENS control to minimum – this unit is very sensitive to movement
Cover the sensor with a cloth, cardboard or tape
Now Power it
Light comes on for 6 seconds and then goes off
NOW you can remove the cover and make adjustments (adjustments made in the installation period do not turn off the light)
At dusk, adjust LUX anticlockwise so unit JUST does not operate. As it gets darker test it by walking or moving your hand in front of it. Turn it clockwise a tiny amount if it still does not illuminate to a moving hand.
Increase SENS clockwise if you need to – perform walk tests – unit is much more sensitive to walking across the field of view than walking towards the PIR lamp unit
Finally, adjust TIME to give the length of illumination you need after a movement is detected

Please contact us if have any questions!
