Home > Products > Metal Wire > Galvanized External Wall Thermal Insulation Welded Wire Mesh,welded Mesh (factory)

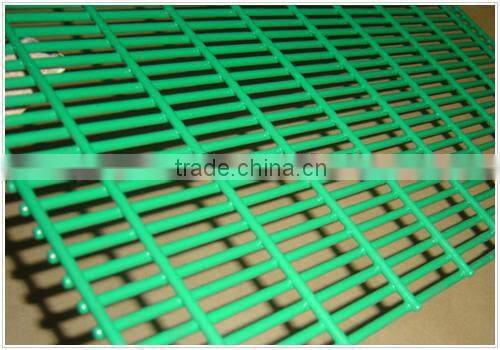

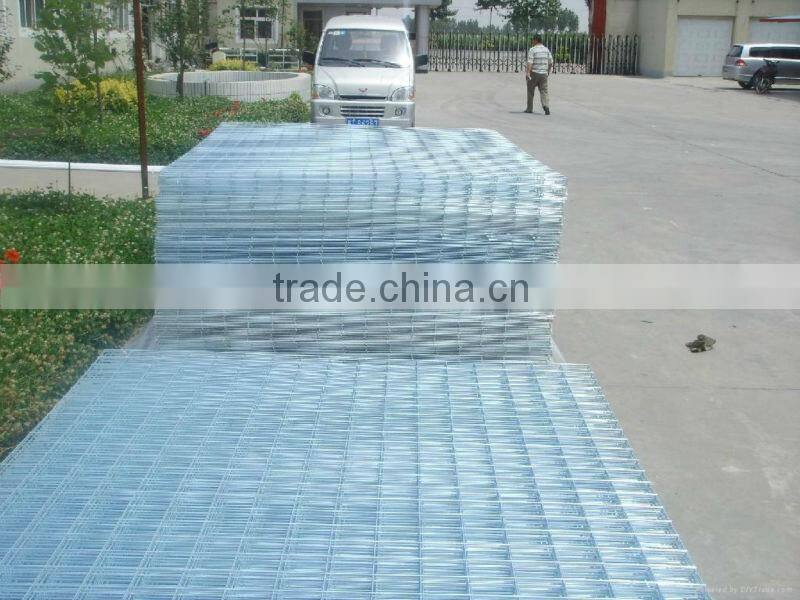

Galvanized External Wall Thermal Insulation Welded Wire Mesh,welded Mesh (factory)
- xingang
You May Like
Product Details
| Place of Origin | Hebei, China | Material | Galvanized Steel Wire | |
| Type | Welded Mesh | Application | Screen | |
| Weave Style | Other | Technique | Welded Mesh | |
| Model Number | sq | Brand Name | sq |
Product Description
Specifications
1.external wall thermal insulation2.galvanized welded wire mesh
3.ISO9001:2008
4.package: brown packing paper
Welded Wire Mesh
1. Welding style:
Hot dipped galvanized after or before welding
Electro galvanized after or before welding
2. Use:
Welded wire mesh is used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
3.Features of welded wire mesh:
a> made of high quality steel wire.
b> various configurations and sizes.
c> used for the loose strata to avoid falling rocks.
d> suitable for shotcrete applications.
e> range of sizes to suit roadway width and bolting patterns.
f> easy installation
g> available in black or hot dip galvanized
h> size of wire aperture: 50x50mm,100x100mm,150x150mm,200x200mm, or according to customer request.
i> Max length:6mm
j> width:1200mm,1700mm,2400mm, or according to customer request.
k> diameter of steel wire:3.15mm,4mm,5mm,6mm. or according to customer request
4.Specification:
GAUGE | MESH | W X L | N.W/ROLL | LOAD CAPABILITY |
BWG14 | 1" X 1" | 3' X 100' | 56 | 240 |
| 2" X 1" | 3' X 100' | 41 | 245 |
BWG15 | 1" X 1" | 3' X 100' | 42 | 275 |
| 2" X 1" | 3' X 100' | 32 | 285 |
BWG16 | 1" X 1" | 3' X 100' | 35 | 300 |
| 2" X 1" | 3' X 100' | 27 | 360 |
| 3/4" X 3/4" | 3' X 100' | 47 | 300 |
BWG17 | 1" X 1" | 3' X 100' | 28 | 360 |
| 1" X 1/2" | 3' X 100' | 41 | 330 |
| 3/4" X 3/4" | 3' X 100' | 36 | 335 |
BWG18 | 1" X 1" | 3' X 100' | 19 | 475 |
| 1/2" X 1/2" | 3' X 100' | 40 | 415 |
| 1" X 1/2" | 3' X 100' | 29 | 415 |
| 3/4" X 3/4" | 3' X 100' | 26 | 440 |
BWG19 | 1" X 1" | 3' X 100' | 14 | 565 |
| 1/2" X 1/2" | 3' X 100' | 28 | 490 |
| 1" X 1/2" | 3' X 100' | 20 | 525 |
| 3/4" X 3/4" | 3' X 100' | 19 | 545 |
BWG20 | 1" X 1" | 3' X 100' | 10 | 740 |
| 1/2" X 1/2" | 3' X 100' | 20 | 580 |
| 3/4" X 3/4" | 3' X 100' | 13 | 630 |
BWG21 | 1/2" X 1/2" | 3' X 100' | 16 | 700 |
BWG22 | 1/2" X 1/2" | 3' X 100' | 13 | 800 |
BWG23 | 1/4" X 1/4" | 3' X 100' | 20 | 800 |
5.picture
