1 YEAR LIMITED WARRANTY

 HUGE 320 LITRES PER MIN. F.A.D
 60MM CYLINDER BORE
 0.73HP (540WATTS) PERMANENT MAGNET MOTOR

   WITH SEALED BEARINGS
 2.5M POWER LEADS WITH HEAVY DUTY SOLDERED BATTERY CLAMPS
 8M HIGH PRESSURE RUBBER AIR HOSE
 SCREW ON OR THUMB LOCK TYRE VALVE ADAPTORS
 45 MINUTE DUTY CYCLE
 CAN BE PERMANENTLY MOUNTED.

GENERAL INFORMATION

 1 YEAR LIMITED WARRANTY
 SPECIFICATIONS 320L/MIN
 VOLTAGE 12 VOLT DC
 CYLINDER BORE DIA. 60MM
 MAXIMUM CURRENT 45AMP
 MAXIMUM PRESSURE 150PSI

 CAST ALLOY HEAD FOR GREATER HEAT DISSIPATION

   & DURABILITY

 BUILT IN WASHABLE AIR FILTER IN HEAD
 THERMAL CUT OUT PROTECTION - AUTOMATIC RESET - ACTIVE AT 105°C
 MAX. DUTY CYCLE 45 MINUTES AT 40PSI @ 24°C
 MOTOR 0.73HP (0.54KW)
 METAL COOLING FINS FOR GREATER AIRFLOW AROUND MOTOR
 2.5M WITH HEAVY DUTY SOLDERED BATTERY CLAMPS
 ON/OFF TOGGLE SWITCH WITH DUST COVER
 CURRENT PROTECTION 45AMP CIRCUIT BREAKER WITH RESET

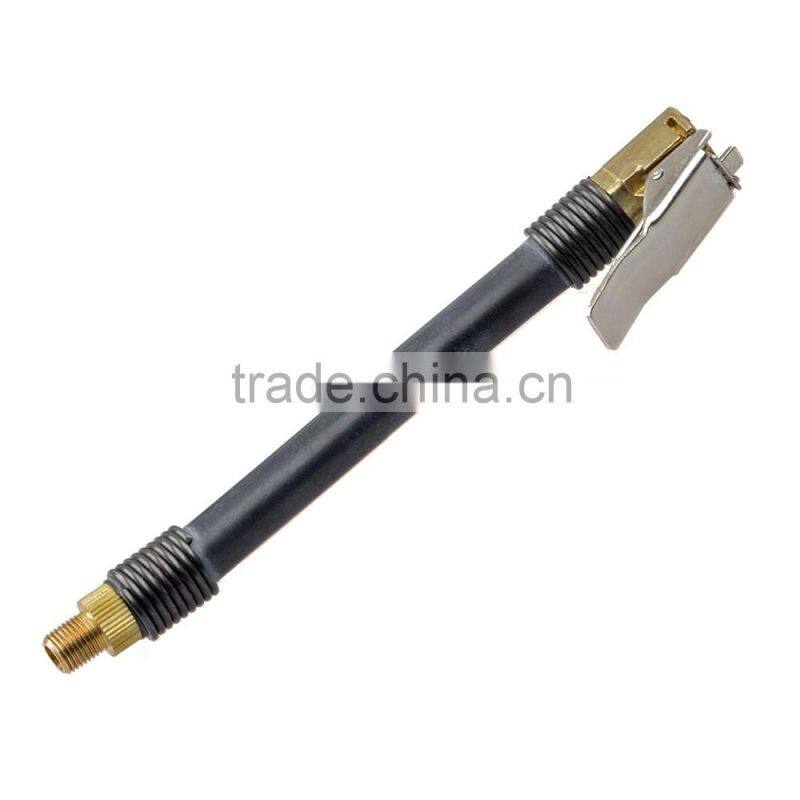

 ADAPTOR HOSE 0.5M RUBBER HOSE WITH THUMBLOCK

   VALVE CONNECTOR

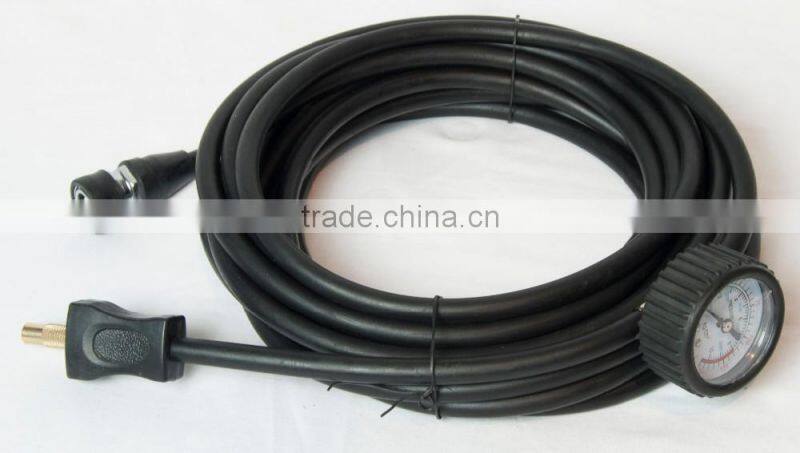

 8M RUBBER HOSE , GUAGE WITH DEFLATION BUTTON &

   QUICK CONNECTOR WITH   RUBBER HEAT PROTECTION GUARD
 VALVE CONNECTORS 1 X SCREW TYPE AND 1 X THUMB LOCK

   QUICK CONNECTOR
EASY TO READ 50MM GAUGE 0-150PSI (PSI/KPA/Kg/CM3)
OVERALL DIMENSIONS (L X W X H) 33.5CM X 15CM X 23CM
 8.7KGS NET WEIGHT

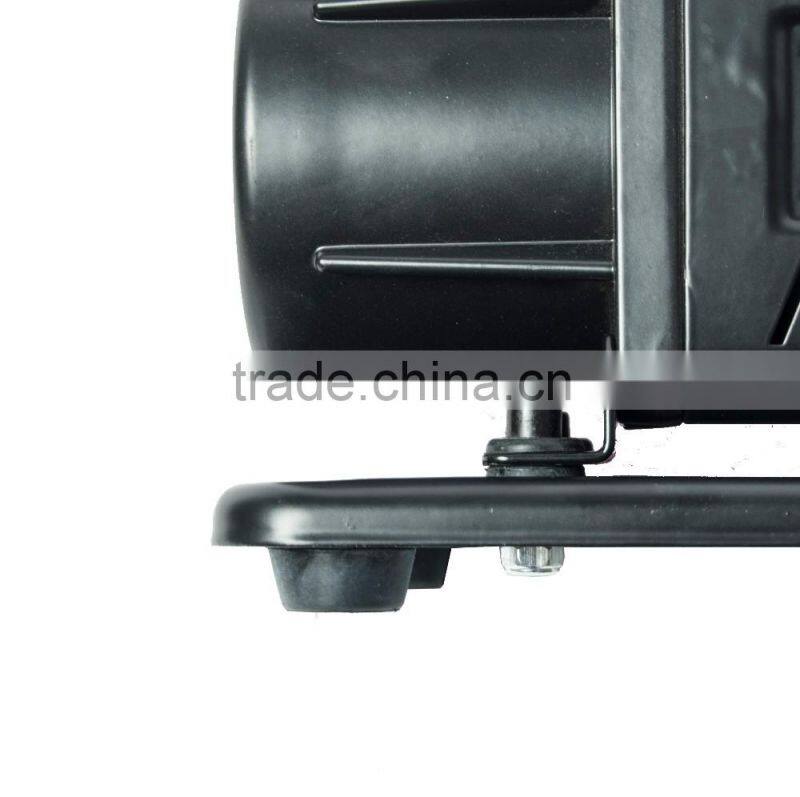

 METAL SAND TRAY WITH RUBBER SHOCK ABSORBING FEET

   AND ANTI-VIBRATION    MOUNTS, CAN BE PERMANENTLY

   MOUNTED TO A VEHICLE

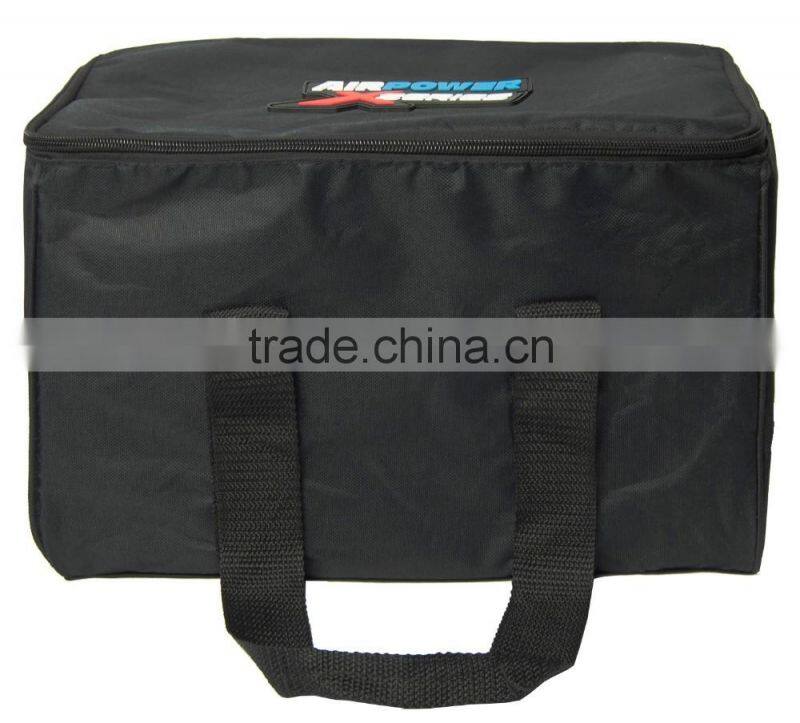

 HEAVY DUTY STORAGE BAG WITH ZIPPER. INCLUDES OPERATING MANUAL.
 3 X ACCESSORY INFLATION ADAPTORS FOR

   SPORTING / CAMPING EQUIPMENT

OPERATING SPECS

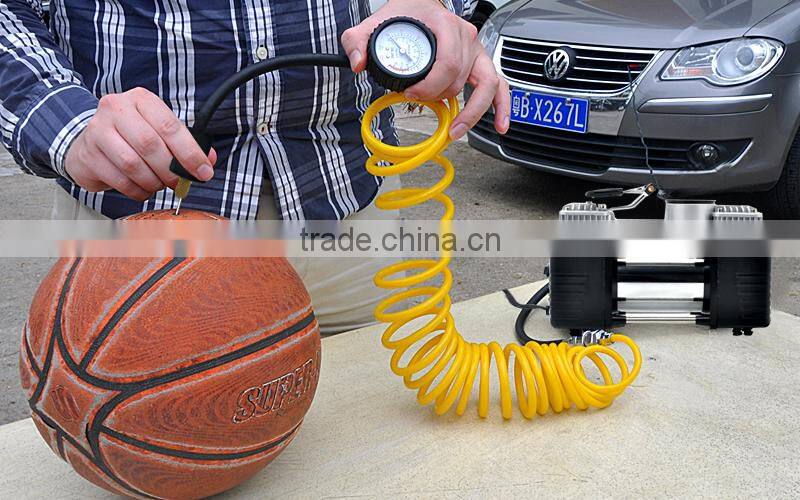

Thank you for watching this portable compressor, all the performance and features you are looking for in a top quality portable air compressor.

It features:

* Conveniently Located on/off switch
* Simple and convenient snap-on air outlet.
* Cast Alloy Air pump casing with cooling fins for quick heat dissipation
* Stainless steel valves and high performance PTFE piston
* Heavy duty 2-3 Metre power cord with battery clamps and a 30amp in-line fuse
* Automatic built-in thermal cut-on switch protects the motor against damage from overheating
* Alloy base tray can be easily removed so you can permanently mount the compressor, using the kit provided
* Three accessory nozzles included for pumping up balls and inflatable toys, etc
* Alloy base tray keep the compressor stable and separated from sand and dirt
* The gearless direct drive design is quiet and highly efficient
* Anti-vibration rubber feet
