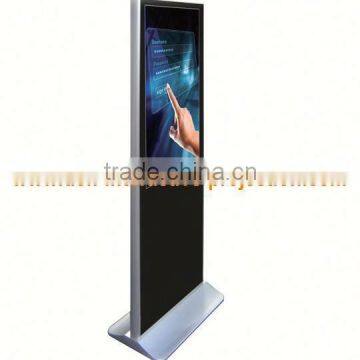

DEFI 42 Inch Floor-standing Interactive Touch Totem di

High quality touch screen monitors for touch koisk and touch table.

Product features

With touch screen LCD; 1080p high-definition broadcast, perfect color reproduction and saturation, high brightness, high
Contrast, wide viewing angle; completely impact resistance, scratch resistance, corrosion resistance, and anti-reflection
screen, Intel Pentium TM dual-core processor; 4G DDR2 memory, 320GB high speed hard disk; big size touch interaction
machine (optional customized configuration), used international advanced touch technology, touch precision, responsive,
combined with excellent large LCD broadcast, while integrated handwriting and computer network technology; through
multimedia authoring tool, showing text, images, animation, high-definition video, audio, electronic files, Internet information
and other multimedia data vividly one to one to the public, to give the audience maximum visual impact and unprecedented
sense of touch.

Applications

1. Field of education and training
* Get preparation documents directly via the touch screen, reduce the amount of time writing on the blackboard;
* Students can answer questions by touching, making teaching more interactive;
* Repeat and playback software installation can record all the lectures;
* Clean and environmental protection, improving the strength and image of the school.
2. Office or meeting places
* Get preparation documents directly via the touch screen, reduce the amount of time writing on the blackboard;
* Clean and environmental protection, conference without taking notes
* Explanation and demonstration can be finished by one person at the same time, saving time and effort;
* Analysis and discussion of meeting and article content.
3. Application at command meeting of military & police
* Support multi-screen multiplayer scene to observe military exercises and simulating;
* Fully embodies information links among all levels of commanded system;
* Help to improve the management of education and military forces’ fighting coordination.
4. Transportation dispatching
* Traffic control
* Traffic Scheduling
* Accident handling
* Case analysis

Product parameters

LCD panel

Size: 42 Inch 52 inch 55 inch 65 inch
broadcast area(mm)/mode: 930*523 16:9 1154*650 16:9 1210*682 16:9 1430*804 16:9
maximum Resolution: 1920*1080 1920*1080 1920*1080 1920*1080
Broadcasting color: 16.7M 16.7M 16.7M 16.7M
Pitch(mm): 0.484*0.484 0.485*0.485 0.486*0.486 0.489*0.489
Viewing angle: 170°/170° 170°/170° 170°/170° 178°/178°
Brightness: 450cd/sqm 450cd/sqm 450cd/sqm 500cd/sqm
Contrast: 1000:1 1000:1 1000:1 1000: 1
Response time: 4ms 4ms 4ms 4.5ms
Operating: life(hrs) ≥60000

Touch panel

Specification: Infrared touch
Positioning accuracy: ±2mm
Transmittance: ≥92%
Hardness: 7H
Click-on way: signal click/multiple click ,optional
Response time: ≤10ms
Output resolution: 4096*4096
Operating life: Single click more than 60 million times

Computer

Mother board(optional): INTEL D945GCLF2D
CPU optional Intel: Atom TM processor Atom 330 1.6G
Memory(optional): Kingston DDR2 800 1G/2G
hard disk(optional): 3.5 inch Seagate 7200 SATAⅡ160G/250G/320G
2.5 inch Hitachi 5400 SATAⅡ160G/250G/320G
CD-ROM(optional): Notebook Combo /DVD±RW
Mouse(optional): Wireless waterproof mouse kit
L/R audio input: headset jack *2
L/R audio output: 8ohms2 W *2
USB2.0/ serial ports /SP2 input:  2( only for touch screen)

Video

video system: PAL/NTSC/SECAM

OSD

broadcast menu language: Chinese/English (multiple language optional)

Power voltage

Input voltage: Exchanged current 100~240v 50/60HZ
maximum power consumption: ≤650W
standby power consumption: ≤3W

Appearance

Materials: Cold rolled steel SPCC/ aluminum panels/customized
Appearance colors: white /black/ customized
Size: 1568.3*942.4*154.5(for reference only)
Installation: Wall-mounted(standard)/base

Environment

Operating temperature/humidity:0°C~50°C/20%~80%
Storage temperature/humidity :-10°C~60°C/5~95%
Certificates: CE/FCC/3C/RoHS
Accessories: Manual, warranty card, certificated remote control , data cable 1.5M, power cord 1.8M
Remarks:Multi-point function: three-dimensional model supported; zoom, deflation,
rotation, moving of image, video, songs and other media content operation
supported, customized optional functions
*Mother board, CPU, hard disk, Memory, customized touch screen
* The above parameters are for reference only, to prevail in kind specific
data.

Payment Terms: T/T, Western Union

Delivery Detail: about 7-30 working days after the exact order is confirmed
Packaging Details: packing by wooden case+ inner cartoon
Packing list: one media player, 4pcs keys, 1pcs English manual, 1pcs remote controller

Shipment and Payment

• All ordered units will be shipped out within 24-48 hours via FedEx or DHL after order confirmation and payment.
• To protect the units from potential damage during the delivery and save the logistics cost, all units will be delivered to customers in disassembled forms and without glass, we do recommend clients to order the tempered glass with 4mm-5mm thickness locally, that would be much convenient and cheap.
• We could guarantee the lead time within 48 hours for regular size, while we couldn’t promise the delivery time on international shipment due to customs clearing time in different countries.
• shipping usually takes 3-5 working days, correct delivery cycles dependent on the country delivered to
• BY EMS (normally take 7-15 working days for delivery, Remote area or Customs Clearance reason, it will be a little longer)
• To sure the items been correctly delivery to you, pls leave the correct shipment information specifically contact phone number
