Roof Tile Asphalt Shingles
- QINGDAO NINGBO ETC
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Kunteng | |
| Model Number | asphalt roofing shingles | Material | Coloured Glaze | |
| Type | Plain Roof Tiles |
asphalt roofing shingles:21 pcs/bundle, 3.1 sqm/bundle, 800 bundles/20ft' container
out packing: PE bag with fumigating pallet
Product Description

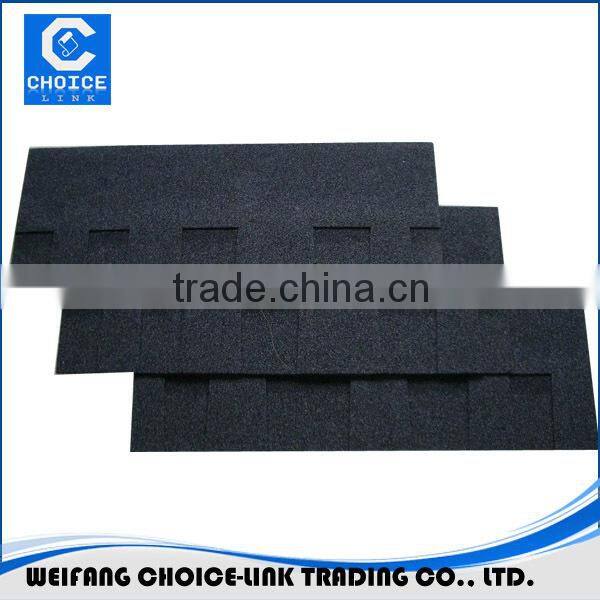

Roof tile asphalt shingles
This is the China standard of GB/T20474-2006. If this can not meet your requirement , pls let us know and we will produce it for you.
Product Specifications | |
|
|
Mode | 3-tab Asphalt Shingles |
Length | 1000mm±3mm |
Width | 333mm+5mm/333mm-3mm |
Thickness | 2.6mm-2.8mm |
Weight per bundle | 25kg±1kg |
Packing | 21 pieces/bundle |
Square meters/bundle | 2.32 square meter/bundle |
Shingles per square meter | 7 pieces |
|
|
single layer asphalt shingles Description
Number | Item | Single layer | Double layer |
1 | Fusible content(g/m2)≥ | 1000 | 1800 |
2 | strength/(N/50mm) ≥ | Longitudinal | 500 |
Traverse | 400 | ||
3 | Heat resistance (90°C) | No sliding,flowing,Dripping | |
4 | low temperature flexibility(10°C) | No crack | |
5 | Tearing strengh/N ≥ | 9 | |
6 | Water Impermeability(0.1Mpa,30min) | Impermeability | |
7 | Anti-nail Extraction Performance/N ≥
| 75 | |
8 | Adhesive Performance of Mineral Grains b/g ≤
| 1.0 | |
9 | Peeling Strength of Mental c/(N/mm)≥ | 0.2 | |
10 | Artificial Climate Accelerating Ageing | Surface
| No slippering,no flowing no driping
|
E≤Chromatism
| 3 | ||
(10°C) Flexibility
| No Crack
| ||
11 | Anti-wind Performance | Pass | |
12 | Heat-resistance of the Self-adhesive Glue
| 50°C | sticky |
75°C | ≤2mm Slipper
| ||
13 | Peel Strength of the Overlay /N ≥ | --- | 20 |
a. Cold flexibility can be customized b. Apply to asphalt shingle covered by mineral grains (pieces) only. C.Apply to asphalt shingle covered by metal foil only | |||
class-fiber-tile’s function and characteristic
- Wide-Ranging Choice of Color and Exterior
- For All Climates and Strong Adaptability
- Light Weight and Environmental Conservation Roof System
- If Working correctly, No Need to Mend
- Wide Range of Application
- Non-Special Fittings, Lower Cost
- Keep Clean by itself
- Heat Insulation and Absorbing Noise
- Class A Fireproof and Wind Resistance
