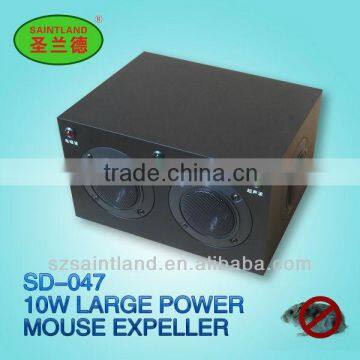

SD-047 Electronics Mouse Expeller

Specifications

1. Working Principle:

Adapting modern micro-electronics technology,this device can give out 3 kinds of electronic waves simultaneously and alternatively:electro-magnetic wave and 2 kinds of special ultrasonic waves ,which can act upon the hearing and the nervous system of the mouse and make them unpleasant and uncomfortable.So the mouse will flee away.Because the frequencies of the above electronic waves are changeable and alternative,so they can not make the mouse have “adaptability”and “immunity”.

Moreover,according to the principle of the BIONICS,this device also can give out mewing and rat crying whick will make the mouse flee away immediately.

When there is a power failure,an additional rechargable battery can be used.

As a summary of the experiences in technology and marketings for nearly 20 years,we have made out this SD-047 brand new product which is powerful,multi-functional and effective.

2.Usage and coverage:

(1).Mainly SD-047 can expel the mice. Also it can have restrains to the following

pests:cockroach,ant,spiders,cricket,bug,flea,moth even mosquitoes etc.

(2).Our products can be mainly used in the following places: ware-house,machine room, gain depot etc.

(3).The effective coverage is around 600—1000 square meter.

3.Operation Methods:

(1)Plug one end of the attached power line into the Power Socket on the left right side in the back panel. And plug the another end of the attached power line into the AC220V power socket. Then the three LED in the front panel will be lighting.The green LED will indicate the device working normally. The orange LED will indicate the ultrasonic waves working well and the red LED will indicate the Electro-magnetic wave working well. The orange LED and the red LED will be blinking and stopping according to the frequency changing and intermittence.

(2)There is a green TEST botton on the right of the back panel. Pressing this green botton, a very strong and irritative noise will be heard which will indicate the ultrasonic wave working normally. Please note: this irritated noise can only be heard when the ultrasonic waves working.

If press down the GREEN botton thoroughly when there is no any person in the wearhouse,this devise can give out intermittently irritative noise which can give the mouse away promptly.

(3)There is a red botton marked as “CAT/RAT CRY” in the left of the back panel.Pressing down this red botton,a cat crying and a rat crying can be heard alternatively. If press this red button again, the crying will be stopped.

(4)There is a DC socket in the right of the back panel. If there is a power failure,a rechargeable battery such as the car battery can be used in stead.Please note: If the device is powered by a rechargeable battery,the electro-magnetic wave will be stopped working so the red LED will not be lighting. When the devise is powered by AC power,the rechargeable battery will be charged automatically.

 Please be sure that the rechargeable battery will be connected in the correct Polarity

(5)There are two FUSE in the back panel.One is for AC(0.5A) and the another is for DC(2A).If there is faulty in the device,these two FUSE will be checked in the first.

4.Precautions:

(1) Never use the device outdoors and never put it in high-temperature and moist places. (2)AC 220V/.50Hz power system must be confirmed before using it.

(3)It should be used continuously without stopping.

(4)There should be no big obstructs in the front of the product because ultrasonic wave can not pass through the hard things.

(5)There are four loud-speakers installed in three directions, so this device should be installed along the wall not in the middle of the room.

(6)There will be some little hot in this device because the output power is rather big.

(7)The electro-magnetic wave will be stopped working when a rechargeable battery is used.

So the red LED will be stopped lighting in this case.

(8)The effects will been seen immediately as soon as this device Is used.But the best effectiveness will be reached after using it continuously for 3-4 weeks. Sometimes the mice may be more active at the beginning which shows the mice have been irritated. Then the mice will disappear after a period. Even few of mice remain temporarily, they will lost their ability of reproductions and invasions.

5.Technical Specifications:

(1)AC Power Voltage: AC220/50HZ       DC Power Voltage: DC 12V/ More than 2 AH.

(2) Consulption Power: 25W           Output Power: 10W

(3) Frequency Coverage:

   Electro-magnetic Wave: 0.8H ----10H     Intermittence: 160 seconds

   Ultrasonic Waves: 20—55KHZ / 32 khz   Intermittence: 40 seconds

   Cat/Rat Cry: Audio Frequency         Intermittence: 10 seconds.
