automatic gi and ppgi material roller shutter door roll forming machine
- Tianjin
- T/T
You May Like
-
best-selling used roller shutter roll forming machine
-
high quality roller shutter lath forming machine
-
best-selling color steel galvanized roller shutter door automatic
-
TY automatic aluminum shutter slat forming machine
-
new design roller shutter door making machine
-
standard roller shutter lath forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Other, steel door | |
| Production Capacity | 8~12m/min | Place of Origin | Hebei, China | |
| Brand Name | TY | Model Number | TY | |
| Power(W) | 4~5.5kw | Voltage | 380V 50HZ | |
| Dimension(L*W*H) | 7.2*1.3*1.5m | Weight | 4.5 ton | |
| Certification | ISO/CE | Warranty | one yaer | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
No. | used in India foam shutter forming machine | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 165mm |
3 | Rollers | 12rows |
4 | Dimensions | 3500*1450*151mm |
5 | Power | 3 3kw |
6 | Thickness of the plate | 0.3-0.6mm |
7 | Productivity | 10-15m/min |
8 | Diameter of the roller | Φ70mm |
9 | Weight | About 2.5T |
10 | Voltage | 380V 50Hz 3phase |
11 | Material of the cutting plate | Cr12 |
12 | Hydraulic | 40# |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
Industrial Process And Component Specification
No |
| Technical Specification |
1 | Manual Uncoiler | Usage:It is used to support the steel coil and uncoil it in a turnable way The steel coil is uncoiled by hand. Loading capacity:1.2T, Inner diameter: 500-508mm |
2 | Feeding Table | Put the raw material(steel plate) through the beach to manufacture and process It can guarantee that the products are neat Parallel and everything is uniformity Please refer to the equipment regulation to know the function of locate angle iron. |
3 | Main Roll Forming Machine | Material of rollers:45# steel,roller surfaces polishing, hard plating The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped |
4 | Shearing Mechanism | Flying saw cutting , Smooth surface without burr |
5 | Output Table | It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products. |
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
Working process

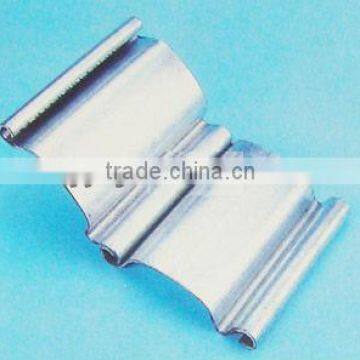

product and details show
Components of machine in this production line
FAQ
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
