New TZ-8 Limit Switch

FOB Price

USD $1 - $20 / Piece

200 Pieces(Min. Order)

Port Ningbo or Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	CNXY
Model Number	TZ-8	Protection Level	IP65
Operating Temperature	-5℃ to +65℃	Max. Current	24A
Max. Voltage	1500VAC

Product Description

Specifications

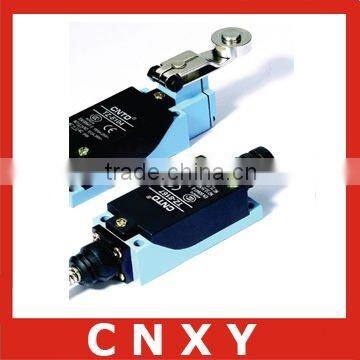

New TZ-8 Limit Switch
1.IP65 waterproof limit switch
2.Wide varity of actuators
3.Oil-proof construction
4.CE,CCC,ISO9001

New TZ-8 Limit Switch

Features
Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide varity of actuators, easily use

Contact Form

Ratings

Rated Voltage	Noninductive Load (A)				Inductive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 500VAC	5 5	5 5	1.5 1	0.7 0.5	3 3	3 3	2 1.5	1 0.8
8VDC 14VDC 30VDC 125VDC 250VDC	5 5 5 0.4 0.2	5 5 5 0.4 0.2	3 3 3	3 3 3	5 4 4	4 4 4	3 3 3	3 3 3
Inrush Current	N.C: below 24A, N.O: below 12A

NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has
an inrush current of 6 times the steady-state current.

Characteristics

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	25mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5°C to +65°C
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above Electrical: 500,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

Operating characteristics

Models	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167/8168/8169
OF Max.	750g	750g	750g	900g	900g	150g
RF Min.	100g	100g	100g	150g	150g	-
PT Max.	20º	20 º	20 º	1.5mm	1.5mm	30mm
OT Min.	50 º	50 º	50 º	4mm	4mm	-
MD Max.	12 º	12 º	12 º	1mm	1mm	-
OP	-	-	-	26 ± 0.8mm	37 ± 0.8mm	-
