2015 New waterproof IP65 on off electrical switches CHL-5330

FOB Price

US$ 1 - 10 / Piece

200 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

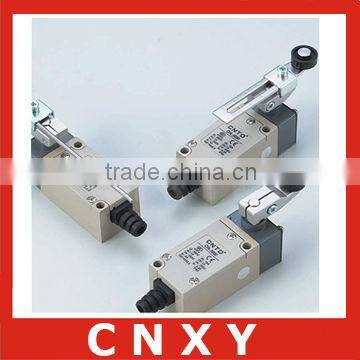

New waterproof limit switch

Features

Metallic bottom shell
Stainless steel roller,punch and spring
Strong electric property 10A ,250V,for 500,000 times

Electrical Life

Specifications

Product Features

Double Break Mechanism	INO+INC Force Break snap action
Rated Voltage / Current	10(4)A,125,250VAC / 6(2)A,380VAC For inductance Load ,Cos Φ =0.4
Contact Resistance	25mΩ max.(initial value)
Insultation Resistance	100mΩ min.(at 500VDC)
Dielectric Strength	1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC,50/60 Hz for 1 minute between each terminal and ground
Electrical Life	500,000 at 10A 250VAC Resistive
Mechanical Life	10,000,000 operations min.(under rated conditions)
Operating Speed	5mm/s to 0.5m/s
Degree of Protection	IP65
Ambient Temperature Rised	Max 30°C over ambient temperature at rated voltage/current
Conformed Standards	Cenelec EN 50041,EN 50047,IEC 337-1,VDE 0660
Operating Temperature	-5°C~+65°C (with no icing)
Storage Temperature	-5°C~+65°C (with no icing)
Ambient Operating Humidity	95% RH Max.
Shock Resistance	Mechanical durable:1000m/s²min.
Shock Resistance	Malfunction:300m/s²min.
Vibration Frequency	Malfunction:10 to 55Hz,1.5mm double amplitude
Terminal Screw Torsional Force	6-8 kgf-cm
Other Screw Torsional Force	Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
Bare Wire Diameter	Φ2 Max
Cable Diameter	Φ9 Max(IP 65 if use cable Φ8-9)
