Home > Products > Digital Wireless System > CTR40671,7" Digital Wireless Monitor with socking cup braket + transmitter box for truck, heavy duty one to one
CTR40671,7" Digital Wireless Monitor with socking cup braket + transmitter box for truck, heavy duty one to one
- SZ China or HK
You May Like
-
CTR40672,7" Digital Wireless Monitor with socking cup braket + transmitter box*2pcs for truck, heavy duty one to two
-
CTR40674,7" Digital Wireless Monitor with socking cup braket + transmitter box*4pcs for truck, heavy duty one to four
-
CTR4067AZ,3.5" Analog Wireless Monitor + transmitter box
-
CTR4067JP,3.5" Digital Wireless Monitor + transmitter box
-
CTR8912JP,3.5" Digital Wireless Monitor + Wireless license plate camera
-
2.4GHz wireless backup reversing kit, 7" wireless rear view system with wifi night vision IR camera for truck, heavy duty
Product Details
| Power | 9-32V | Place of Origin | China | |
| Model Number | CTR-CTR40671 | Warranty | 14 Months |
Product Description
Model no.: CTR-CTR40671

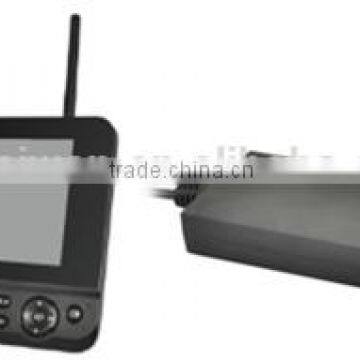

7" Digital Wireless Monitor with socking cup braket + transmitter box for truck, heavy duty one to one
7" Digital Wireless Monitor with one transmitter
- Resolution: 800xRGBx480
- Brightness: 250 cd/m2
- Contrast ratio: 500:1
- Video system: PAL/NTSC
- Video signal output: CVBS, 1Vp-p@75ohm
- Frame rate: 30 fps
- Video resolution: VGA
- Video compression: MPEG-4
- Operating Frequency: 2400-2483.5 MHz
- Bandwidth: 4.4(20dB BW) MHz
- Modulating/Demodulating Method: 16QAM,QPSK,BPSK
- Transmitting Power: +14dBm @ 16QAM EVM 5%, +18dBm @ QPSK EVM 8%
- Receiving Sensitivity: -72dBm@QAM, -85dBm@QPSK
- Safety: Proprietary Frequency Hopping Signaling With Digital Modulation- 32Bit ID
- Antenna Gain: 2 dBi(Omni-directional Dipole)
- Unobstructed Effective Range: ≥ 50M
- power voltage: DC +9V-32V
- power current: 650mA
- operating temperature: -10℃~+50℃
- storage temperature: -20℃~ + 60℃
- operating humidity: 15% ~ 85%(Max)
- monitor dimension: 214mm×157mm×26mm
- Transmitter box dimension: 66mm x 35mm x 12mm
