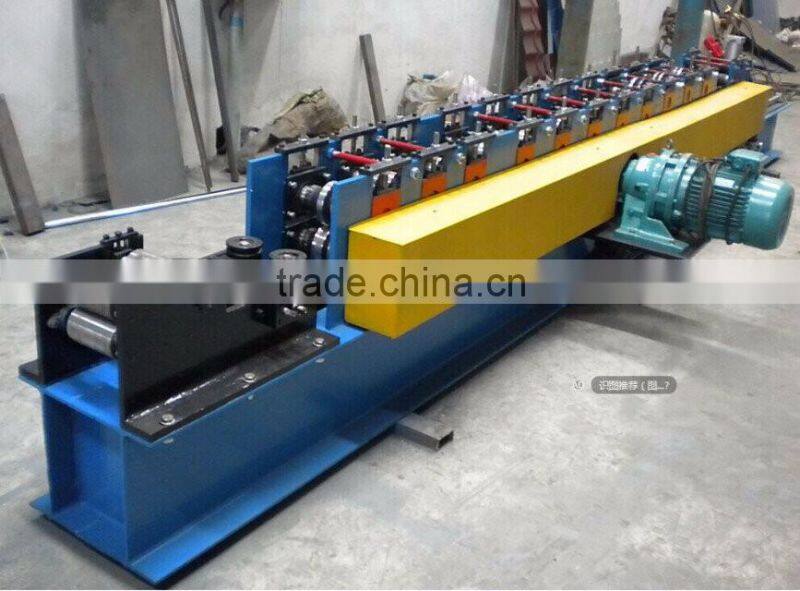

Metal Steel Light Keel Purlin Forming Machine
- Tianjin
You May Like
-
Stud and Track Manufacturing Machinery
-
Steel Strip Light Keel Stud and Track Roll Forming Machine
-
Steel Strip Stud and Track Production Machine
-
Steel Strip Frame Channel Stud and Track Roll Forming Machine
-
Stud and Track Forming Machine Company
-
Steel Profile Roll Former Machine for Drywall Stud and Track
Product Details
| Condition | New | Type | Other, Tile Forming and Cutting Machine | |
| Tile Type | Steel | Use | Other, roof truss | |
| Production Capacity | 14m per min | Place of Origin | Hebei, China | |
| Brand Name | TY | Model Number | 60 | |
| Power(W) | 3Kw+4Kw | Voltage | 380V,50Hz,3Phases | |
| Dimension(L*W*H) | 5200*680*1200 | Weight | 2.2T | |
| Certification | CE,BV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
metal steel light keel purlin forming machine
I. The specification of machine,
| No. | Main parameter of light gauge steel frame machine | |
| 1 | Production | CD 60 27;UD 27 23 |
| 2 | Roller station | 10 rows |
| 3 | Dimensions | 4000*800*800mm |
| 4 | Power | 3KW |
| 5 | Thickness of the plate | 0.3-0.8mm |
| 6 | Productivity | 25m/min |
| 7 | Middle plate thickness | 25mm |
| 8 | Diameter of the roller | 45mm |
| 9 | Weight | About 3T |
| 10 | Voltage | 380V 50Hz, 3 phase |
| 11 | Cutter Material | Cr12 |
| 12 | Roller Material | GCr15 |
II.Components of line,
| TY light gauge steel frame machine | ||
| SN | Photo | Technical Specification & Remark |

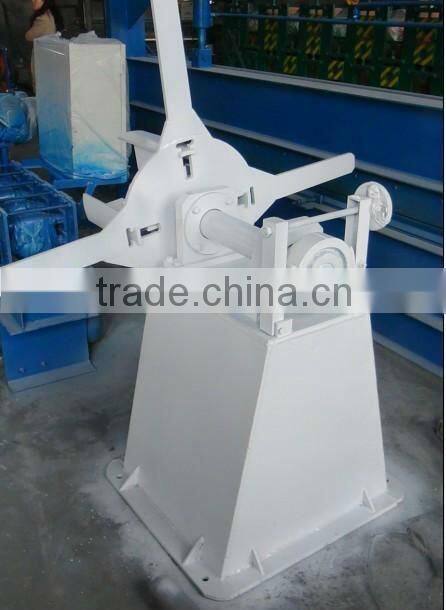

| 1 | Manual un-coiler
| Carrying capacity: 2t; Max coil width: 0.3m Operation: Manual |

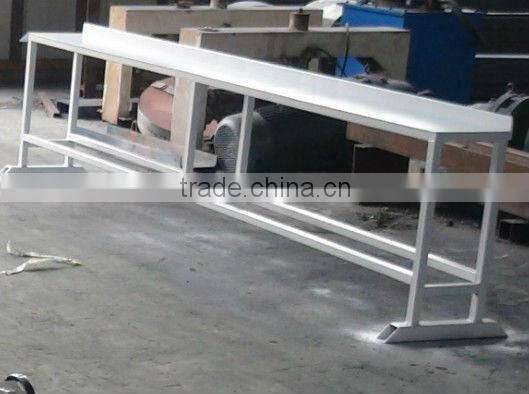

| 2 | Output product holding device
| Usage: To hold and transmit the formed sheet |

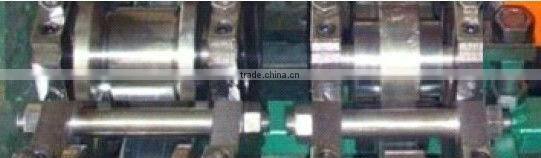

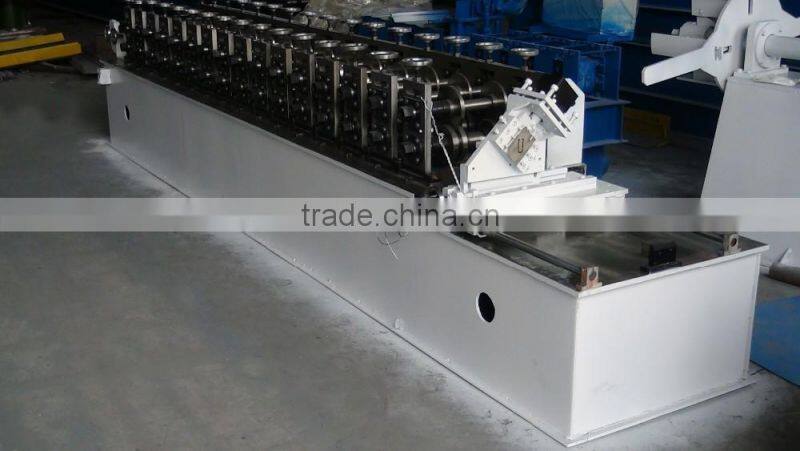

| 3 | Molding machine
| Rolling material: Cr12 |

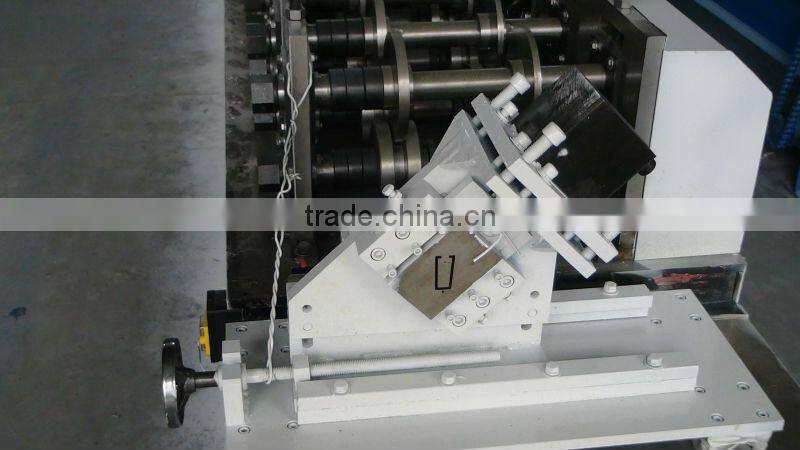

| 4 | Shearing device
| Cut-to-length
It contains one set of cutting tools, one hydraulic tank Material of the cutting blade :Cr12 |

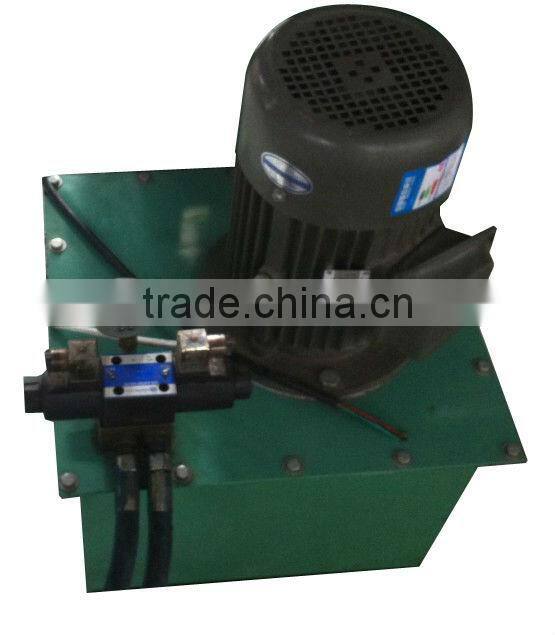

| 5 | Hydraulic system
| It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter to work The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. |

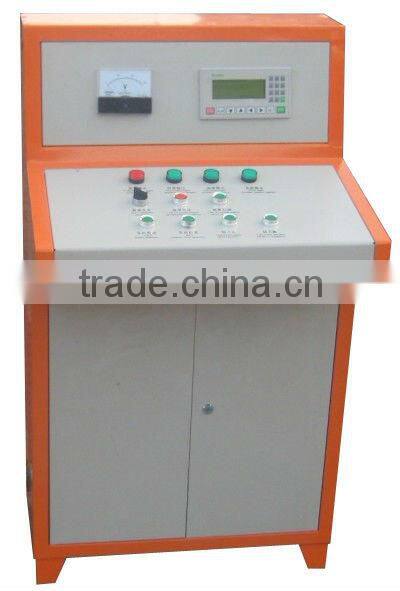

| 6 | Computer control cabinet
| Transducer: the use of it is to make the length more precise and the main machine more stable while working.
Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
PLC is Taiwan"Delta" In Chinese and English interface. |
III.Working flow
Decoiling→Active feeding→Roll forming→Cutting to length→Product to stand
IV. Service and warranty
1)We provide the technical support for the whole life.
2)If any parts are broken and not artificial damage, we will send you new ones for free.
3)We could send the technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, roundtrip tickets, accommodation, salary of USD 50 per day.
4)Warranty:12 months
V. Payment terms
30% Deposit by T/T , 70% balance paid after inspection before delivery by T/T.
VI.Picture show
