Steel Strip Drywall Stud and Track Forming Machine
- TAJIN XINGANG
- T/T Credit Card
You May Like
-
Stud and Truss Profile Roll Forming Machine
-
Light Weight Steel Frame Automatic c Channel Roll Forming Machine/ c Panel Form Machine
-
Metal Frame Stud and Track Light Steel Making Roll Forming Machine
-
High Precision C Strut Channel Roll Forming Machine
-
ty Track Forming Machine Ceiling Machine Dry Wall Machine
-
Suspended Ceiling Drywall Track Stud Forming Machine
Product Details
| Condition | New | Type | Other, Tile Forming Machine, double layer roof tile and wall roll forming machine | |
| Tile Type | Colored Steel | Use | Step | |
| Production Capacity | 8-10M/Min | Place of Origin | Hebei, China | |
| Brand Name | TIANYU | Model Number | TY keel | |
| Power(W) | 7kw | Voltage | 380V.50HZ.3Phase | |
| Dimension(L*W*H) | 4000*800*800mm | Weight | About 2.8 T | |
| Certification | CE &ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
steel strip drywall stud and track forming machine
ABOUT US
We are the manufacturers all kinds of roll forming machine, which can provide overseas after-sales service .
Our company has found for over 1 7 years since 1 9 9 6.
We are the professional manufacture to produce different kinds of roll forming machine
roof and wall panel roll forming machine
c/z purlin roll forming machine
sandwich panel production line
floor deck roll forming machine
light steel keel roll forming machine
container board roll forming machine
bending machine,cutting machine and automatic un-coiler
Trapezoidal steel roof panel roll forming machine for sale
All the parameters are only for reference, we can Joint-Hidden Roofing Sheet Roll Forming Machine as per your profile drawings.
1. specification of the roll forming machine
| 1.Weight capacity of decoiler | 2.5T |
| 2.Appearance Size(L*W*H) | 4000*800*800mm |
| 3.Raw material /feeding sheet material | colored steel & galvanized steel |
| 4.Roller material | 45# high grade steel |
| 5.Shaft material | 45# high grade steel |
| 6.Kind of drive | chain drive |
| 7.Cutting system | automatic hydyaulic cutting |
| 8.Cutting blade material | Cr 12 high grade steel |
| 9.Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11.Main power | 7 kw |
| 12.Roller stations | 100 rows per layer |
| 13.Speed of production | 8-10m/min |
| 14.Thickness of colored steel | 0.2-0.8mm |
| 15.Feeding width | 1000mm |
| 16.Effectiv width | 850/860mm |
| 15.Frame material | 300 H-steel |

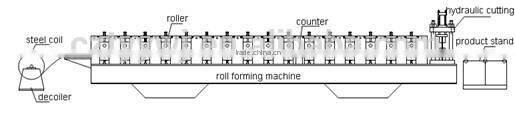

cess of the roll forming machine
4.Pictures

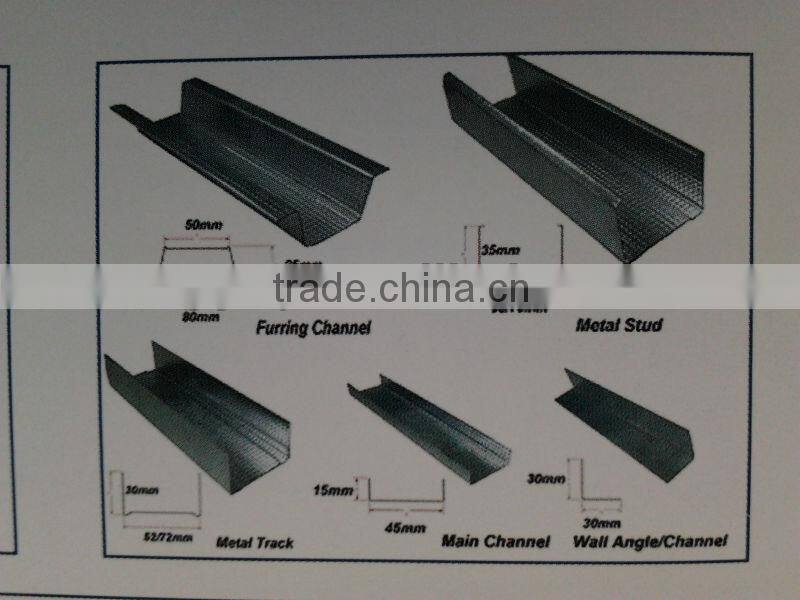

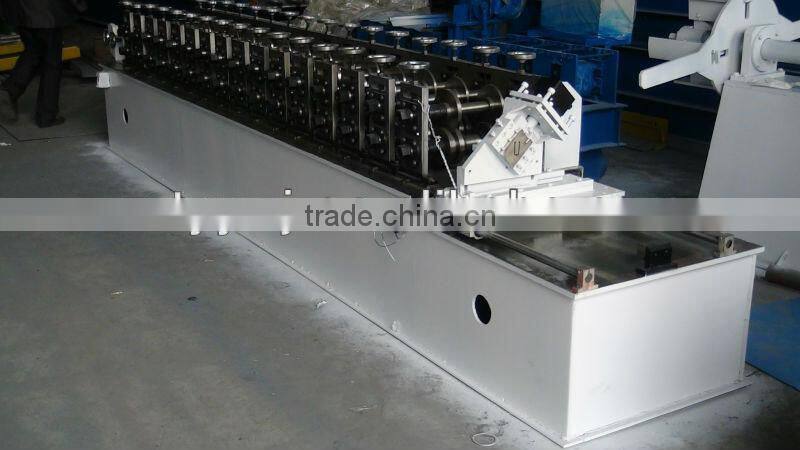

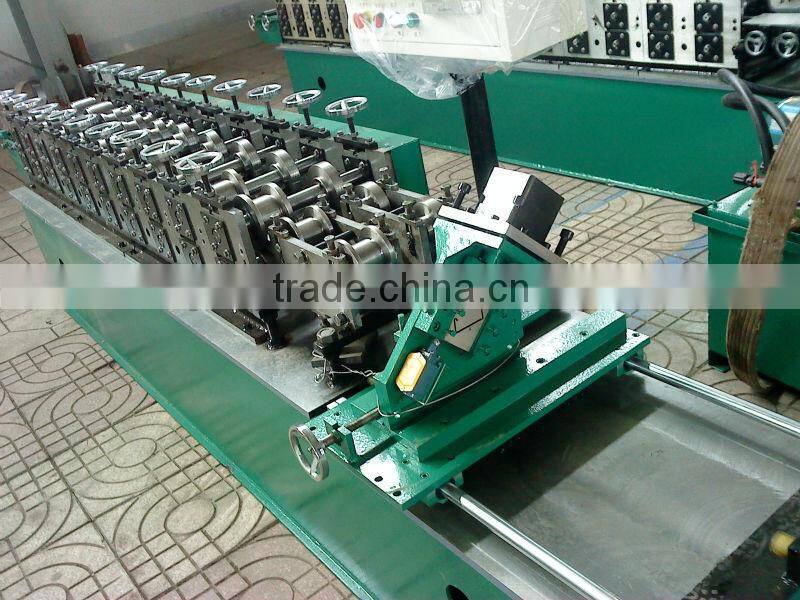

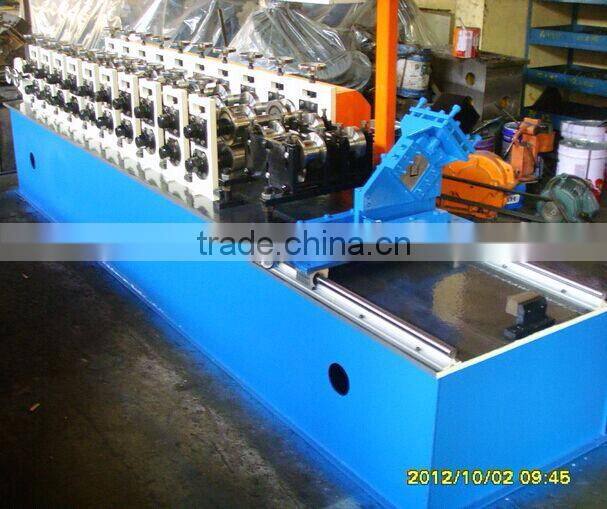

Machine and Tile

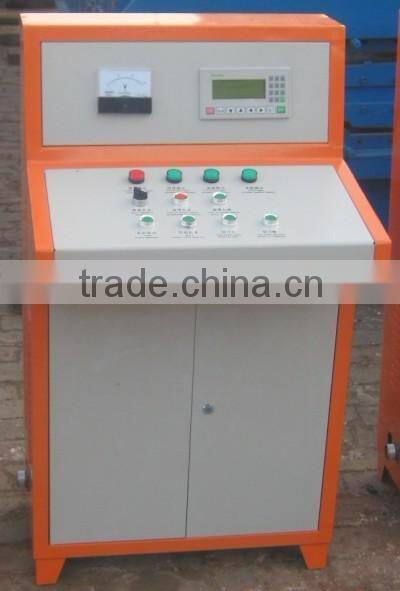

Automatic control box
Automatic decoiler

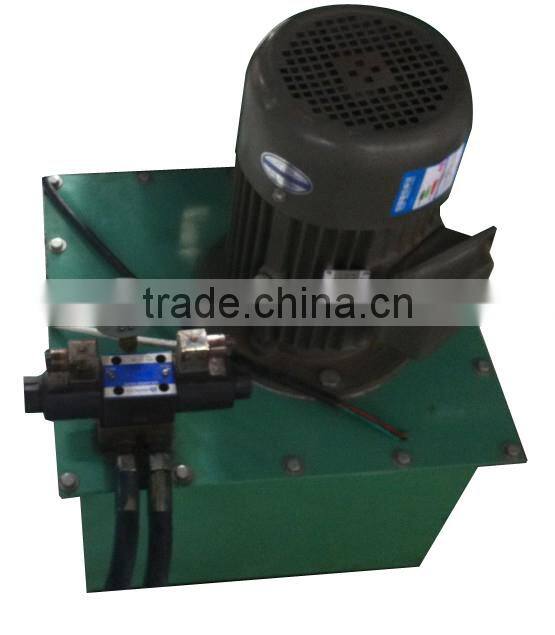

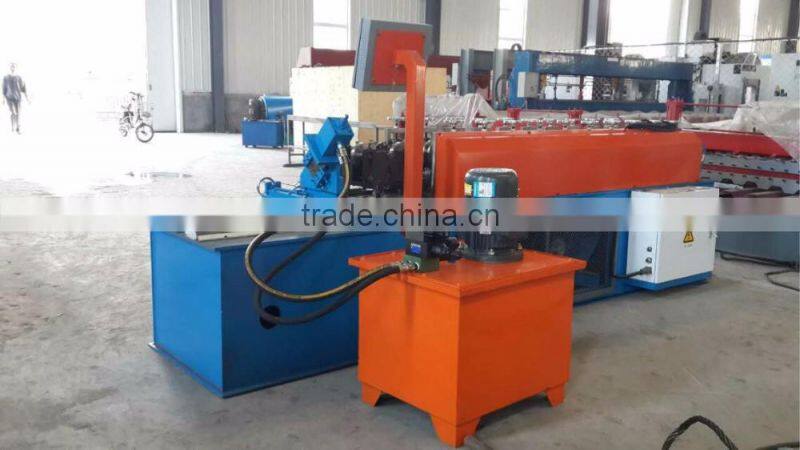

Pump
4.Packing and delivery
5.Payment terms
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )
Our guest

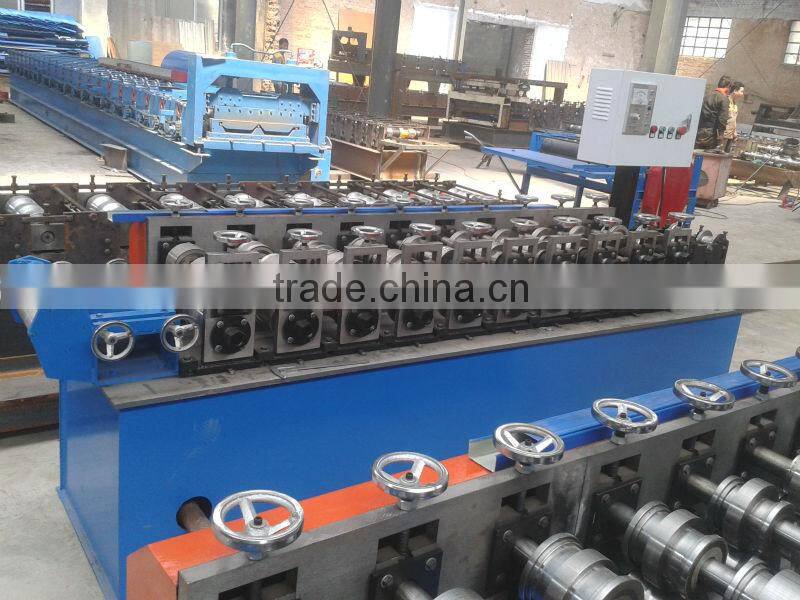

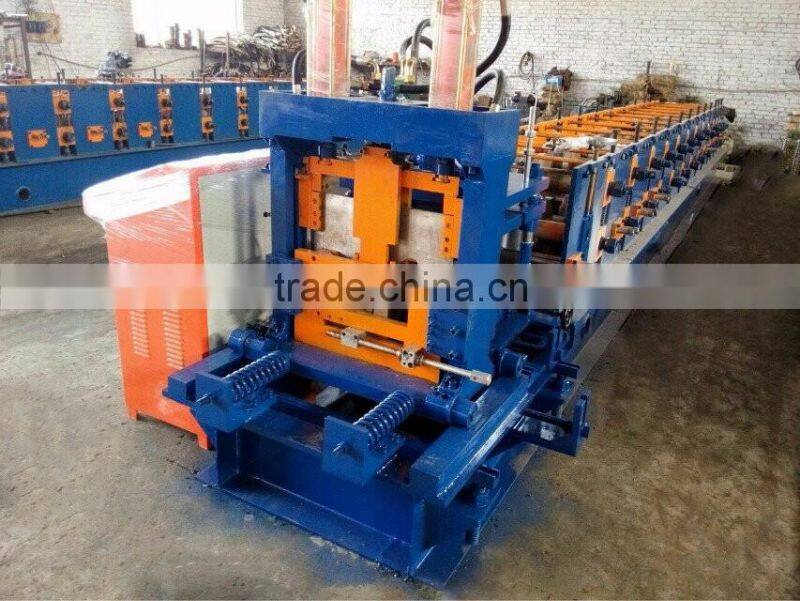

6.Other productions
Contact Us
- Cangzhou City Tianyu Machinery Manufacture Co., Ltd.
- Contact nameDaisy Liu Chat Now
- Phone86-317-8285118
- AddressFuzhuang Village,Liubali Xiang,Nanpi County , Cangzhou, Hebei
