170 Degrees 480TVL 3rd Brake Lights/ Backup IR Camera for NV Nissan Passenger and Cargo Van 2009-2014

170 degrees 480TVL Third Stop light Brake light backup IR camera for NV Nissan Passenger and Cargo Van 2009-2014

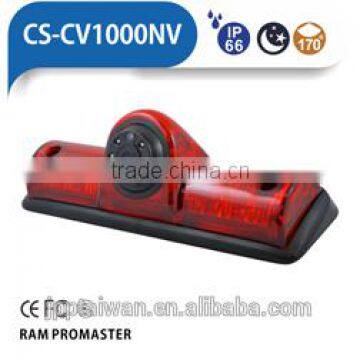

 Model no.:   CS-CV1000NV

The camera itself is a 170° wide-angle Super CMOS color camera that is set inside a custom brake light housing. Once the camera is installed, it looks completely stock and there are no wire showing. The custom design makes it very easy for installers as well as there are no holes that have to be drilled into the body of the vehicle for mounting. The brake light housing can be fitted with the stock bulbs as well so when you step on the brake, the brake lights will still function as normal

Features a wide angle lens that captures the area not visible to standard rearview mirrors. The camera replaces existing third brake light.

Specification:

♦ Sensor: CMD-III. ¼” High performance Digital

♦ Supper Clarity Image Sensor

♦ Resolution: 580 TV Line

♦ Built-in LED brake light

♦ Current Consumption: MAX: 50mA

♦ Minimum illumination: 0Lux with IR

♦ View angle: 170 degree

♦ Effective Pixies: 648*488

♦ TV System: NTSC

♦ Video color: Full color

♦ Waterproof: IP67

♦ Working Voltage: DC 9-16 V

♦ Operating Temperature: -30° C to 70° C

♦ including 10M extention locking cable
