We do Best, About Machine

To produce the best corrugated machine, TIANYU is taking EUROPEAN quality standard

Choose the best material and components, and adopting our 18 years experience

TIANYU achieves that the machine capacity is double of the competitors

The machine working speed can be 25m/min as standard speed

Only 1 worker to operate for corrugated machine .

We do Detail, Machine Parameters

 process of the roll forming machine

We do Standard, Machine Components

For tile making machine, according to our company standard, we will offer you following components as the standard configuration.

Pictures and profile Overseas service center available After-sales Service Provided and Tile Forming Machine,automatic Type roll forming machine

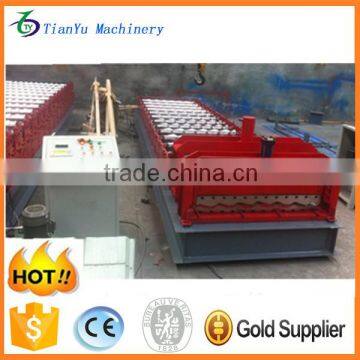

This machine is used to produce roof panels, the raw material is colored steel coils,

or galvanized steel coils.

It imitates the classical Chinese roof tiles,

but much more cheaper and stronger than glazed ceremic tiles.

We do you like,Optional components

This corrugated machine has following components can be selected as customer requirements specially

1.Nonautomatic decoiler

 Carrying capacity: 5-7t;

 Max coil width: 1.25m

 Dimensions: 1.5*1*1m

 Operation: Manual

2.Pump

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank,

the pumps drive the cutter to work

Power of the oil pump: 3kw

Hydraulic oil :40#

3.Product stand

4. Automatic control box

PLC control system

Tolerance : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

PLC is Taiwan"Delta"

Frequency Converter(in the PLC box): to make it accurately when working.

Frequency converter is Taiwan"Delta"

In Chinese and English interface.

certificates equipment from china for small business

 Roll forming machine Packing and delivery

The machine is bare packing.

Usually one machine can be put into one 20-40 feet container.

We use steel wire to fix the machine in the container.

We do Your care, Machine Loading

Because of the long trip and your super trust, we will make sure corrugated machine can beappeared in front of you in fully good condition, you will fall in love with it with first glimpse.

We have professional team to make different kinds of roll forming machines for our customers,

from designing, processing,assembling, debugging, delivery.

We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines.

If there is any problems happened to the machine, we will provide solution at once.

Hope we could establish win-win business relations in the soon future!

Payment terms

T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery )

 FAQ about roll forming machine :

Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.

Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.

Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

Q:can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.

Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.

Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

ABOUT US Cangzhou Tianyu Machinery Manufacture Co.,ltd

We are the manufacturers all kinds of roll forming machine,

which can provide overseas after-sales service .

We are not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines,

C&Z shape purline machines,

highway guardrail roll forming machine lines,

sandwich panel production lines,

decking forming machines,

light keel machines,

container board roll forming machine

bending machine,

shutter slat door forming machines,

cutting machine and automatic un-coiler

downpipe machines,

gutter machines, etc.

Trapezoidal steel roof panel roll forming machine for sale

All the parameters are only for reference, we canmanufacture Roofing Sheet Roll Forming Machineas per your profile drawings.

Our guests

We do Together, Customers

Meeting you, Growing with you, Enjoying with you.

Other productions

Dear friend ,

Nice to meet you !

Over 18 years experience ,the quality can guarantee .

Save repair and manpower cost ,thebenefits can keep .

12 months warranty and overseas after service provided .

The price machine you want is the most reasonable .

If any interest ,please chat with me.
