Home > Products > Webbing sling&ratchet straps > Polyester Flat Woven Lifting Webbing Sling

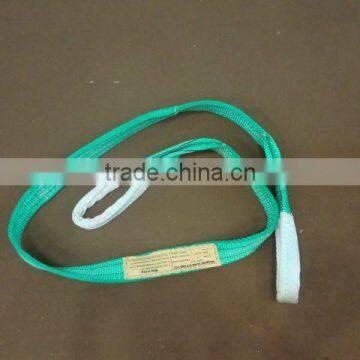

Polyester Flat Woven Lifting Webbing Sling
- tianjin
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | EUOEM | |
| Model Number | EB-002 | Type | Webbing Sling | |
| Shape | Flat | Material | Polyester | |
| Lifting Capacity | Other, 1~20TONS | Sling Color | Green | |
| Lifting Eye Type | Flat Eye | Certification | CE,GS,ISO,TUV |
Product Description
Specifications
polyeater flat woven webbing sling1. CE,GS,ISO TUV certificate
2. Safe factory:5:1,6:1,7:1
3. Working load:1ton-30ton
polyeater flat woven webbing sling
1. CE,GS,ISO TUV certificate
2. Safe factory:5:1,6:1,7:1
3. Working load:1ton-30ton
is produced from top quality synthetic fibre by advanced international level of weaving technology and equipment in various sewing methods. According to customer's requirement,
the safety factor of sling has 4:1,5:1,6:1,7:1,8:1, its load range is from 0.5t to 100t. Which is produced according to International stanard,for color and load capacity
1.Material:100% high tenacity polyester
2.Safety Factor:5:1,6:1,7:1
3.Width:35mm to 125mm
4.WLL:1T to 20T
5.Standard:EN1492-1
6.Ply:Single,Double,Three,Four Ply
7.Packing:PVC absorbing membrane and export carton
8.Label:Printed your company name or logo
9.Eye Type: Flat Eye; Reversed Eye;Folded Eye width from 1 side; Folded eye width from 2 side;Folded eye 1/3 width
| Webbing width(mm) | Colourcoded accor ding to EN 1492-1 | Work load limit with 1 webbing sling | Work load limit with 2 webbing sling | |||||||
Straight lift | Choked lift | β | Straiht lift up to 45° | Choked lift up to 45° | Straiht lift up to45°-60° | Choked lift up to45°-60° | ||||
0°-7° | 7°-45° | 45°-60° | ||||||||
1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | ||
50 | WLL1T | 1000 | 800 | 2000 | 1400 | 1000 | 1400 | 1120 | 1000 | 800 |
60 | WLL2T | 1600 | 4000 | 2800 | 2000 | 2800 | 2240 | 2000 | 1600 | |
75 | WLL3T | 3000 | 2400 | 6000 | 4200 | 3000 | 4200 | 3360 | 3000 | 2400 |
100 | WLL4T | 4000 | 3200 | 8000 | 5600 | 4000 | 5600 | 4480 | 4000 | 3200 |
125 | WLL5T | 5000 | 4000 | 10000 | 7000 | 5000 | 7000 | 5600 | 5000 | 4000 |
150 | WLL6T | 6000 | 4800 | 12000 | 8400 | 6000 | 8400 | 6720 | 6000 | 4800 |
Welcome your inquire, we wil offer best price.
