F136 GR5 Titanium Bars for Medical Use Only
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | LH | |
| Model Number | D(0.8mm-350mm)*L(<8000mm) | Application | Industrial | |
| Diameter | <350mm | Shape | Round | |
| Length | <8000mm | Technique | Rolled | |
| Grade | titanium, GR5 | Weight | Actual weight |
Product Description

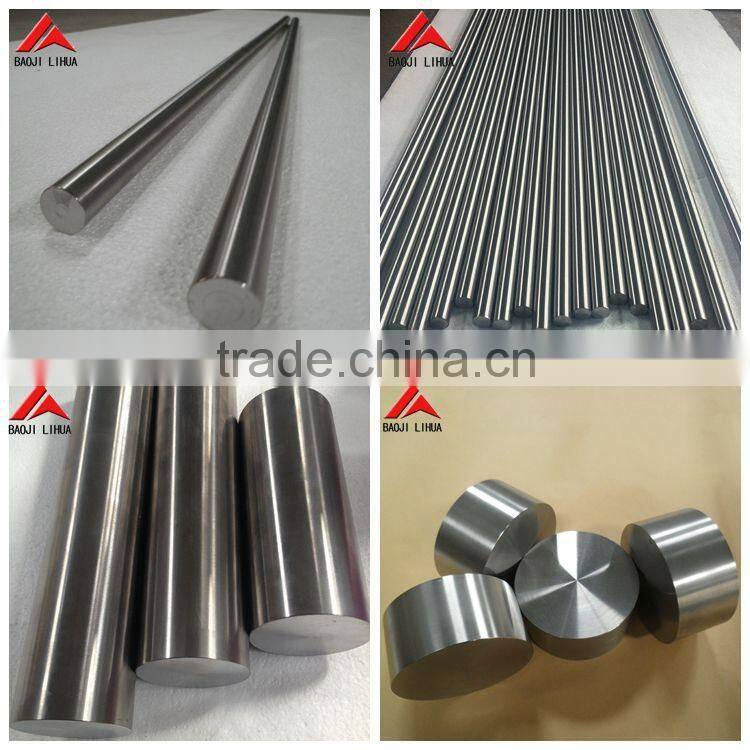

F136 GR5 titanium bars for medical use only
Item Name | gr5 titanium alloy bar |
Standard | ASTM F136 |
Material | Gr5 |
Diameter | 3~350mm |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar... |
Certificate | ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
Physical Properties | |||||
| Grade | Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 483 | 15 |
| 12 | 70 | 483 | 50 | 345 | 18 |
| 23 | 120 | 828 | 110 | 759 | 10 |
| Chemical composition | |||||||||||
Grade | N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti |
1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | Bal |
4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / |
5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
| 23 | 0.03 | 0.08 | 0.0120 | 0.25 | 0.13 | 5.5-6.50 | 3.5-4.5 | / | / | / | Bal |
