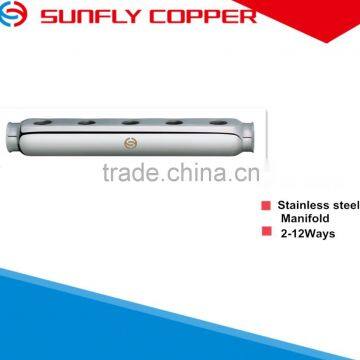

Stainless steel manifold

Specifications

Size:3/4''x1
Material: Stainless steel
Ways:2-12ways
 Certificate:CE,RoHS,ISO9001:2000

Zhejiang xinfan copper Industry co. Ltd is a professional supplier, have more than 20 years of OEM experience. Professional production: manifold ,mix water valve ,temperature control valve, radiator valve ,vent valve ,ball valve ,liquid flowing flowmeter ,radiator fitting and boiler accessories , products through the CE, RoHS authentication.

Our products are with high quality and competitive price,exported to all over the world, esp. to Europe and Middle East.


We believe that our cooperation will be much smoother and fruitful in the future

The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The distribution manifold equipped inculdes :  Supply manifold with Manual internal hex detentor, return manifold with thermostatic control valve ( which is suitable changed into electro-thermal actuator ) , end unit ( air vent , drain valve ,tee connection ) , metal bracket ,  Metal inspection box assembled)

EASY INSTALLATION

Features

Nature color, surface anticorrosion processing
Outlets in composite with the main body to exterminate the leakage possibility of manifolds
Axial static seal technology
No O-ring for pipe fittings
Freestyle combination for multi-loops

Technical data

Material: main pipe –  Stainless steel
 Medium: water (Max. percentage of glycol is 30%)
Operating pressure: PN16
Medium temperature: 0~100°C
Connection: 1”,1.1/4’’
Main pipe thickness : 2.5mm-2.8mm
Outlet : 3/4’’ M X 18 ( 16 x 2.0 /20 x 2.0 )
Distance between outlets : 50 mm
