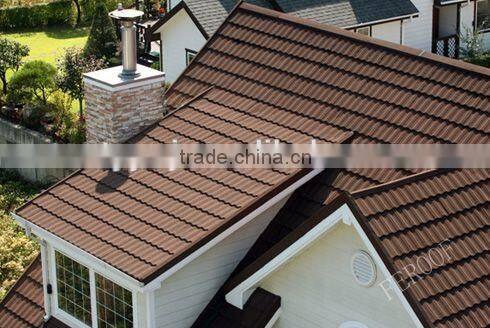

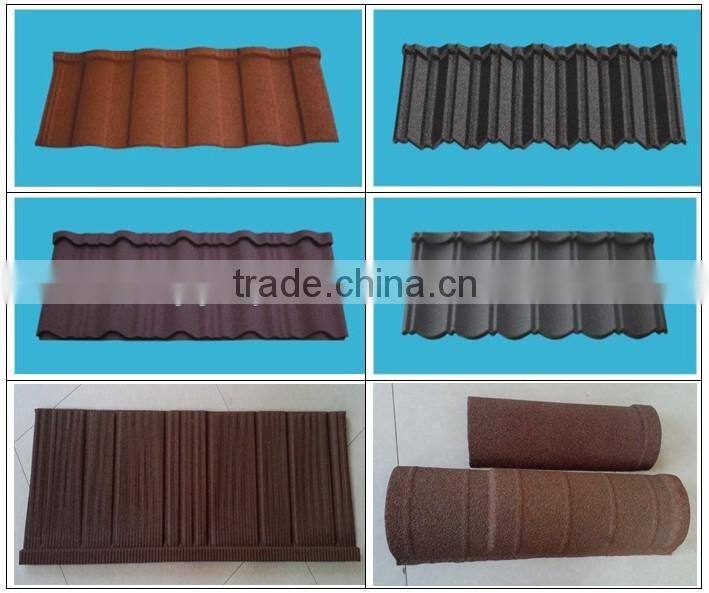

Africa Colorful Stone Coated Metal Roofing Tiles from TY China factory

Specifications

       Colorful stone-coated metal roof tile making machine

I.Suitable material

1.Coil material:color steel sheets, galvanized plates,galvalume plates

2.Thickness of coil material:0.4mm

II.Producing Process

Manual decoiling----Slitting the plate----Cutting to length----Pressing the profile----Sand coated line---Taking out the finished products

III.Components of the production line

1. Manual decoiler

1.1 Outside diameter of coil is 1600 mm

1.2 Inside diameter coil is 450 - 550 mm

1.3 Max Coil Width is 1250 mm

1.4 Coil carrying load is 5 ton

2.Slitting device

2.1 Main Motor Power: 3kw

2.2 Main frame:120 channel profile steel

2.3 Shaft material:45# steel

2.4 Max Slitting width: 1300mm

3.Hydraulic cutting device

3.1 Hydraulic Station:1set

3.2 With hydraulic station, motor 3 KW

3.3 Cutting press 20 ton

3.4 Hydraulic cutter

3.5 Blade material: Cr12 steel with quenched treated 60-62°C

3.6 Cutting system: advanced hydraulic drive, automatic cutting after

forming, no distorting or wasting, high level safety factor.

4. Press mould machine

Mould Material: Cr12

Hydraulic Power Unit: 7.5 kw

Speed: 2-3 tiles / min

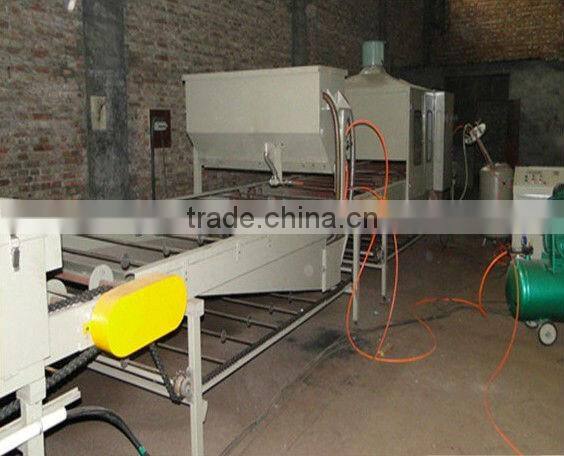

5. Automatic bottom glue spraying equipment

Appearance size:4000*1000*2000 mm

Driving section: 3KW Excitation motor or frequency speed regulation (AS per customers’requirements )

Automatic pressure spray tank:1set  capability:200kg   Range:0.6~1Mpa

Automatic glue machine motor: Servo motor, Power:750w, plc

Automatic spray gun:4 set(spare parts)

Dust collecting fan: 1set    power:200w

Damp proof lamp: 1pc      power:100w

Conveying device: Chain reciprocating

Air compressor: 1set   power:7.5kw

Dust control of axial flow fan: 1set  power: 200w

Agitator: 1set   power:1.5kw

6.Automatic Sandblasting Room

Appearance size:3500×1000×1500 mm

Framework: Steel welding

Conveying device:Chain reciprocating

Automatic sand hopper: 1set  capability:200kg

Bucket lift:1 set

Manual sandblast gun: 4sets

7.First drying room

Appearance size:25000×1000×1200 mm

Framework: Steel welding

Frame type thermal insulation wall: 1.2mm cold steel with Rock wool

Automatic temperature controller:4set  Range:0°~160°

Infrared heating tube: 30pcs   Power:30kw

Conveying device:Chain reciprocating

Air cooling device:1 set  Power:200w

the first time drying section

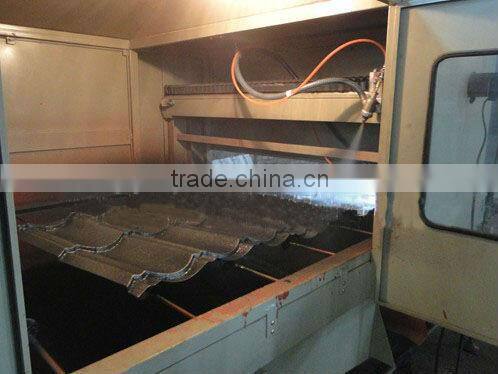

8.Automatic surface glue spraying equipment

Appearance size:3000×1000×2000           Unit:mm

Framework: Steel welding

Damp proof lamp:1pc        Power:100w

Automatic pressure spray tank:1set  capability:200kg   Range:0.6~1Mpa

Conveying device:Chain reciprocating

Automatic spray gun:4 set(spare parts)

Manual patch glue gun:4 set
