Steel Coil Slit Cutting and Rewinding Machine
- Tianjin
- T/T
You May Like
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Place of Origin | Hebei, China | Brand Name | TY | |
| Power(W) | 3 KW | Voltage | 380V.50HZ.3Phase | |
| Weight | 5.5 ton | Certification | CE | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

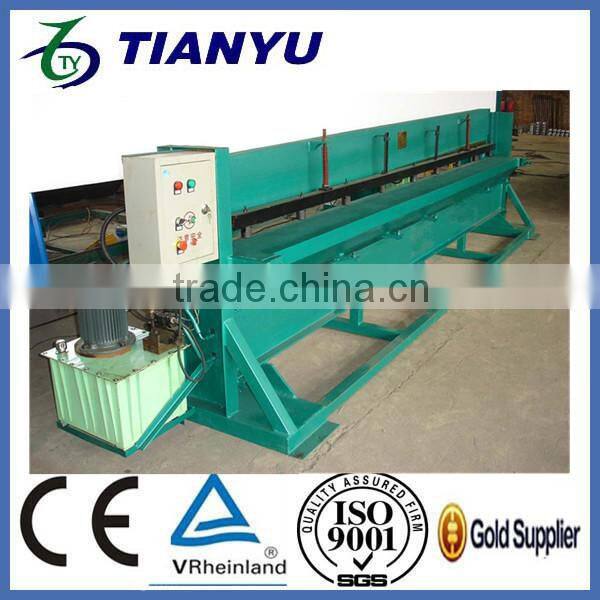

steel coil slit cutting and rewinding machine
technique parameters
(1) Material of frame : (high grade) 360mm , 300mm and 160mmH shape steel welding
(2) Material of tool apron : 300mm Channel steel
(3) Material of stanchion : 300mm Channel steel
(4) Length of plate :4.0m
(5) Suitable coil thickness : accepted thickness for steel coil is 0.0mm-1.0mm.
(6) 3 cylinder hydraulic drive, stroke is 150mm
(7) Oil pump :Gear oil pump,pressure is 25MPa
(8) Power of motor : 3KW
(9) Voltage : 380V/50Hz/3phase
(10) Appearance size of main forming machine : 4.3m (length)*1.0m (width) *2.1m (height)

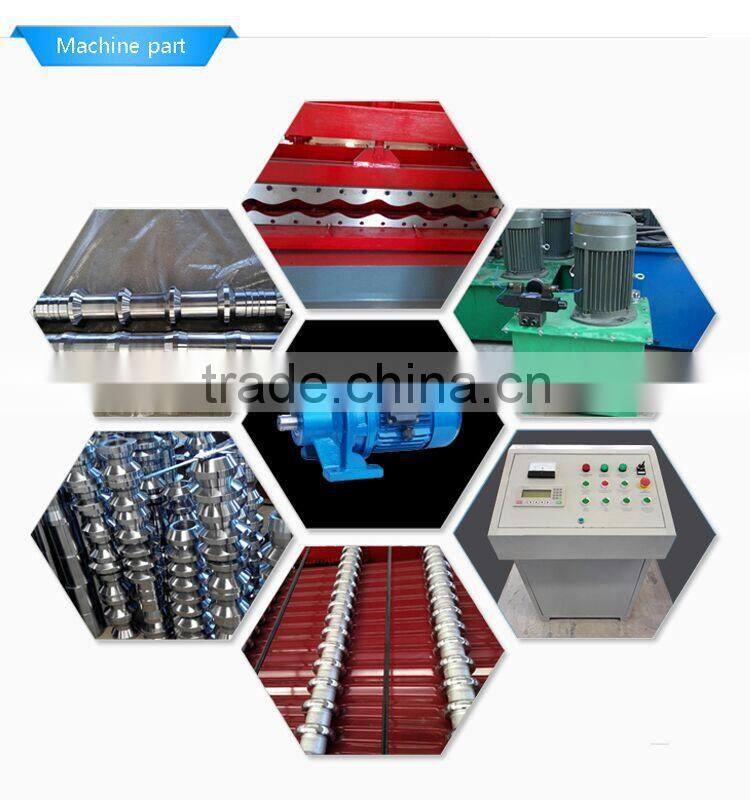

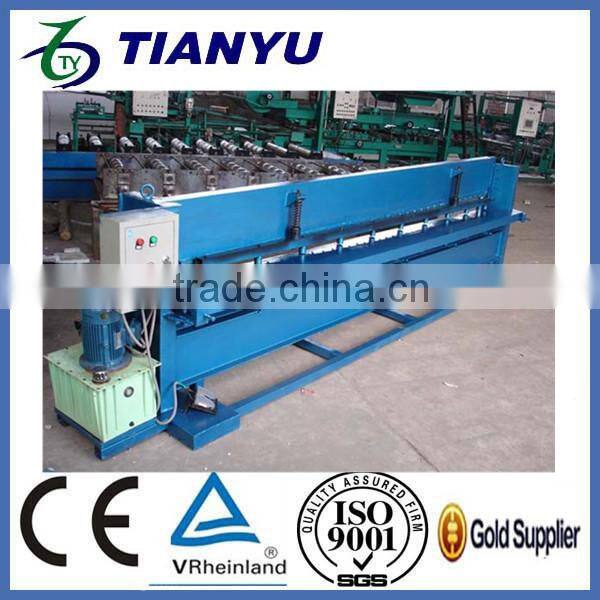

machine picture show and some deatils


Automatic system
Pump station | 3kw |
PLC | Panasonnic |
Transducer | Twiwan"Delta" |
Encoder | Wuxi's "REP"or "XINYA" |
Switch | "CHINT" or "DELIXI" |

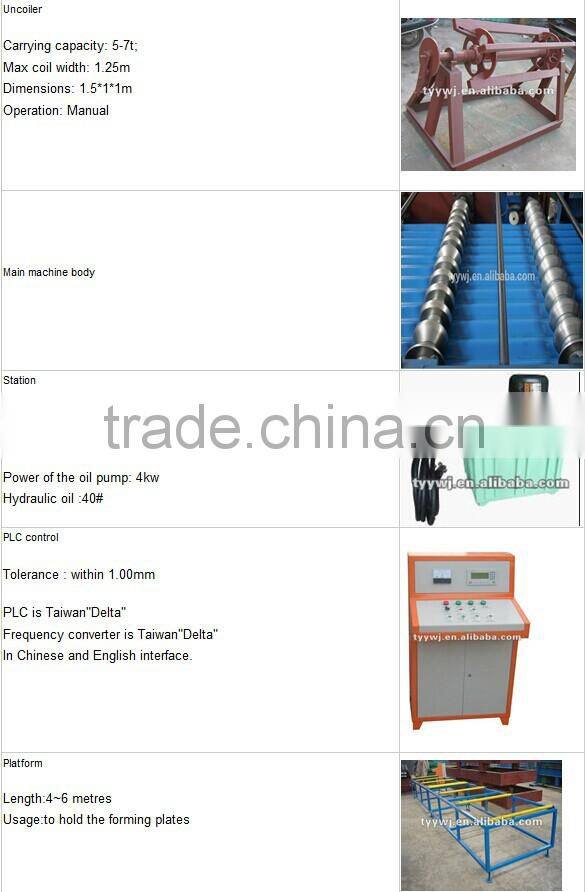

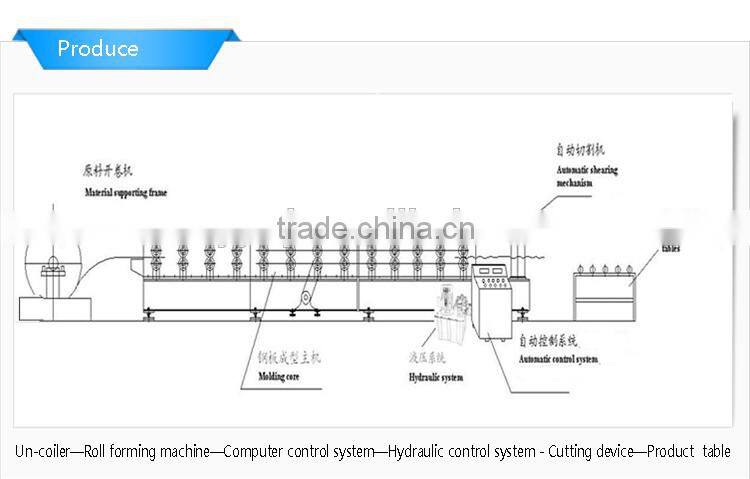

Component line
NO | Name | Unit | Qty |
1 | Man-made decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
FAQ about roll forming machine :
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
Q:Mr.Alan,can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
