Industrial Mixer
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, many areas | |
| Application | Powder | Additional Capabilities | Other | |
| Place of Origin | Jiangsu, China | Brand Name | Lemar machinery | |
| Model Number | EYH-1000 | Max. Loading Capacity | 250KG | |
| Power(W) | 11 | Certification | ISO9001,ISO14001,CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

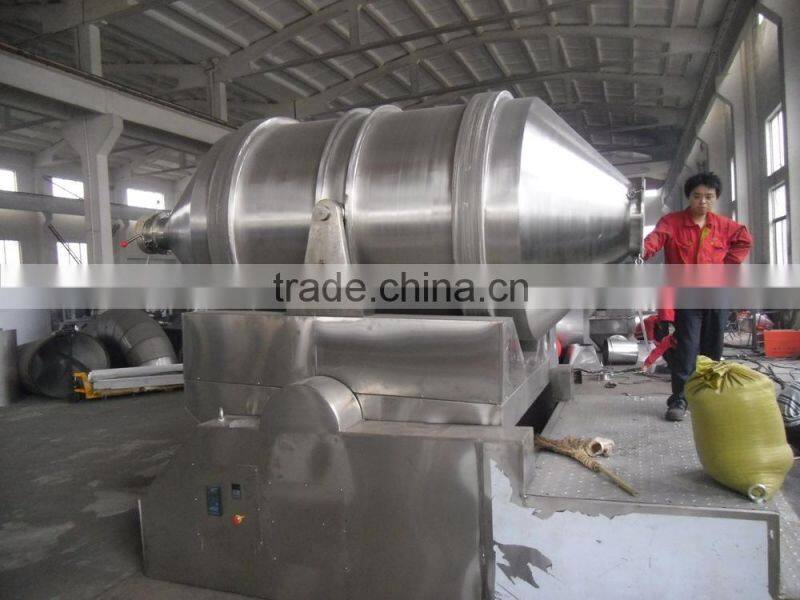

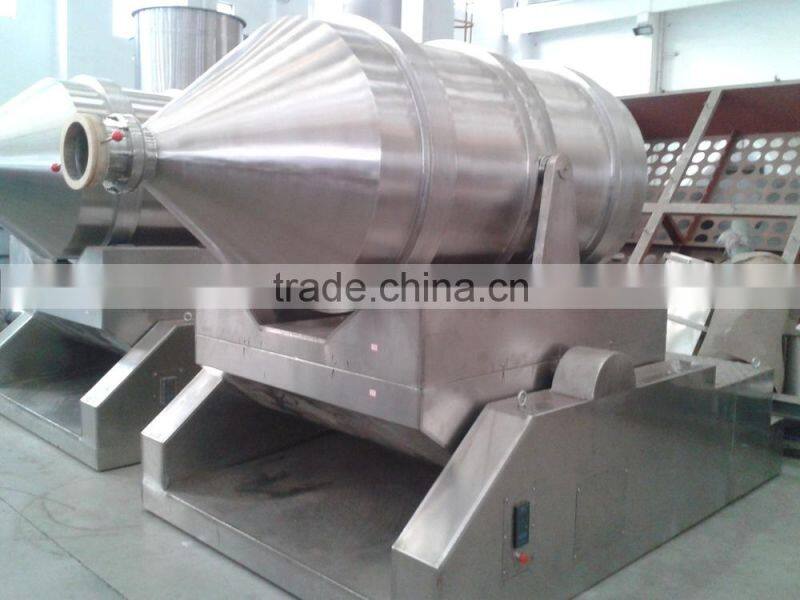

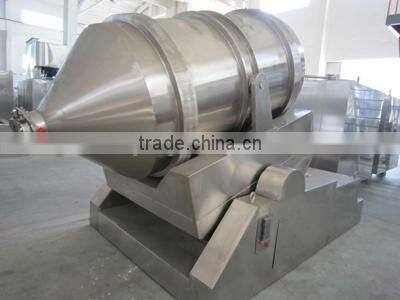

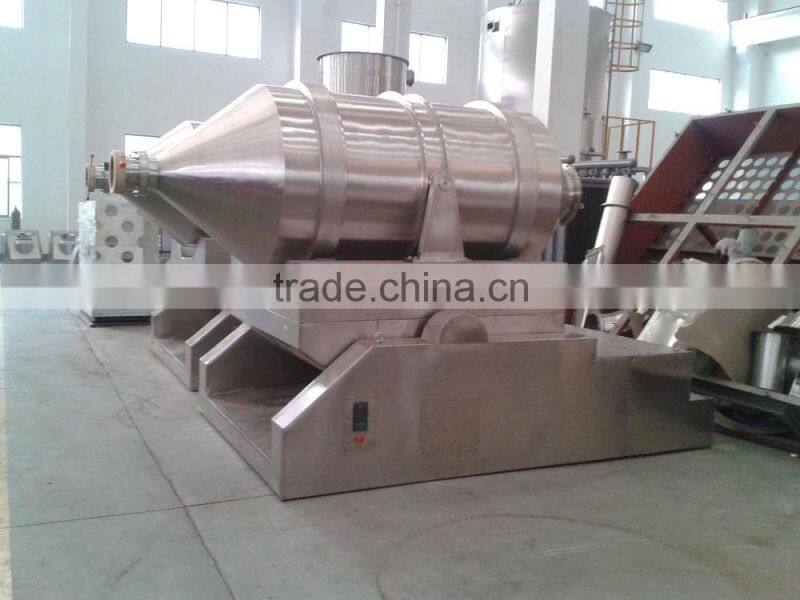

Description of Industrial mixer
1,This machine is widely applied in pharmacy, chemical industry, food industry dyeing industry, fertilizer industry and pesticide industry, especially suitable for mixing large-tonnage (1000L - 10000L) solid materials.
2,The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed.Because the discharge port of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
parameters of Industrial mixer
model | Barrel volume(L) | Loading capacity(L) | Max loading weight(kg/batch) | No. of swing and rotation r/min | Total motor power(kw) | Overall dimension X×Y×Z×Z1(mm) | Total weight(kg) | Barrel weight (kg) |
EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310×400 | 15 | 4 |
EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540×580 | 60 | 8.5 |
EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700×730 | 115 | 15 |
EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800×1050 | 190 | 50 |
EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900×1350 | 340 | 60 |
EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170×1640 | 1150 | 140 |
EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320×1950 | 1600 | 200 |
EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360×2040 | 1700 | 240 |
EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580×2400 | 2000 | 320 |
EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740×2600 | 2600 | 430 |
EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800×2900 | 3500 | 620 |
EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970×3300 | 4100 | 700 |
EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300×2900 | 6100 | 1100 |
EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540×4100 | 7900 | 1450 |
EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900×4500 | 9500 | 1650 |
