Home > Products > Ungrouped > Widely Used Trade Assurance 910 Wall Panel Roll Forming Machine

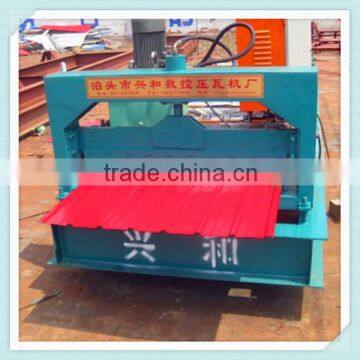

Widely Used Trade Assurance 910 Wall Panel Roll Forming Machine

FOB Price

USD $5,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port XINGANG TIANJIN
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Colored Steel	Use	Roof
Production Capacity	6-8m/min	Place of Origin	Hebei, China
Brand Name	XINGHE	Model Number	XH910
Power(W)	5.5kw	Voltage	380v 50-60hz
Dimension(LWH)	580014001300mm	Weight	3 Tons
Certification	BV	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

910 Fully Automatic Control Cutting Color tile Steel Roof Roll Forming Machine

1.Forming Tile Show:

2.Producing Process Show:

3.Equipment Technical Pamameter:

Main Forming Machine Technical Pamameter:

machine size	5800mm1400mm1300mm
Feeding width	1000mm/1250mm
Equipment weight	3.5T
Material of shaft	45#steel adjustable treatment
Out diameter of shaft	φ70mm
Material of roller	Cr12, quenched treatment HRC58-60°C
Number of forming rollers	12 standard rollers
Main frame	300 H steel
Thickness of medium plate	14mm
Transportation system	Chain transportation
Thickness of chain	0.6 inch
Main motor power	3 KW
Bearing	6213
Forming speed	8-12m/min
Rolling thickness	0.3-0.8mm

Ps:Parameters above is the standard configuration.Parameters can be designed as per your special requests.

Hydraulic Shearing System:

Material of blade

Cr12,heat treatment 60-62°C

Shearing system

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.

The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.

Power of the oil pump: 4kw

Hydraulic oil :40#

Electrical System:

Screen display

5.7 inches touch screen

Main computer control cabinet

It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.

Transducer brand is TaiWan”taida”

The seller should provide Chinese and English language screen.

4.Equipment Show:

Optional System:

5.Equipment Loading Show:

6.Customers to Visit:

Ps:our products have been exported to more than 20 countries and regions over the world, and maintained good cooperative relations with customers .

We do firmly believe in technological innovation and making every detail of the product perfect is our ambition ever.

7.About Us:

Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With 8 years of production experience ,we can offer you good quality machine at favourable price .

8.Service:

1) Pre-sale service:

Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service:

Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export

3) After-sales service:

We sent engineer to the scene to guide installation, debugging and training operators.

We are so glad to inform you that we have Trade Assurance amount of USD20000 which granted by .It means you will get 100% payment refund up to Trade Assurance Amount if we can't meet agreed delivery and quality terms contained in the contract.It is a free service for both of us.I think you can place orders to us with confidence.

For more information about Trade Assurance,please find http://tradeassurance.
