Iso Sell Eps Sandwich Panel Machine
- XINGANG TIANJIN PORT
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Eps Sandwich Composite Panel Roll Forming Machine
-
Eps Sandwich Panel Machine Production Line
-
Rock Wool and Eps Sandwich Panel Forming Machine
-
Eps Sandwich Panel Production Line/eps Sandwich Wall Panel Making Machine
-
Eps Sandwich Panel Making Machine / Eps Sandwich Panel Production Machine
-
High Quality Eps Sandwich Panel Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Wall | |
| Production Capacity | 6-8m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGHE | Model Number | Sandwich Panel | |
| Power(W) | 33kw | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 33m*2.5m*2.5m | Weight | 10T | |
| Certification | BV CE | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

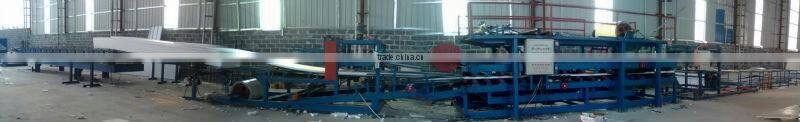

XH 980 EPS sandwich panel roll forming machine line

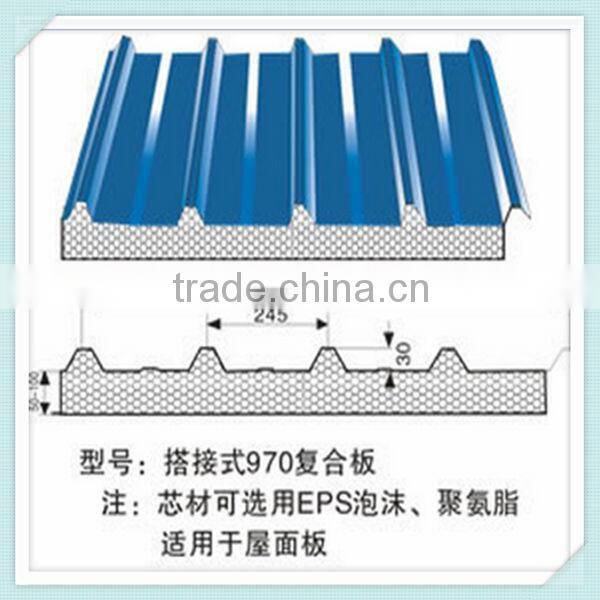

Tile drawing

Machine parameter
Forming machine parameter
1, Put rack, composite host, cutting part, drag rack
3, Motor power: 4KW
4, Production line speed: 6-10m/min
5, Machine weight: 3T
6, Electrical system: PLC, frequency converter,Encoder
7 Color steel thickness: 0.3-0.8 mm
8, Machine advantages: surface smooth without abrade, firm bonding.
9, Power: AC380V / 50-60HX
10 Feeding frame: a support and feeding roll core composition, bearing 5-7 tons
11 Forming row: 13 rows
12, Shaft, axis: Φ 80
13, Medium plate: 18mm
14, Main frame: 350 H steel
15 Sprocket, chain: 1 inch
16, Composite host: square tube: 80 * 160
17, Glue axis: 17 pieces, Φ 150
18, Cutting parts: pneumatic cutting
Compound part parameter
1. Voltage: 380V/50-60HZ
2. Power: 32KW
3. Working speed: 0-4m/min
4. Width: 1000mm 1200mm
5. Thickness: 50-250mm
6. Row material: EPS (polystyrene)
7.Machine dimension: 45000mm * 2800mm * 3000mm
8.Total machin line: about 15 tons

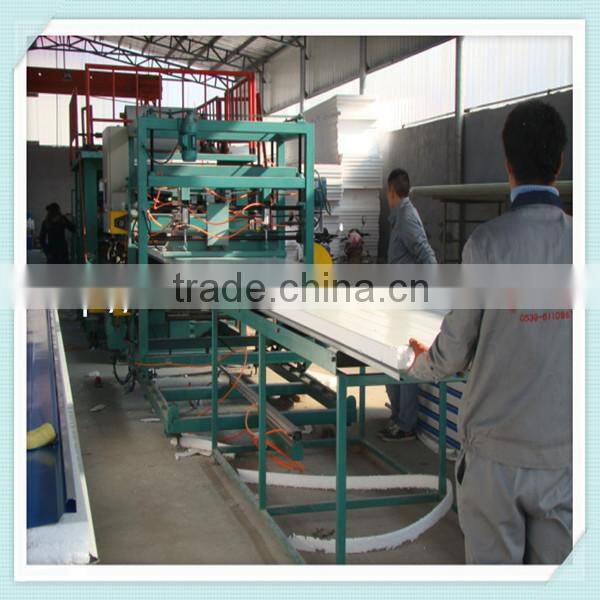

Machine shows

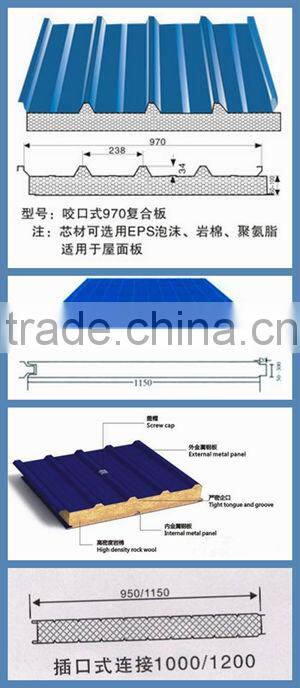

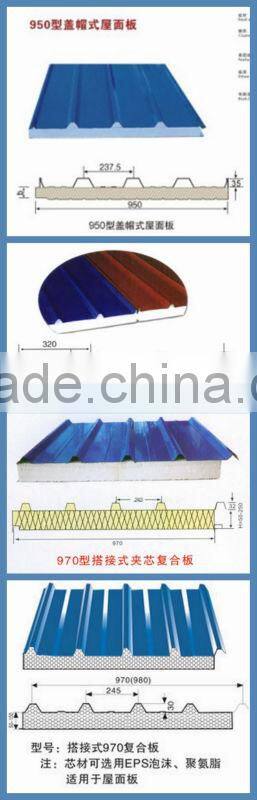

Other tiles for choice
Package & Payment & Delivery | ||
1 | Package details | Nude fasten up in container or under your requests |
2 | Payment terms | 30% TT for deposit balance against copy of B/L 100% L/C at sight |
3 | Delivery time | Within 30 days after receipt deposit |
4 | Port of shipment | XINGANG TIANJIN |
Our Service | |
1 | One-year quality assurance for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
Machine Feature:
1.Precise forming
2. High-solid forming stand guarantees the goods and uniform high quality of final produced
3. The operation automatically minimizes the tolerance of cutting length
4.Machine with Draw knife that can make the last board without manual cutting and clutch,That can control the number plate.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need
your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick
up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then
we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can
through negotiation for to solve the problems,and we supply the technical support for the whole life of the
equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on
developing how to make machines much more automatic, accurate and high quality. We can make sure
