828 Nigeria Aluminium Step Tiles Roofing Roll Forming Machine

FOB Price

USD $7,500 - $12,560 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Roof
Production Capacity	6-8m/min	Place of Origin	Hebei, China
Brand Name	XINGHE	Model Number	XH828
Power(W)	3kw	Voltage	380v 50-60hz
Dimension(LWH)	580014001300mm	Weight	3.5 Tons
Certification	BV	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Main Specification
Glazed steel tiles roll forming machine
1	Main frame	300mm H-sections
2	Side board thickness	14mm
3	Main motor power	3kw
4	Power supply	380V 50-60Hz
5	Shaft number	11rows
6	Shaft material	Carbon steel 45#
7	Shaft diameter	75mm
8	Rolling wheel material	Carbon steel 45# with chrome plated
9	Cutting method	Hydraulic mould cutting
10	Hydraulic pump motor power	3kw
11	Cutter material	Cr12
12	Chain size	33mm
13	Control system	PLC Delta inverter
14	Production rate	6-8m/min
15	Feeding thickness	0.3-0.8mm
16	Feeding width	1000mm/1250mm
17	Finished specification	As per your requests
18	Overall size	*580014001300mm*
19	Total weight	About 3.5 Tons
Parameters above is the standard configuration Parameters can be designed as per your special requests.

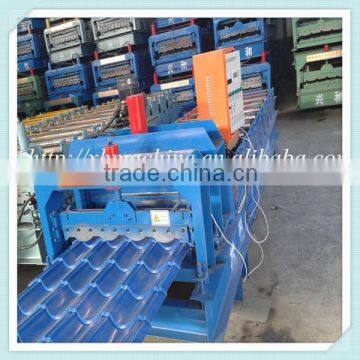

Product Photos

Loading Container

Package & Payment & Delivery
1	Package details	Nude fasten up in container or under your requests
2	Payment terms	30% TT for deposit balance against copy of B/L 100% L/C at sight
3	Delivery time	Within 30 days after receipt deposit
4	Port of shipment	XINGANG TIANJIN

Our Service
1	One-year quality assurance for all the machine
2	Technical staff available to service machine overseas
3	Permanent free for technical support
4	Design and produce according to your sample or drawing
