CE ISO Automatic Roof Color Steel Glazed Roof Tile Machine

FOB Price

USD $6,000 - $12,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port XINGANG TIANJIN
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Tile Forming Machine
Tile Type	Steel	Use	Roof
Production Capacity	8-12m/min	Place of Origin	Hebei, China
Brand Name	XINGHE	Model Number	XH820
Power(W)	5.5KW	Voltage	380v
Dimension(LWH)	580014001300mm	Weight	3.5 Tons
Certification	BV	Warranty	12 Months
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Main Specification
Glazed steel tiles roll forming machine
1	Main frame	300mm H-sections
2	Side board thickness	16mm
3	Main motor power	5.5kw
4	Power supply	380V 50-60Hz
5	Shaft number	11rows
6	Shaft material	Carbon steel 45#
7	Shaft diameter	75mm
8	Rolling wheel material	Carbon steel 45# with chrome plated
9	Cutting method	Hydraulic mould cutting
10	Hydraulic pump motor power	3kw
11	Cutter material	Cr12
12	Chain size	33mm
13	Control system	PLC Delta inverter
14	Production rate	6-8m/min
15	Feeding thickness	0.3-0.8mm
16	Feeding width	1000mm/1250mm
17	Finished specification	As per your requests
18	Overall size	*580014001300mm*
19	Total weight	About 3.5 Tons
Parameters above is the standard configuration Parameters can be designed as per your special requests.

Major Component & Production Process
Major Components	Manual uncoiler	1 set
	Main roll forming machine	1 set
	Hydraulic Cutting off system	1 set
	Control system(PLC)	1 set
	Output shelf	1 set
Production Process	Uncoiler → Roll forming → Cutting off → Output

Formed Tile Model

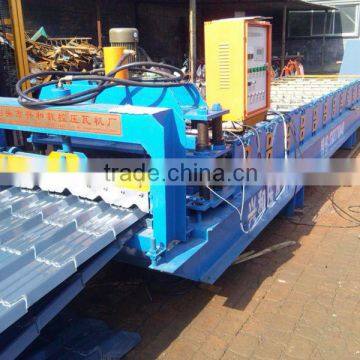

Machine Photos

Loading Container

Package & Payment & Delivery
1	Package details	Nude fasten up in container or under your requests
2	Payment terms	30% TT for deposit balance against copy of B/L 100% L/C at sight
3	Delivery time	Within 30 days after receipt deposit
4	Port of shipment	XINGANG TIANJIN

Our Service
1	One-year quality warranty for all the machine
2	Technical staff available to service machine overseas
3	Permanent free for technical support
4	Design and produce according to your sample or drawing

We are so glad to inform you that we have Trade Assurance amount of USD20000 which granted by .It means you will get 100% payment refund up to Trade Assurance Amount if we can't meet agreed delivery and quality terms contained in the contract.It is a free service for both of us.I think you can place orders to us with confidence.

For more information about Trade Assurance,please find http://tradeassurance.
