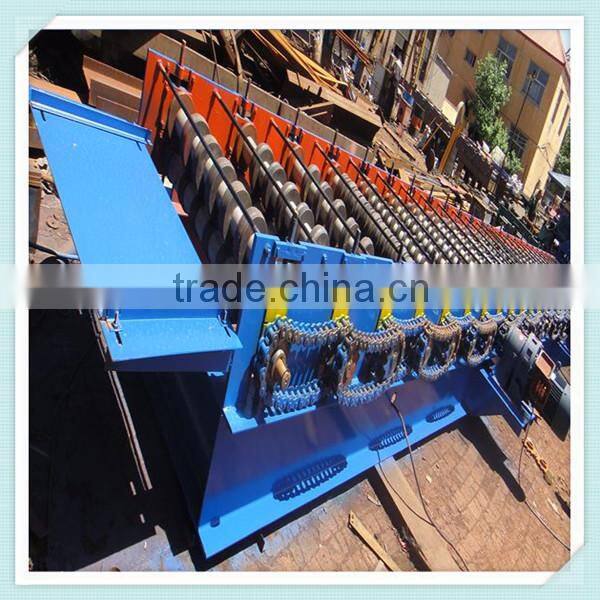

0.8 - 1.5mm Steel Deck Roll Forming Machine For Floor Decking Sheets
- XINGANG TIANJIN
- T/T L/C D/P D/A
You May Like
-
Steel Floor Decking Sheet Roll Forming Machine
-
1025 Hot Selling Floor Decking Sheet Roll Forming Machine
-
XH-915 Metal Floor Deck Sheet Roll Forming Machine
-
720 Metal Floor Deck Sheet Roll Forming Machine
-
688 Hot Selling Floor Decking Sheet Roll Forming Machine
-
1025 Metal Floor Deck Sheet Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 5-8m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGHE | Model Number | XH720 | |
| Power(W) | 11kw*2 | Voltage | 380V,50-60HZ,3Phase | |
| Dimension(L*W*H) | 23000mm*1400mm*1200mm | Weight | 14Tons | |
| Certification | BV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
720 Floor Deck Metal Sheet Cold Roll Forming Machine
CE,ISO passed - quaility is good
8 years of production experience - always keeps latest design
Direct factory - price is more competitive
Working process

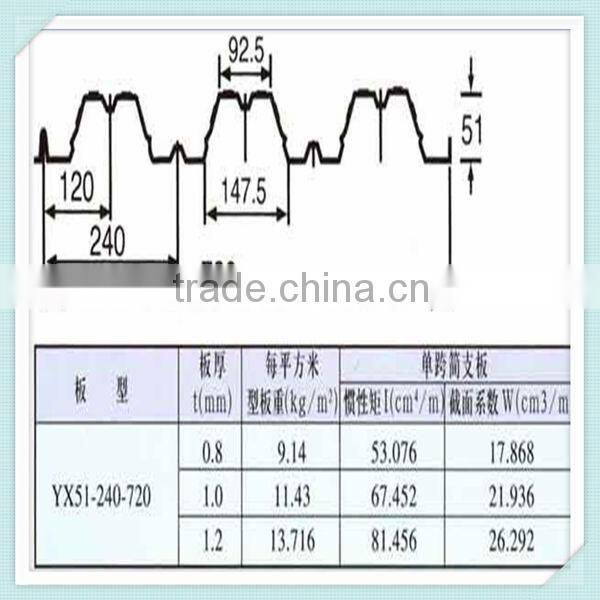

Tile drawing
Machine parameter
1.Working process | |
Decoiler , Main roll forming system, Pressing device, Cutting device, Hydraulic station, PLC control | |
2. The general machine parameter | |
Suitable roll forming material | galvanized steel sheet |
Machine Sizes | 23000×1500×800mm |
Main motor power | 22KW with Cycloidal reducer |
Hydraulic station power | 4KW |
Roll forming thickness | 0.8-1.2mm |
Diameter of forming principal axis | Φ80mm |
Forming material expand width | 1000mm |
Roll forming electric tension | 380V 3phase 50HZ or as the customer's requirements |
Material of forming roller | High grade 45# forged steel plated with hard chrome plating |
Roll forming speed | 8-10m/min |
Material of cutting | Cr12 mould steel with quenched treatment |
Kind of drive | 1.2 inch chain link bearing model 6210 |
Roll rows | 29 Rollers |
3. Automatic PLC ( The PLC can be designed according to your requests) | |
Computer | Taiwan’s “DELTA” |
Encoder | Wuxi’s “REP” |
Switch | CHNT |
Transducer | Guangzhou's "Sanjing"or japan's "OMRON" |
4. Service | |
We provide the technical support for whole life. If any parts go broken and not artificial damage, we will send you new ones for free. We will arrange the technician to go abroad if it’s necessary. But the buyer should take all the cost, including Visa, Roundtrip ticket, suitable accommodation and pay the service fee to the technician with $50/day. | |
5. The Production Process | |
Decoiler→Flating→Feeding & punching→Forming→cut-to-length →Colletion (Finished goods) | |
6. Payment | |
T/T( 30% by T/T in advance, the rest 70% to be payed by T/T after you inspect the machine in seller's factory before delivery ), L/C | |
7. About Us | |
Our company have the series of coloured steel roll forming machine, including moding machine, concealed roof sheeet machine, flat sheet bending machine and so on | |

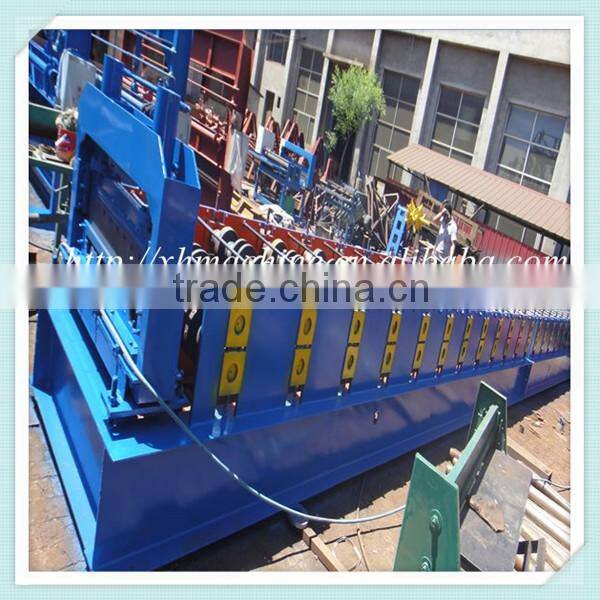

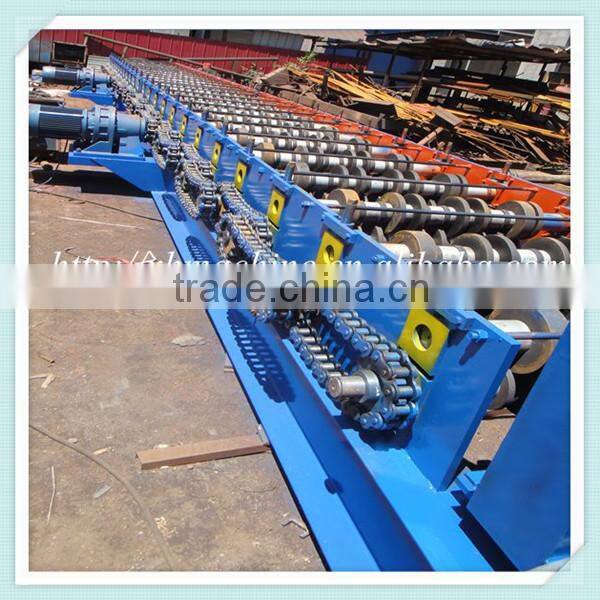

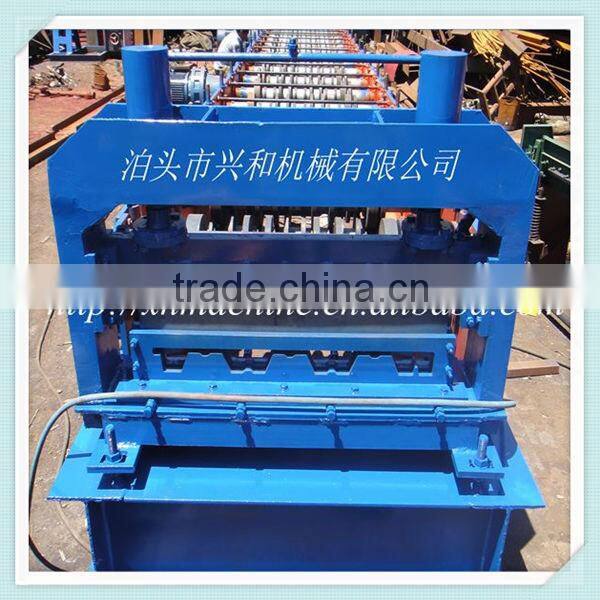

Machine shows

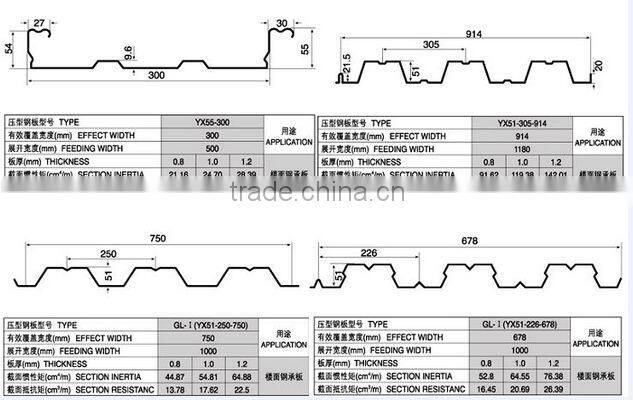

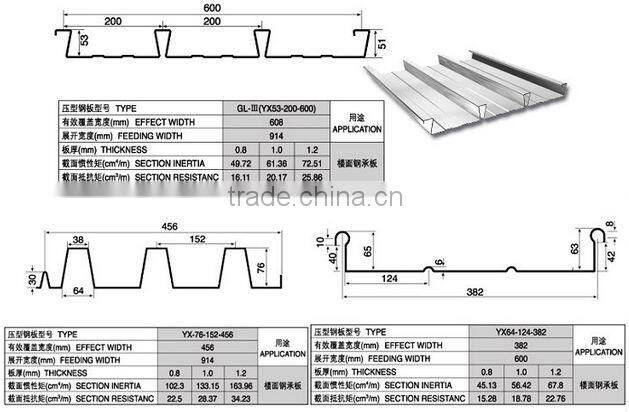

Other tiles for choice

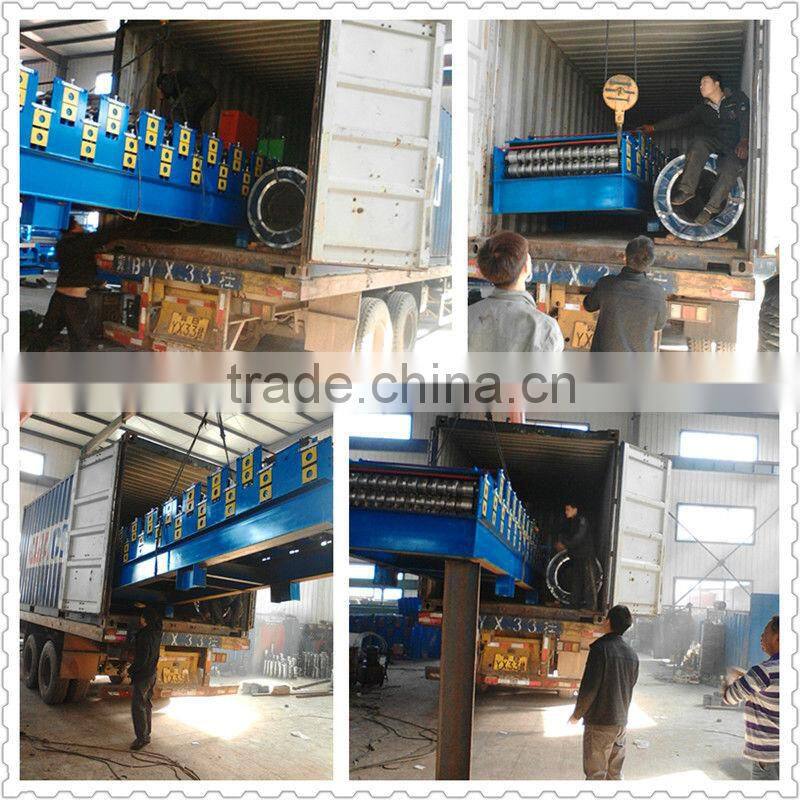

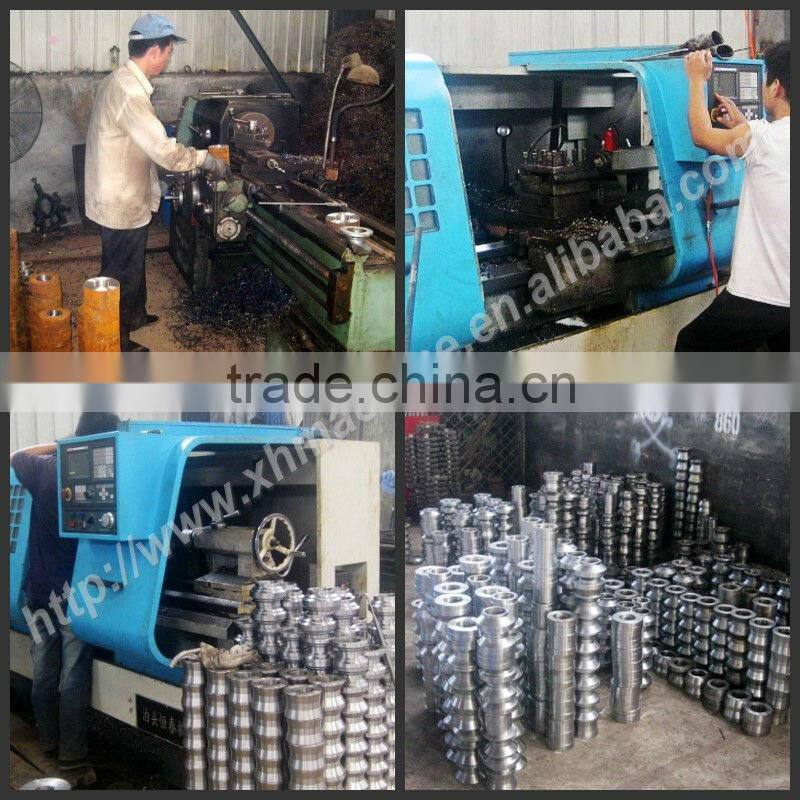

Company shows
Botou Xinghe Roll Forming Machinery Co.,Ltd. is located in botou - the home of roll forming machine . With 8 years of production experience ,we can offer you good quality machine at favourable price .
Our main products as below:
1.Roof and wall panel forming machines 2.Corrugated tile roll forming machine
3.Double layer roll-forming machine4.Joint hidden roll forming machine
5.Downspout and waterspout roll forming machine6.Glazed tile roll forming machine
7.Sandwich panel roll forming machine
Welcome Your Inquiry !!!
