Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | RAINBOW | Model Number | RM-100L | |
| Processing Types | Alcohol | Voltage | Request | |
| Power(W) | 0-80KW | Dimension(L*W*H) | Depends | |
| Weight | 200KG-2000KG | Certification | CE ISO | |
| Warranty | 3 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
100L beer brewery equipment/beer brewing equipment/brewhouse/fermenters
Specifications
1. Two or three vessels brewhouse:
mash/lauter tank, kettle/whirlpool tank
mash/brew kettle, lautering tun/whirlpool
2. Steam or electric heating,
3. Six fermenters
4. CIP Cleaning system
5. Cooling compressor and glycol tank
6. PLC/semi-auto controlling system, separate control for each fermenters
Here follows is the parameter of 100L brewery, please check for reference.
Items | Equipment | Specification | Quantity |
Malt miller | Malt miller | 200kg/hour | 1 |
Brewhouse system | Mash&lautering tun | 100L | 1 |
Brew kettle&whirlpool | 100L | 1 | |
Hot liquid tank | 100L | 1 | |
Wort oxygenator |
| 1 | |
Plate heat exchanger | 2m² | 1 | |
Pump | 3m³/h | 2 | |
Working platform |
| 1 | |
Fermentation system | Fermenter | 100L | 6 |
Yeast adding tank | 10L | 1 | |
Cooling system | Glycol water tank | 300L | 1 |
Cooling compressor | 3hp | 2 | |
Pump | 3m³/h | 1 | |
Filter system | Kieselguhr filter machine |
| 1 |
Brite beer tank |
| 1 | |
CIP washing system | Alkali tank | 30L | 1 |
Sterilization tank | 30L | 1 | |
Pump | 3m³/h | 1 | |
Control system | Digital display controlling system | 1 | |
Spare parts | All spare parts | ||
Heating source: electricity, gas fired heating or steam Material: stainless steel 304 or copper Warranty period: 36 months for main equipment | |||

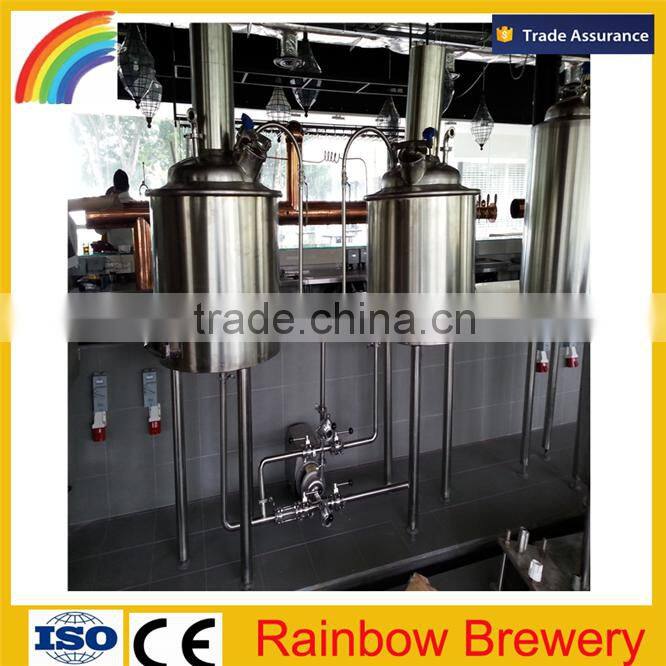

Brewhouse
Two or Three Vessels combination:
Mash/Lauter tun,
Brew Kettle/Whirlpool tun
hot water tank
Mash/Lauter tun installed mash agitator, boiling with whirlpool functions,
Installed rakers and false buttom for grains separation
Usage: Mashing, mixing-stainless steel mixer driven by variable-frequency motor,
lautering-separation of mash grains from wort during wort producing process.
Brew/whirlpool tun, wort boiling and make wort whirlpooling
Usage: wort boiling and whirlpooling
Wort Whirlpool-sanitary centrifugal mash pump activate the whirlpooling.
Hot water tank-water heating and hot water storing/preparation
Heating: electricity gas fired or stream
Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm
Insulation: PU100mm
Heating: electricity gas fired or stream
Top domed lighted sight glass
Top domed manway door/glass manway door
Rectangle side manway door used for manual grains draining and sanitation operation
TC temperature sensor PT100, connected to the controller for automatic temperature controlling
Sanitary centrifugal mash pump
Top dome wort/water inlet
Bottom mash inlet/outlet
Quick installed spray CIP balls(X2)
Outlet/drainage connection DN40
Inlet connection DN32

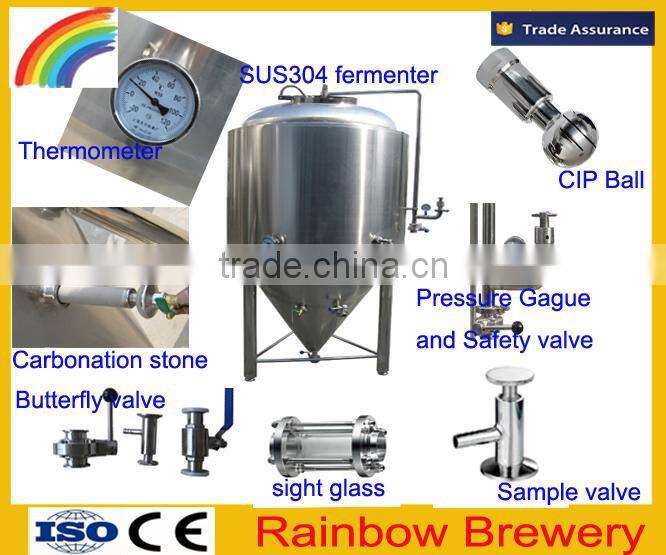

Fermenter tanks
Usage: fermentation, maturation and storage
Top domed with conical bottom
Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm
Insulation: PU100mm
Top/side manway
Cone bottom, 60 degree
Pressure gauge
Safety/vacuum valve
Working pressure: 0.15Mpa
Testing pressure: 0.3Mpa
Cooling jackets on both cylinder and cone
Inside 360 rotating CIP ball
Thermowell, 8mm
Temperature sensor, Model: PT100
Wort piping and butterfly valves, ø32mm
Drainage piping and butterfly valve, ø38mm
3 legs with adjustable bolts
Cooling Unit
Glycol water tank
-Material:
Inside wall, SUS 304, 3mm Outside wall, SUS 304, 1.5mm Insulation, PU, 100mm
-Cone bottom, 160 degree
-Thermowell, 8mm
-Temperature sensor, Model: PT100
-Water supply piping: ø32mm
-Drainage piping and butterfly valve, ø32mm
Including all pipes, fitting, insulation materials
Cooling compressor
-Scroll copeland type compressor
-Capacity: 3-7hp according to the capacities
-Refrigerant: R404A
CIP Unit
-Capacity: 30-100L
-SUS 304 material
-Water pump, 3t/h
Controlling Unit
Digital display control system
-Brewhouse temp. and time setting/controlling
-Fermenting temp. setting and controlling
-Cooling temp. setting and controlling
-All pump, agitators control
-All themocouple, solenoid valves control
Pipe line for brewhouse | SUS304 |
Measuring cylinder | SUS304 |
Butterfly valve | Ø32 |
Butterfly valve | Ø38 |
Sight glass | Ø32 |
Saccharimeter | 0-10; 10-20 |
Spent grains harrow | SUS 304 |
Fermenter’s safety valve | ø32 |
Fermenter’s Sample valve | ø32 |
Pressure gauge | 0-0.6Mpa |
Pipe line for cooling unit | SUS 304 |
Cooling water solenoid valve | ø32 |
Cooling pipe insulation |
|
Expansion valve for cooling compressor |
|
Control box cable |
|
Signal wire |
|
SIEMENS frequency convertor | V20 |
Electric relay | Omron |
Temperature sensor | PT100 |
1 | Free consultation service before, during, and after sales; |
2 | Turnkey brewery projects plan and design services; |
3 | Layout plan in 3D or CAD drawings of your brewery; |
4 | Management of long distance shipping from seller's factory to named port or station by buyer; |
5 | Professional engineers going abroad for the installation,debugging,repairing,and training; |
6 | Provide three years complete warrantee for main parts |
7 | Brewing technology,brewing formula,can be offered available |
Considerate servise | We can provide services such as product design (we recommend suitable equipment as per your budget), beer tank layout, installation and training of beer fermentation... |
Other Equipment | We also provide bottle filling washing machine keg filling washing machine label machine keg and steam boiler as per your requirement |
Guarantee | 36 months for the main tank |
Jinan Rainbow Machinery Co., Ltd. is a professional manufacturer of beer equipment. We are specialized in professional
design, manufacturing, installation and commissioning of various beer equipments and supporting
facilities. With advanced technology, good quality and after-sale service, our products have been highly praised by our customers from many countries.
Reference Photos
