Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | RAINBOW | Model Number | RM-200L | |
| Processing Types | Alcohol | Voltage | Request | |
| Power(W) | 0-80KW | Dimension(L*W*H) | Depends | |
| Weight | 200KG-2000KG | Certification | CE ISO | |
| Warranty | 3 Years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
200L beer brewery equipment/beer brewing equipment/fermenting tanks
Specifications
1. Two or three vessels brewhouse:
mash/lauter tank, kettle/whirlpool tank
mash/brew kettle, lautering tun/whirlpool
2. Steam or electric heating,
3. Six fermenters
4. CIP Cleaning system
5. Cooling compressor and glycol tank
6. PLC/semi-auto controlling system, separate control for each fermenters
Here follows is the parameter of 200l brewery, please check for reference.
Items | Equipment | Specification | Quantity |
Malt miller | Malt miller | 200kg/hour | 1 |
Brewhouse system | Mash tun&lauter tun | 200L | 1 |
Brew kettle&whirlpool tank | 200L | 1 | |
Hot liquid tank | 200L | 1 | |
Plate heat exchanger | 2m² | 1 | |
Wort oxygenator |
| 1 | |
Pump | 3t/h | 1 | |
Working platform |
| 1 | |
Fermentation system | Fermenter | 200L | 6 |
Yeast adding tank | 20L | 1 | |
Cooling system | Glycol water tank | 400L | 1 |
Cooling compressor | 3hp | 1 | |
Pump | 3t/h | 1 | |
CIP washing system | Alkali tank | 50L | 1 |
Sterilization tank | 50L | 1 | |
Pump | 3t/h | 1 | |
Control system | Digital display control system | 1 | |
Spare parts | All spare parts | ||
Heating source: electricity, gas fired heating or steam
Material: stainless steel 304 or copper
Warranty period: 36 months for main equipment

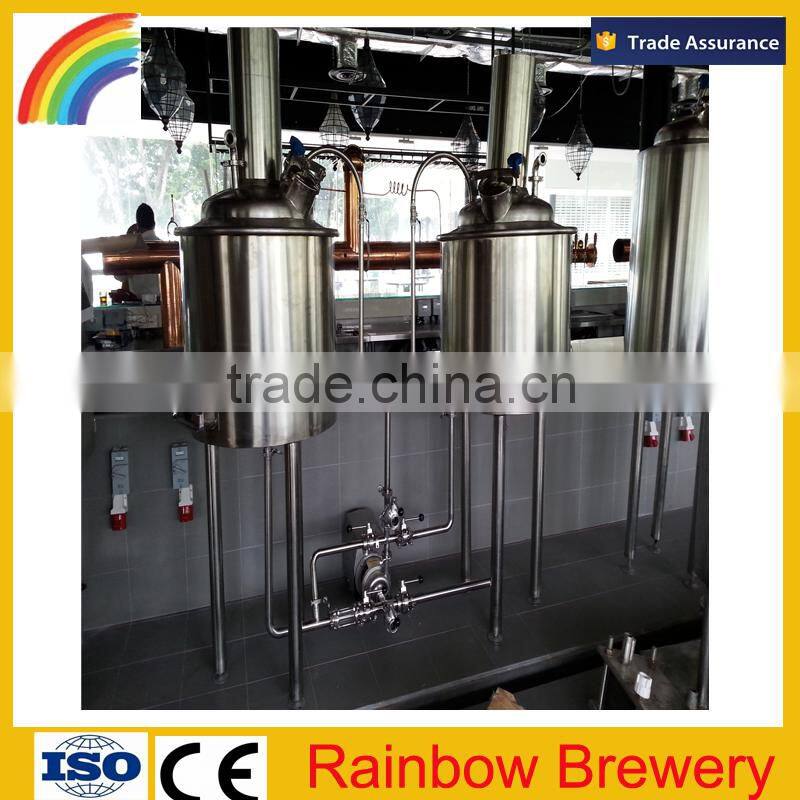

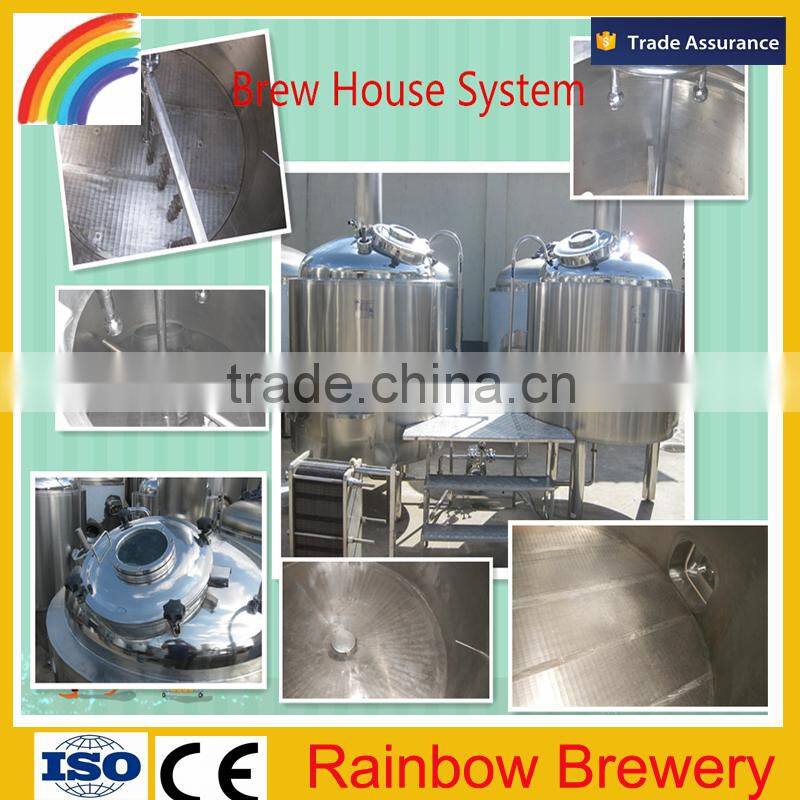

Brewhouse system
Two or Three Vessels combination:
Mash/Lauter tun,
Brew Kettle/Whirlpool tun
hot water tank
Mash/Lauter tun installed mash agitator, boiling with whirlpool functions,
Installed rakers and false buttom for grains separation
Usage: Mashing, mixing-stainless steel mixer driven by variable-frequency motor, lautering-separation of mash grains from wort during wort producing process.
Material: SUS304, inner thickness 3mm, outer thickness 1.5,2,3mm
Insulation: PU100mm
Heating: electricity gas fired or stream
Top domed lighted sight glass
Top domed manway door/glass manway door
Rectangle side manway door used for manual grains draining and sanitation operation
Quick installed temperature sensor PT100, connected to the controller for automatic temperature controlling
Sanitary centrifugal mash pump
Top dome wort/water inlet
Bottom mash inlet/outlet
Quick installed spray CIP balls(2)
Outlet/drainage connection DN40
Inlet connection DN32
Brew/whirlpool tun, wort boiling and make wort whirlpooling
Usage: wort boiling and whirlpooling
Wort Whirlpool-sanitary centrifugal mash pump activate the whirlpooling.
Heating: electricity gas fired or stream
Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm
Insulation: PU100mm
Top domed lighted sight glass
Top domed manway door/glass manway door
Quick installed temperature sensor PT100, connected to the controller for automatic temperature controlling
Sanitary centrifugal mash pump
Top dome wort/water inlet
Bottom mash inlet/outlet
Quick installed spray CIP balls(2)
Outlet/drainage connection DN40
Inlet connection DN32
Hot water tank-water heating and hot water storing/preparation
Heating: electricity gas fired or stream
Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm
Insulation: PU100mm
Pressure release/vacumm valve place on the dome for pressure discharging for operation personal safety
Quick installed temperature sensor PT100, connected to the controller for automatic temperature controlling
Top domed manway door/glass manway door
wort cooling: Two stages or single stage Plate heat exchanger
wort pump:food grade sanitary and high efficiency wort pump
360°spray ball cleaning with high efficiency
Flow sight glass
All necessary pipings, pipes and fittings

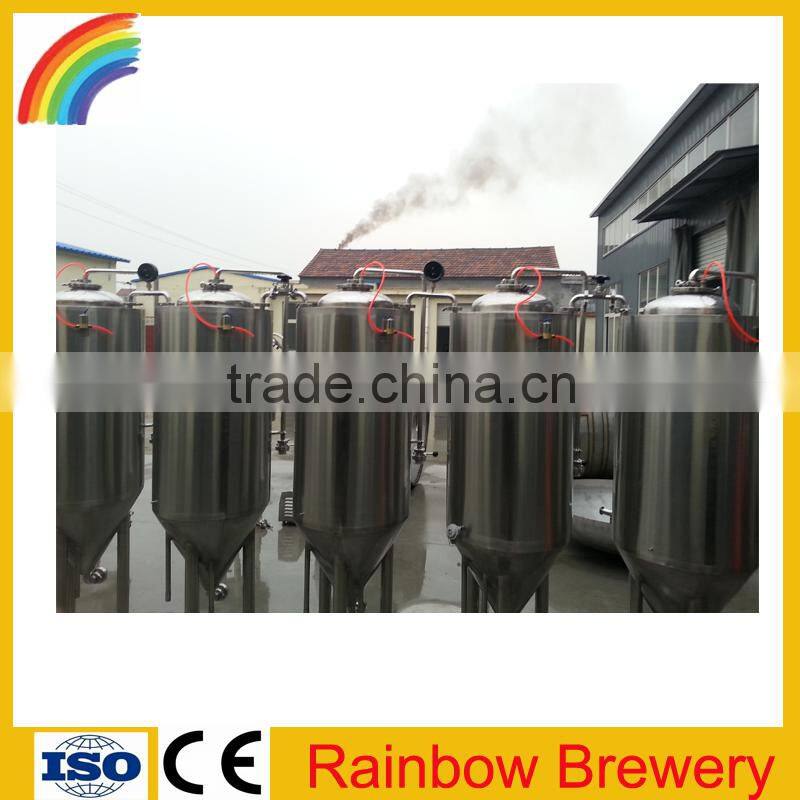

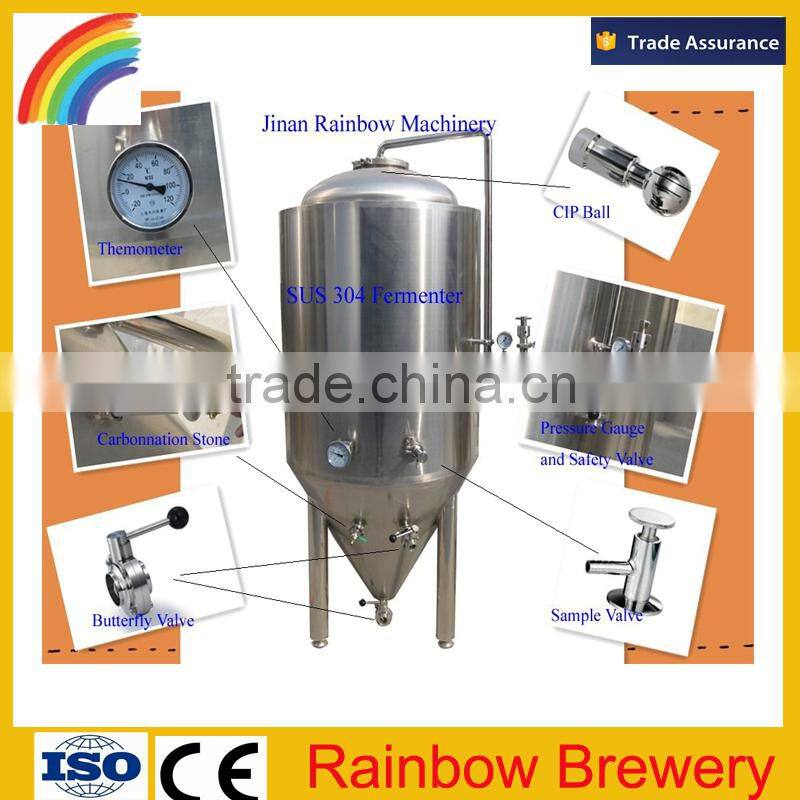

Fermenter tanks
Usage: fermentation, maturation and storage
Top domed with conical bottom
Material: SUS 304, inner thickness 3mm, outer thickness1.5,2,3mm
Insulation: PU100mm
Top manway
Cone bottom, 60 degree
Pressure gauge
Safety/vacuum valve
Working pressure: 0.15Mpa
Testing pressure: 0.3Mpa
Cooling jackets on both cylinder and cone
Inside 360 rotating CIP ball
Thermowell, 8mm
Temperature sensor, Model: PT100
Wort piping and butterfly valves, ø32mm
Drainage piping and butterfly valve, ø38mm
3 legs with adjustable bolts Cooling Unit

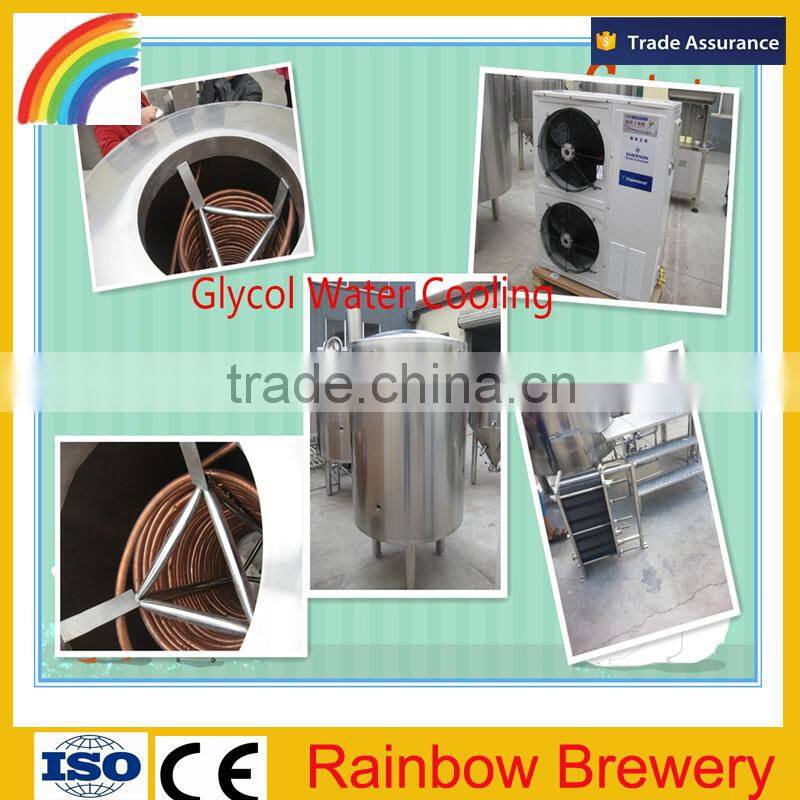

Glycol water tank
-Material:
Inside wall, SUS 304, 3mm Outside wall, SUS 304, 1.5mm Insulation, PU, 100mm
-Cone bottom, 160 degree
-Thermowell, 8mm
-Temperature sensor, Model: PT100
-Water supply piping: ø32mm
-Drainage piping and butterfly valve, ø32mm
Including all pipes, fitting, insulation materials
Cooling compressor
-Scroll copeland type compressor
-Capacity: 3-7hp according to the capacities

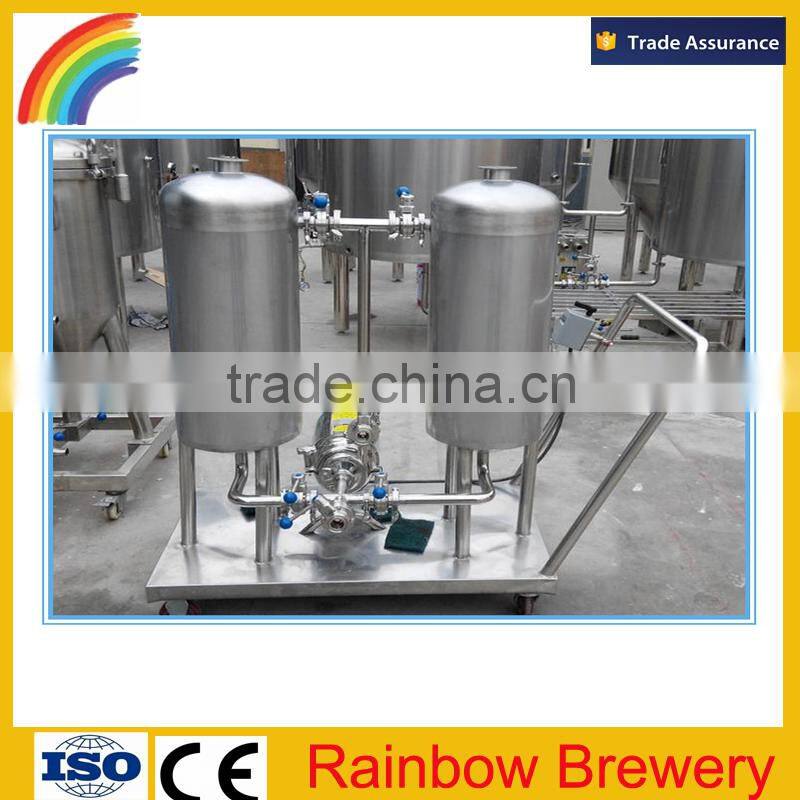

-Refrigerant: R404A CIP Unit
-Capacity: 30-100L
-SUS 304 material
-Water pump, 3t/h

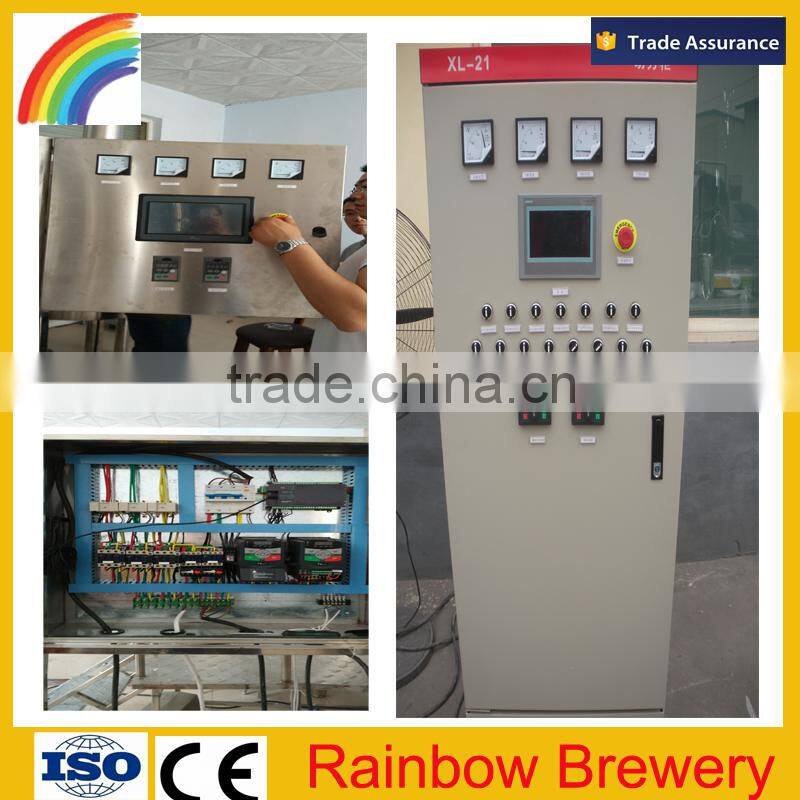

Controlling Unit
Digital display control system
-Brewhouse temp. and time setting/controlling
-Fermenting temp. setting and controlling
-Cooling temp. setting and controlling
-All pump, agitators control
-All themocouple, solenoid valves control
Pipe line for brewhouse | SUS304 |
Measuring cylinder | SUS304 |
Butterfly valve | Ø32 |
Butterfly valve | Ø38 |
Sight glass | Ø32 |
Saccharimeter | 0-10; 10-20 |
Spent grains harrow | SUS 304 |
Fermenter’s safety valve | ø32 |
Fermenter’s Sample valve | ø32 |
Pressure gauge | 0-0.6Mpa |
Pipe line for cooling unit | SUS 304 |
Cooling water solenoid valve | ø32 |
Cooling pipe insulation |
|
Expansion valve for cooling compressor |
|
Control box cable |
|
Signal wire |
|
SIEMENS frequency convertor | V20 |
Electric relay | Omron |
Temperature sensor | PT100 |
1.Professional Beer Equipment manufacturer
2.Professional technical engineers & dedicated service teams.
3.Complete quality control and management systems
4.3Years After-sales services for our machines.
5.Complete beer line to meet different capacities and all kinds of beer
6.Customize machine can be offered(voltage,material,dimension,heating source and so on)
1 | Free consultation service before, during, and after sales; |
2 | Turnkey brewery projects plan and design services; |
3 | Layout plan in 3D or CAD drawings of your brewery; |
4 | Management of long distance shipping from seller's factory to named port or station by buyer; |
5 | Professional engineers going abroad for the installation,debugging,repairing,and training; |
6 | Provide three years complete warrantee for main parts |
7 | Brewing technology,brewing formula,can be offered available |
