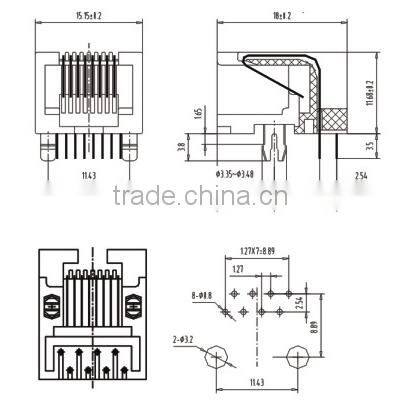

RJ45 Modular Pcb Network Connector PCB Jack 8P LAN Connector
- Ningbo /Shanghai
You May Like
Product Details

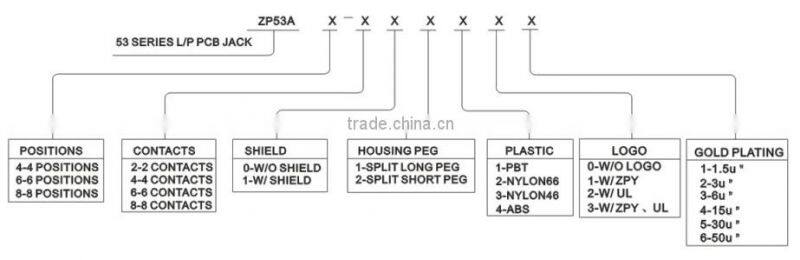

| Place of Origin | Zhejiang, China | Model Number | ZP53A | |
| Application | PCB | Gender | Female |
Product Description
Specifications
1.VOLTAGE RATING : 125 VAC RMS.2.CURRENT RATING : 1.5AMP.
3.CONTACT RESISTANCE : 30 MILLINHMS MAX.
material
1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94-0
PBT,NYLON
2.HOUSING COLOR :BLACK OR OTHERS
3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm
4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u
ELECTRICAL
1.VOLTAGE RATING : 125 VAC RMS.
2.CURRENT RATING : 1.5AMP.
3.CONTACT RESISTANCE : 30 MILLINHMS MAX.
4.INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE : 1000 VAC RMS.
50Hz 1MINUTE
MECHANICAL
1.DURABILITY : 750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER : 1 LB MIN
ENVIRONMENTAL
1.STORAGE : -40°C~80°C
2.OPERATION : 0°C~70°C
