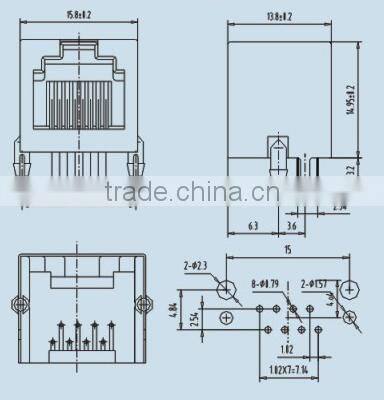

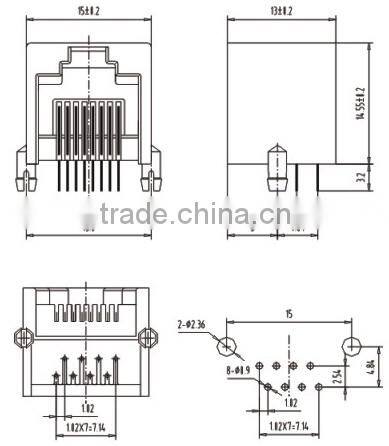

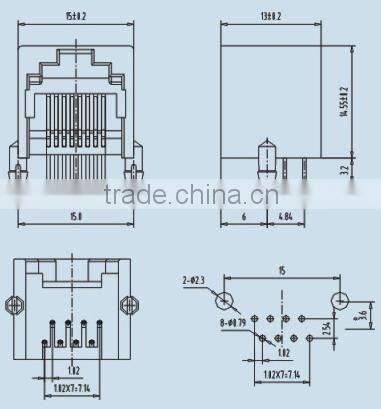

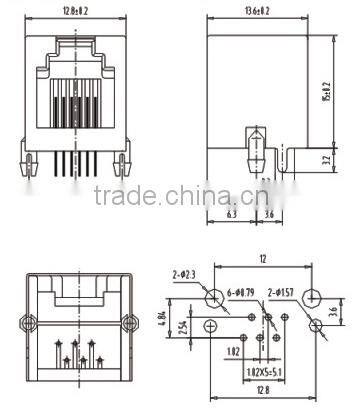

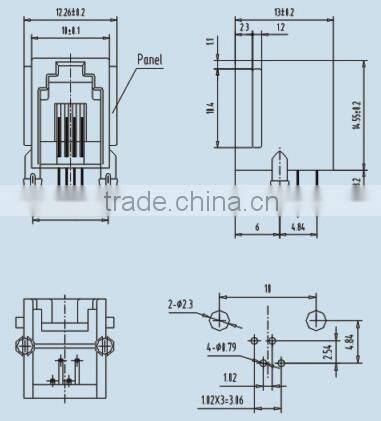

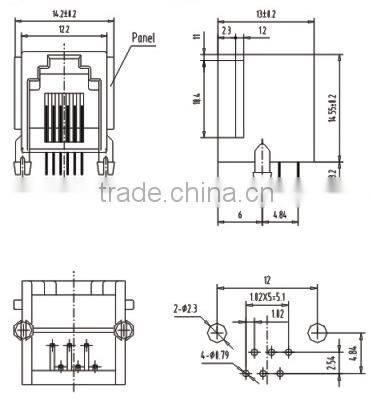

Rj45-8p8c Top Entry Pcb Jack/Network Connector
US$ 0.1 - 10
/ Piece
10 Pieces(Min. Order)
- Ningbo /Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SUNRISING | |
| Model Number | ZP55A | Application | PCB | |
| Gender | Female |
Product Description
Specifications
1.HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBTaaNYLON
2.HOUSING COLOR : BLACK
Specifications
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :30 MILLINHMS MAX.
| ||
| 1.HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0 ABS,PBT,NYLON 2.HOUSING COLOR :BLACK,GRAY,IVORY,WHITE OR OTHERS 3.CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm 4.PLATING : GOLD PLATING OVER NICKEL.GOLD PLATING THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u" 5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED | ||
| ||
| ELECTRICAL 1.VOLTAGE RATING :125 VAC RMS. 2.CURRENT RATING :1.5AMP. 3.CONTACT RESISTANCE :30 MILLINHMS MAX. 4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC 5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS. 50Hz 1MINUTE MECHANICAL 1.DURABILITY :750 CYCLES MIN 2.PCB RETENTION PRE-SOLDER :1 LB MIN ENVIRONMENTAL 1.STORAGE : - 40°C~80°C 2.OPERATION : 0°C~70°C |
