Manufacturer RJ45 Single Port Network Plug Connectors
- Ningbo /Shanghai
- Credit Card PayPal
You May Like
-
Manufacturer RJ45 Single Port Network Plug Connectors
-
Rj45-8p8c Top Entry Pcb Jack/Network Connector
-
Connectors Set Modular Network Telephone Pcb Jack Connectors
-
RJ45 Modular Pcb Network Connector PCB Jack 8P LAN Connector
-
RJ45 Jack With Transformer,Gigarbit Network,RJ45 Modular Connector
-
Side Entry RJ45 Unshield Network Connector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SUNRISING | |

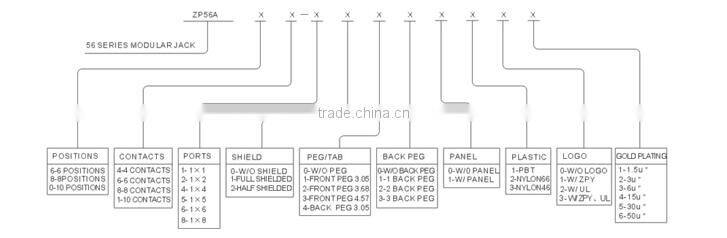

| Model Number | ZP56A | Application | PCB | |
| Gender | Female |
Product Description
Specifications
1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94V-0PBTaaNYLON
2.HIGH QUALITY
MATERIAL
1.HOUSING MATERIAL :GLASS FILLED PLYESTER UL94V-0
PBT,NYLON
2.HOUSING COLOR :BLACK OR OTHERS
3.CONTACT MATERIAL :PHOSPHOR BRONZE φ0.46mm
4.PLATING :GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5.SHIELD :0.23 THICKNESS BRASS WITH NICKEL PLATED
ELECTRICAL
1.VOLTAGE RATING :125 VAC RMS.
2.CURRENT RATING :1.5AMP.
3.CONTACT RESISTANCE :30 MILLINHMS MAX.
4.INSULATION RESISTANCE :500 MEGOHMS MIN @500 VDC
5.DIELECTRIC WITHSTANDING RESISTANCE :1000 VAC RMS.
50Hz 1MINUTE
MECHANICAL
1.DURABILITY :750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER :1 LB MIN
ENVIRONMENTAL
1.STORAGE :-40°C~80°C
2.OPERATION :0°C~70°C
