Bottle water filling and capping machine

FOB Price

USD $1 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Beverage
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Pneumatic
Voltage	380v	Power	5kw
Place of Origin	Jiangsu, China	Brand Name	Hongma
Model Number	XGF	Dimension(LWH)	2300X2200X2200mm
Weight	1300kg	Certification	CE,ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Three-In-One Washing, Filling and Capping
1.Advanced design.
2.Adopt PLC control.
3.Easy and convenient operation.

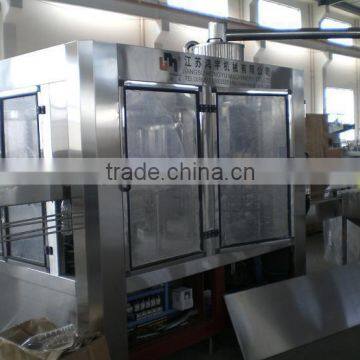

XGF Series Three-In-One Washing, Filling and Capping

Introduction of Production:

XGF Series three in one high speed filling machine is designed for large-scale beverage production. The machine maximum output can reach 36000 bottles per hour. Special filling valve design can precisely control filling liquid level. Sanitarian circulation pipe precise prove production filling circumfluence demand. Entire CIP circumfluence pipe prove rinsing effect. It adopts touch screen which operation is easy and convenient.

Main Technical Specifications

Model	XGF40-40-15	XGF50-50-18	XGF60-60-20	XGF80-80-24
Production Capacity(500ml)	13000-14000	15000-16000	18000-20000	32000-34000
Washing Heads	40	50	60	80
Filling Heads	40	50	60	80
Capping Heads	15	18	20	24
Suitable Bottle Size	Circular or square
Diameter of Bottle	50-90
Height of Bottle	150-310
Compressed Air Pressure	0.3-0.7
Washing Medium	Sterile Water
Washing Pressure	0.25
Power(kw)	7.5	9	11	15
Overall Dimension(mm)	5000x2800x2400	5900x3100x2400	6500x3500x2400	6800x3900x2400
Weight	9000	11000	13000	15000
